Relay Box

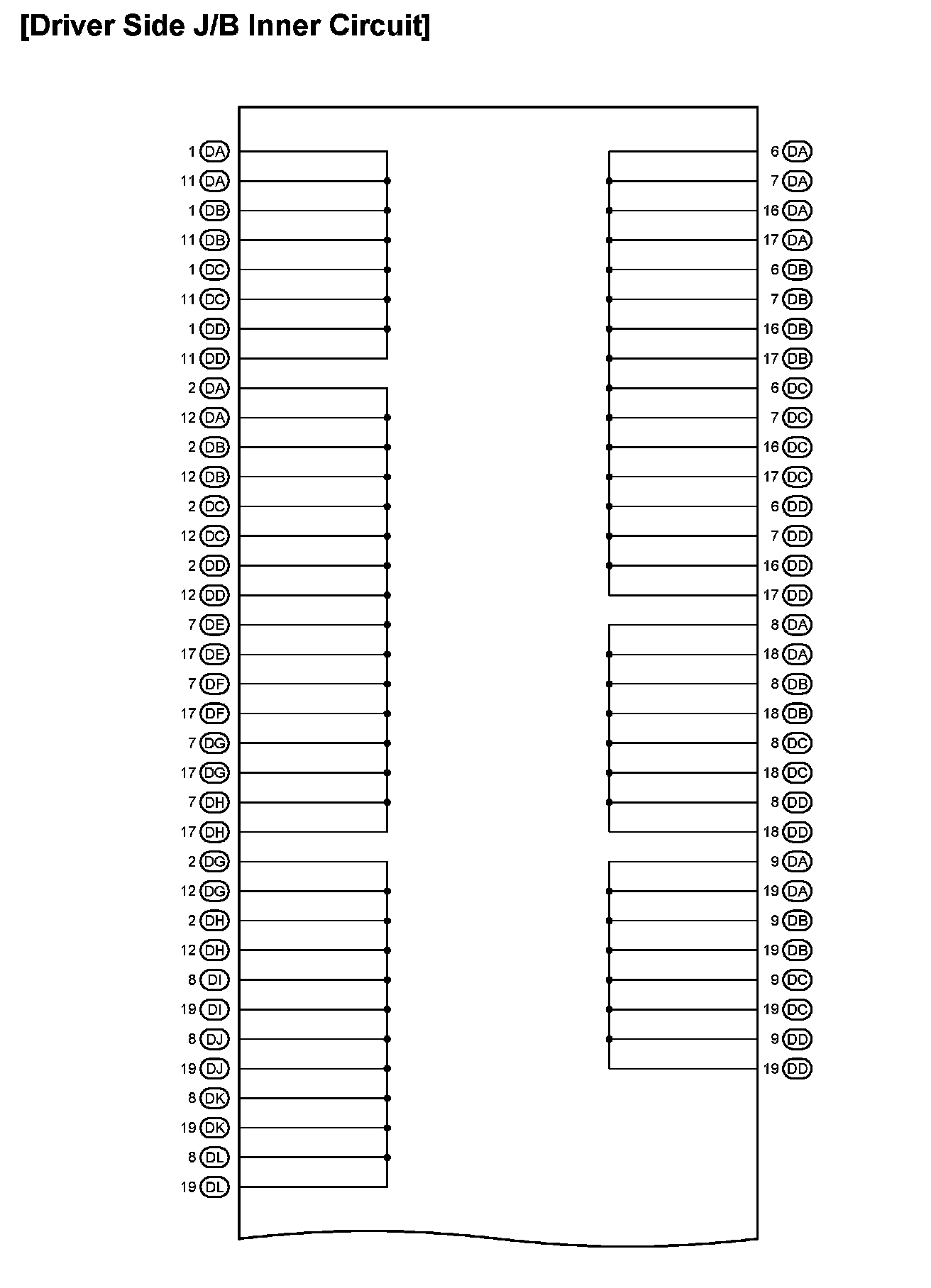

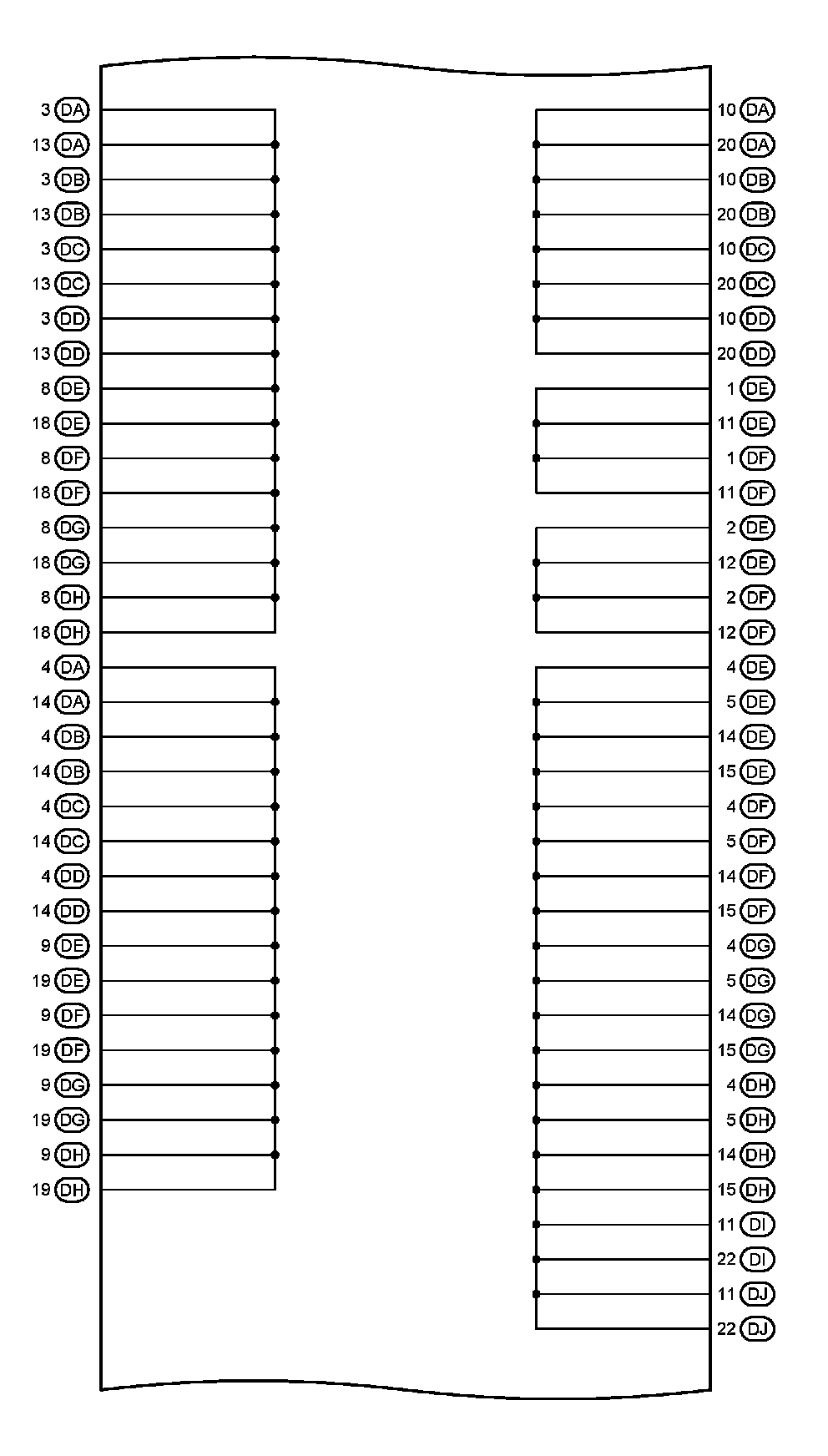

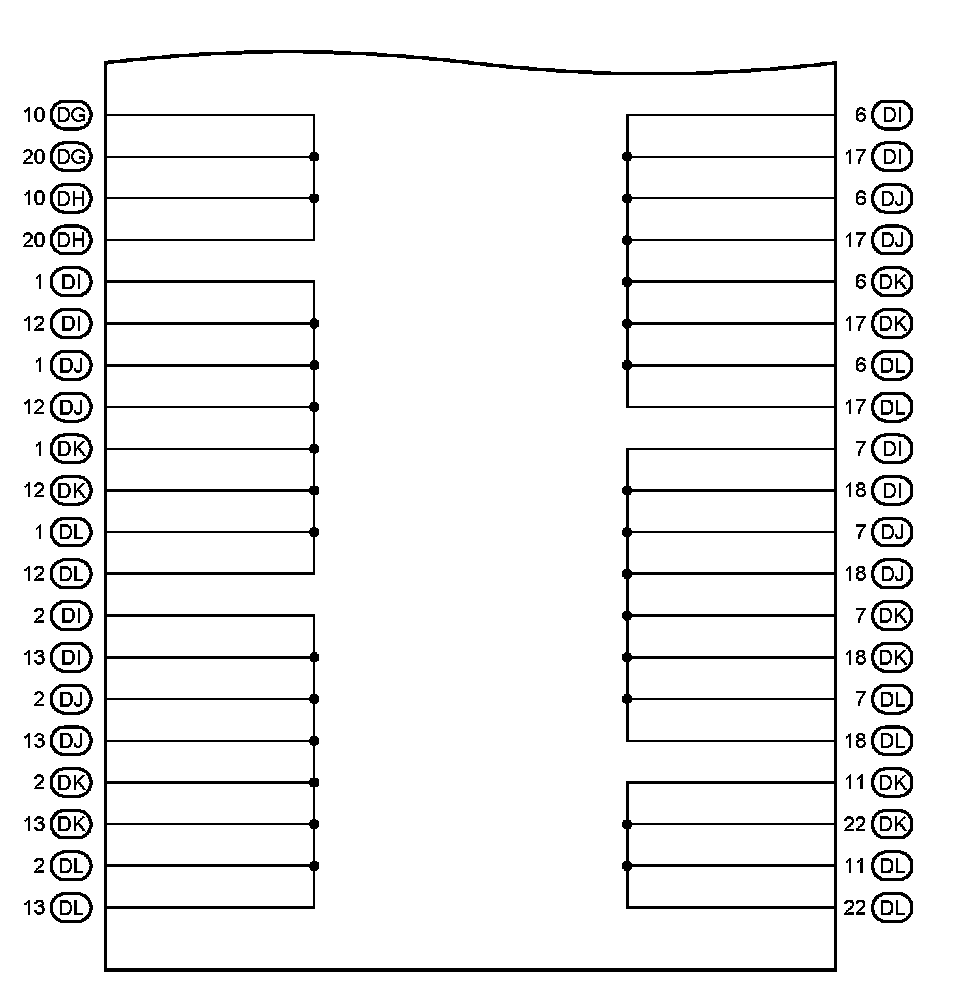

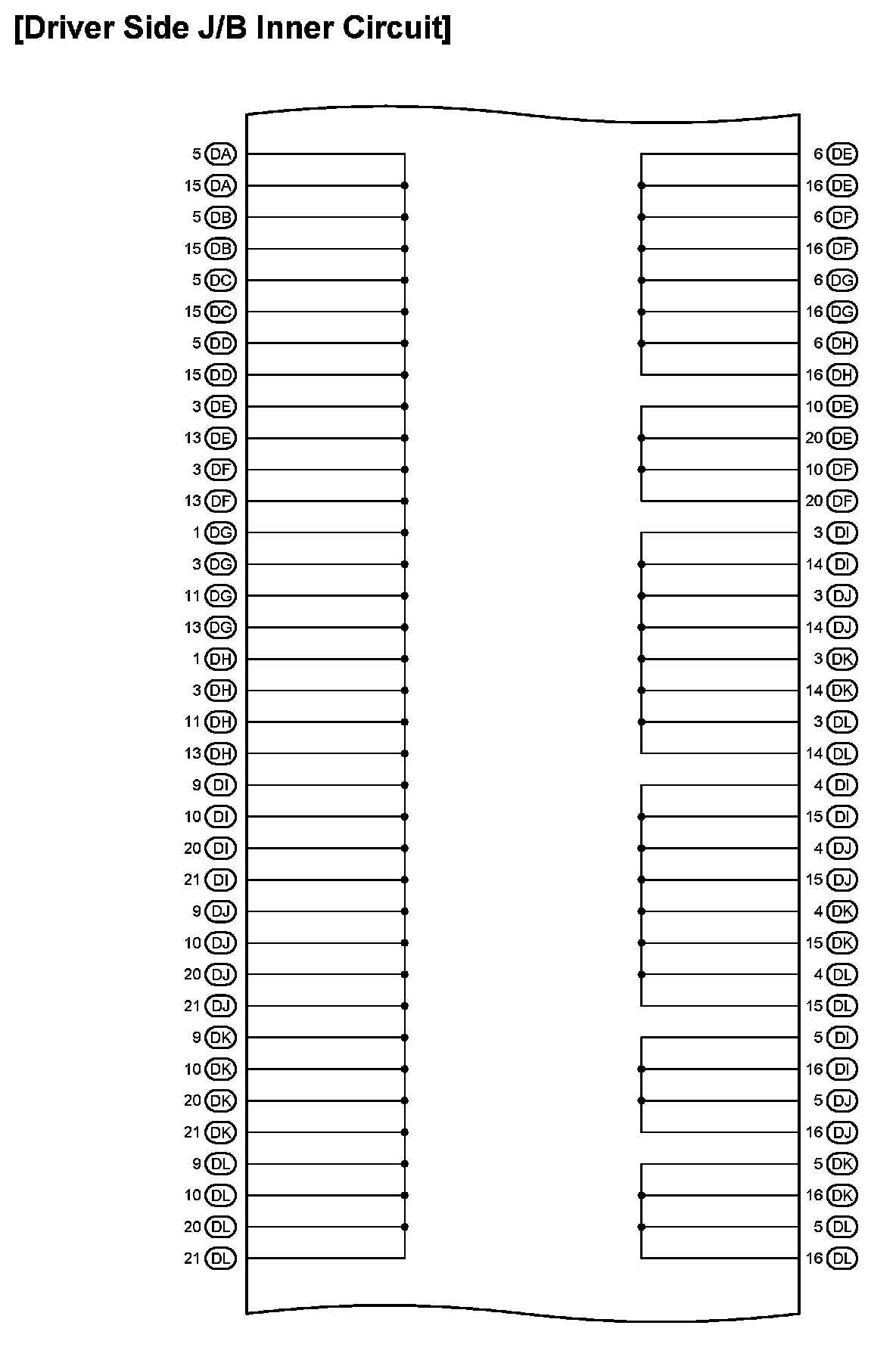

Driver Side J/B Inner Circuit:

Driver Side J/B Inner Circuit:

Driver Side J/B Inner Circuit:

Driver Side J/B Inner Circuit:

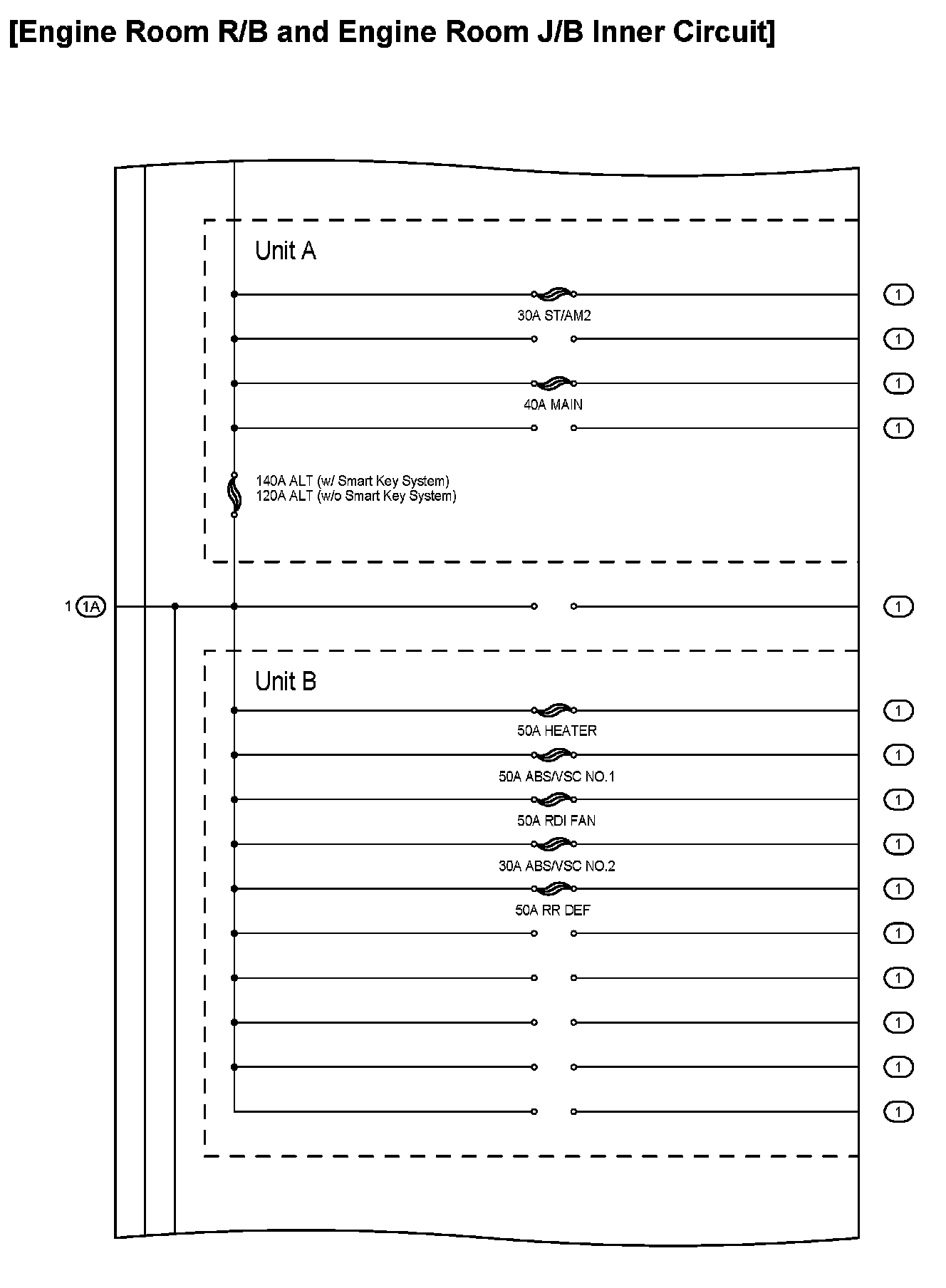

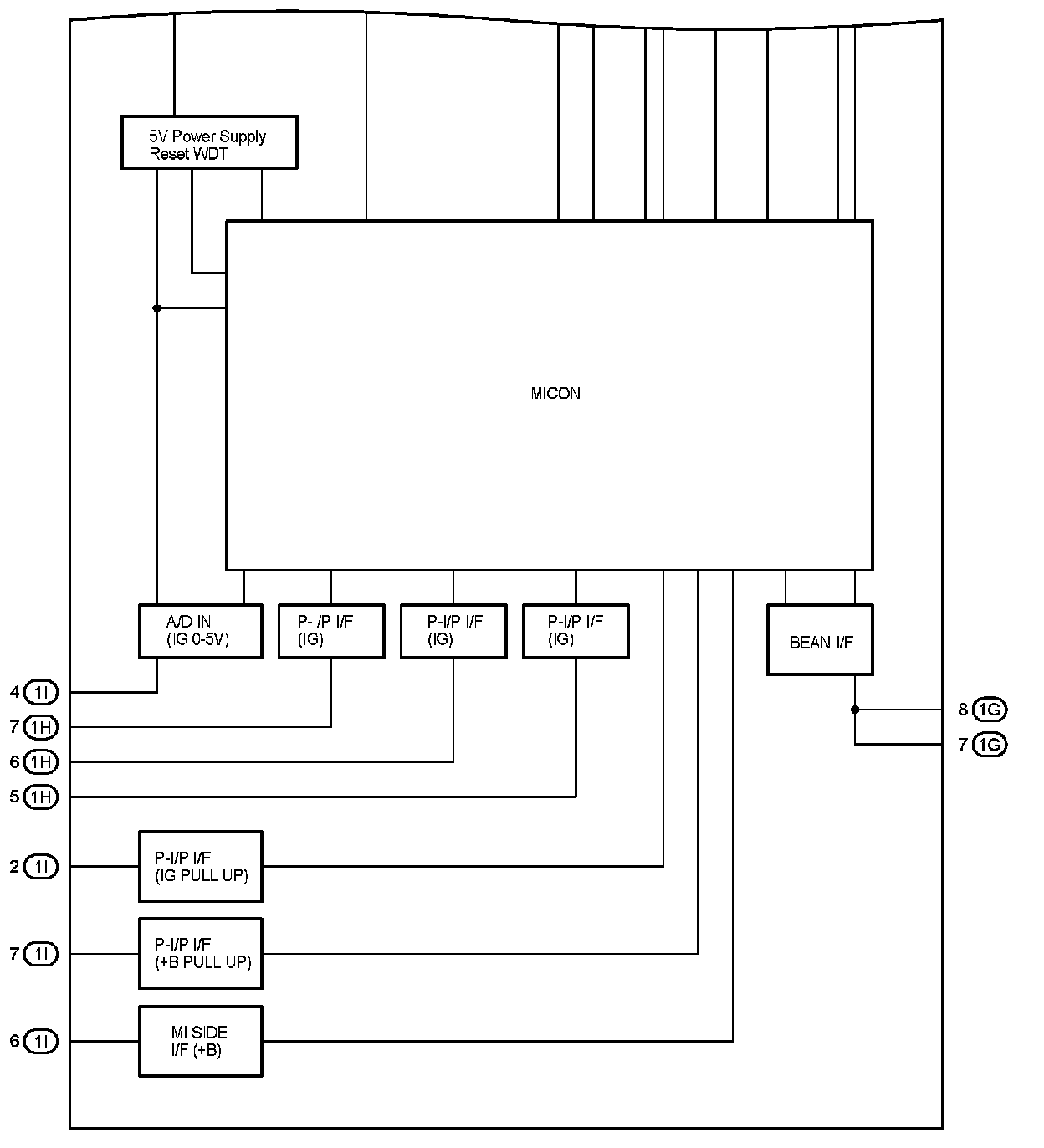

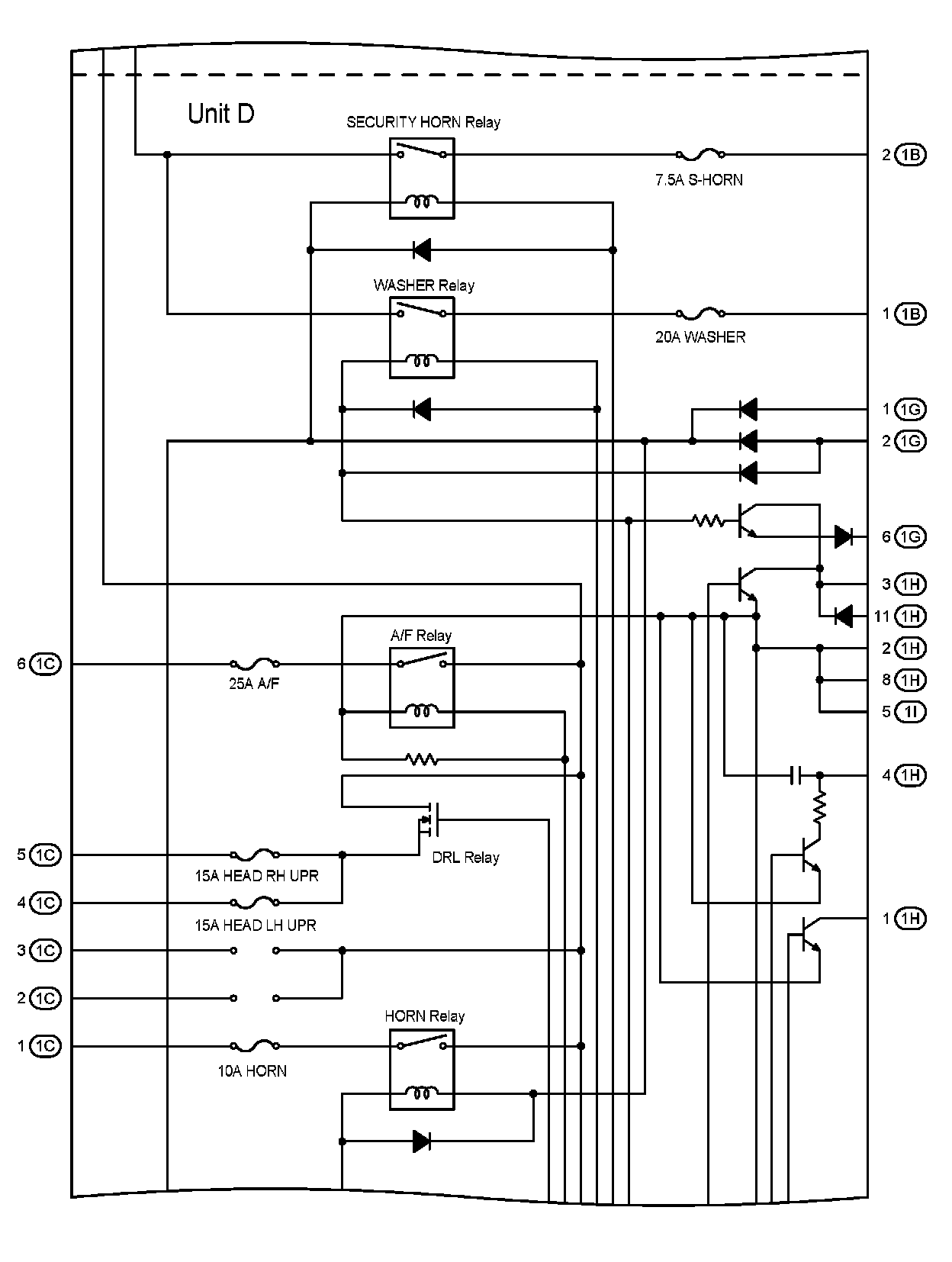

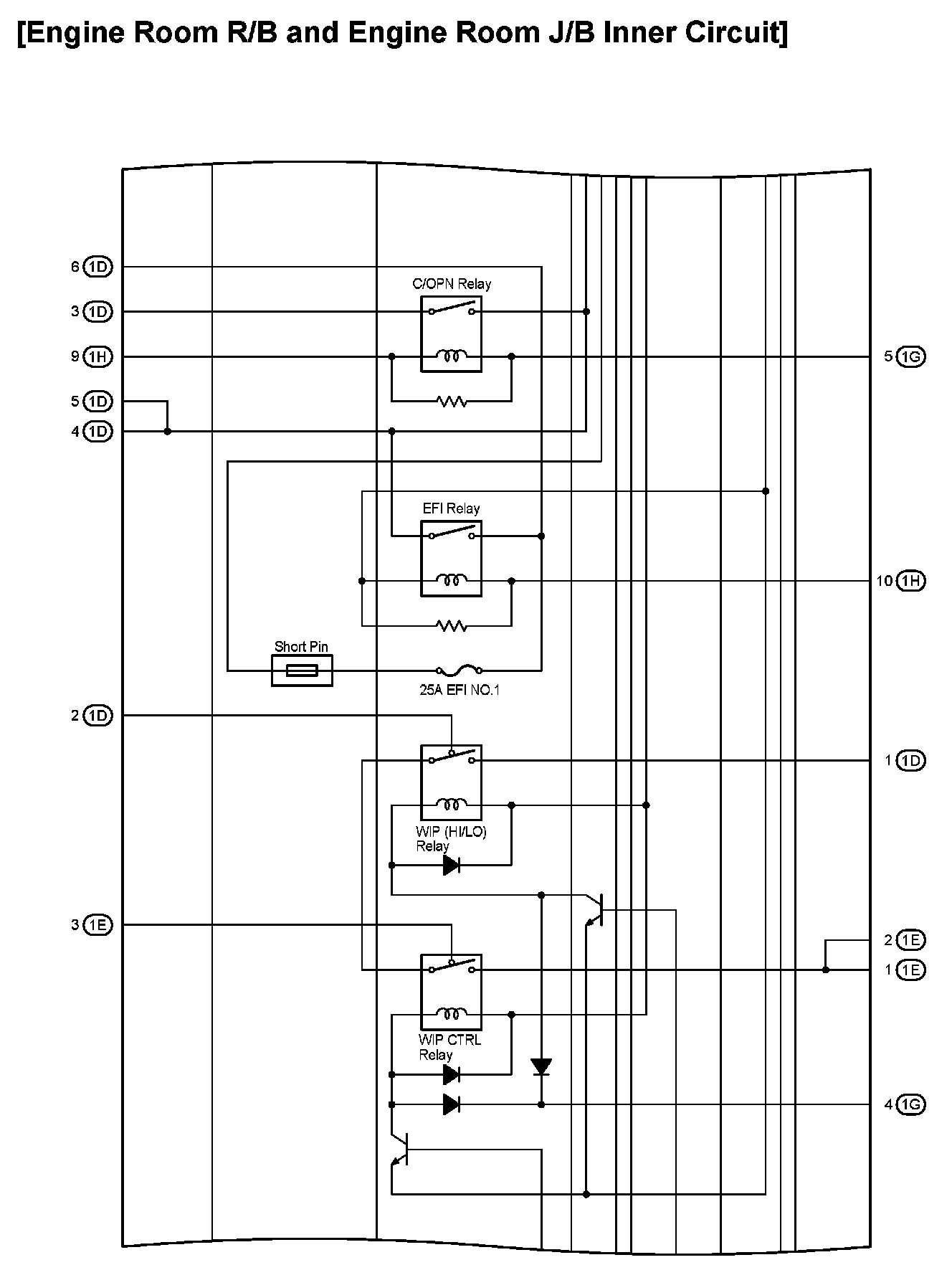

Engine Room R/B And Engine Room J/B Inner Circuit:

Engine Room R/B And Engine Room J/B Inner Circuit:

Engine Room R/B And Engine Room J/B Inner Circuit:

Engine Room R/B And Engine Room J/B Inner Circuit:

Engine Room R/B And Engine Room J/B Inner Circuit:

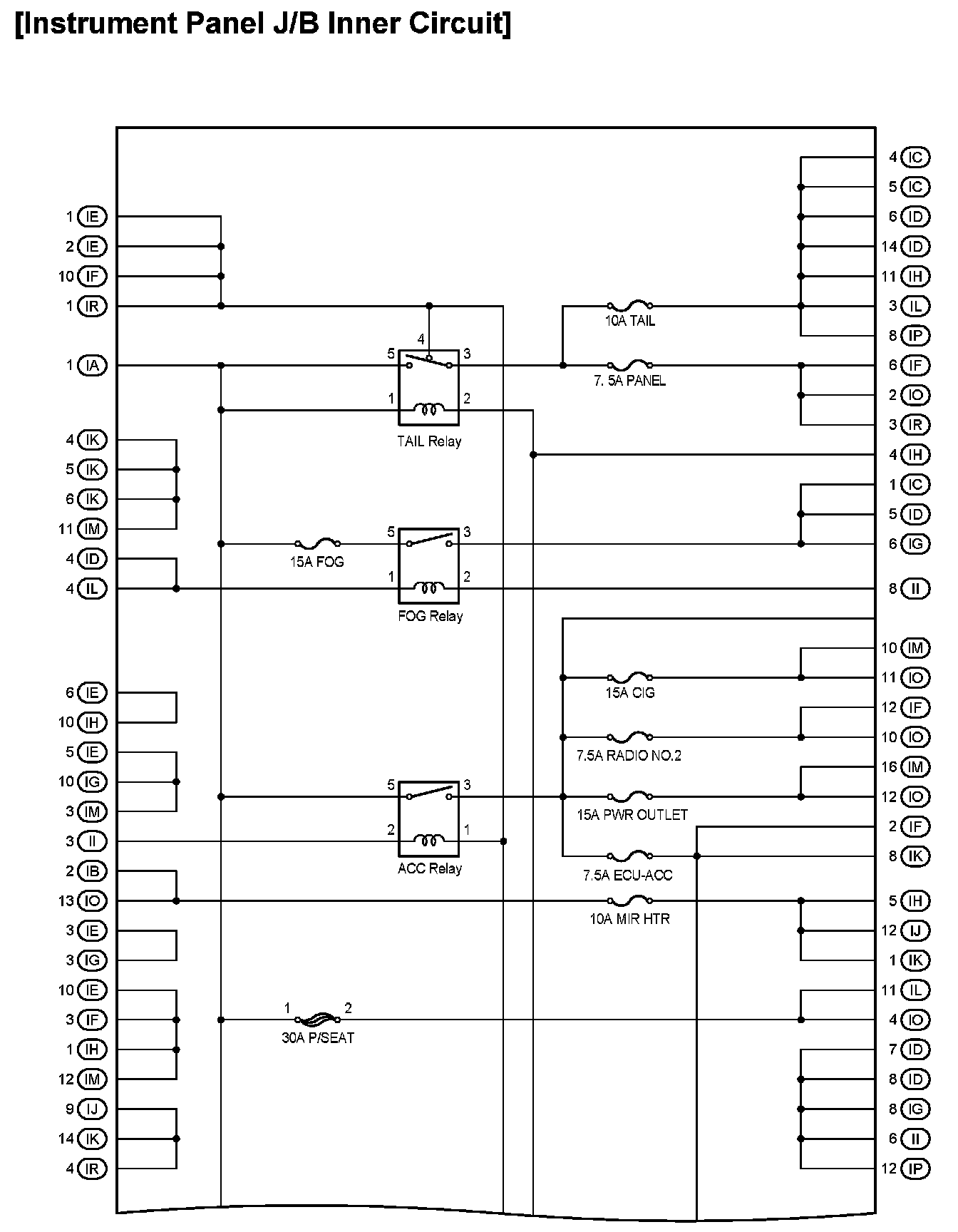

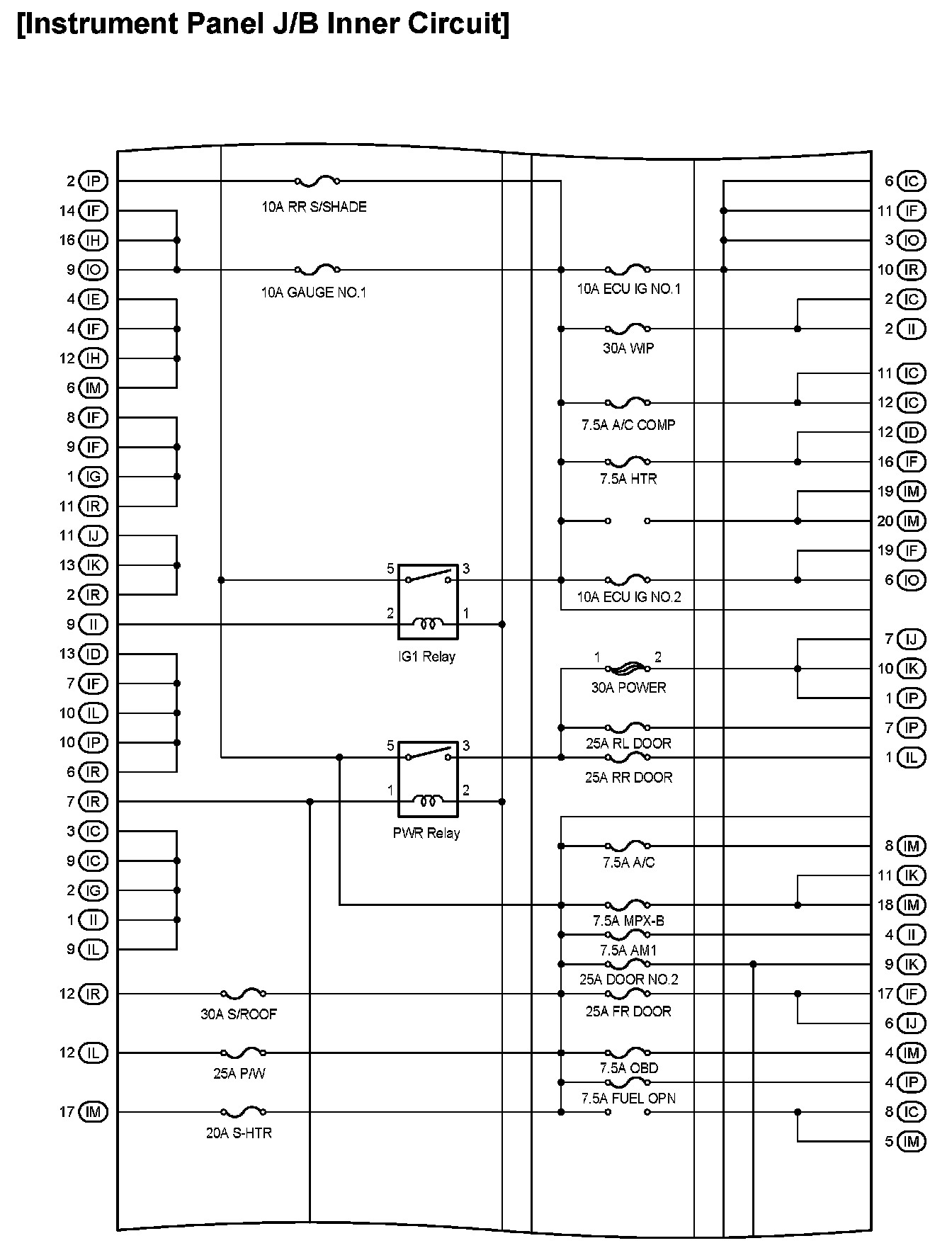

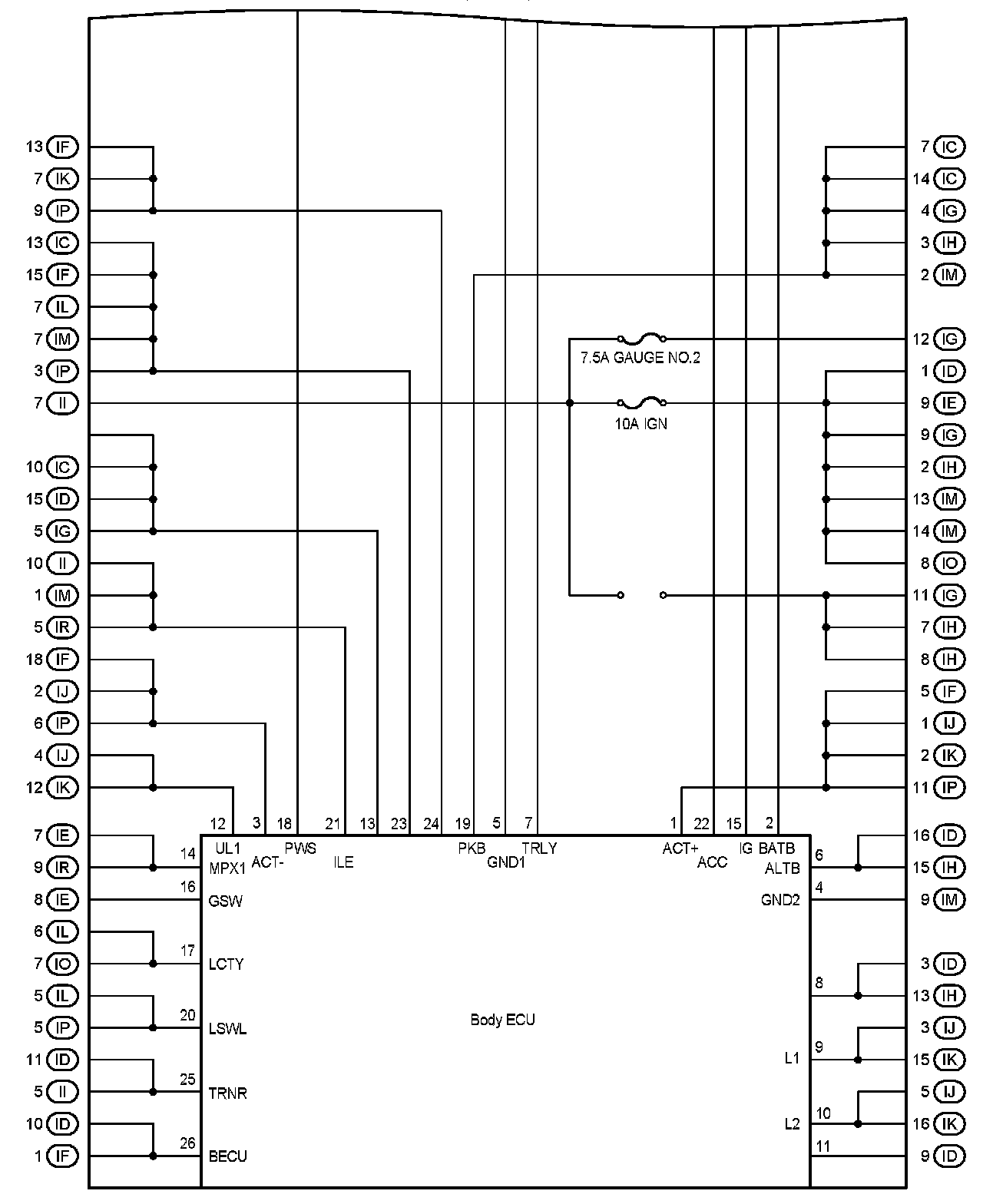

Instrument Panel J/B Inner Circuit:

Instrument Panel J/B Inner Circuit:

Instrument Panel J/B Inner Circuit:

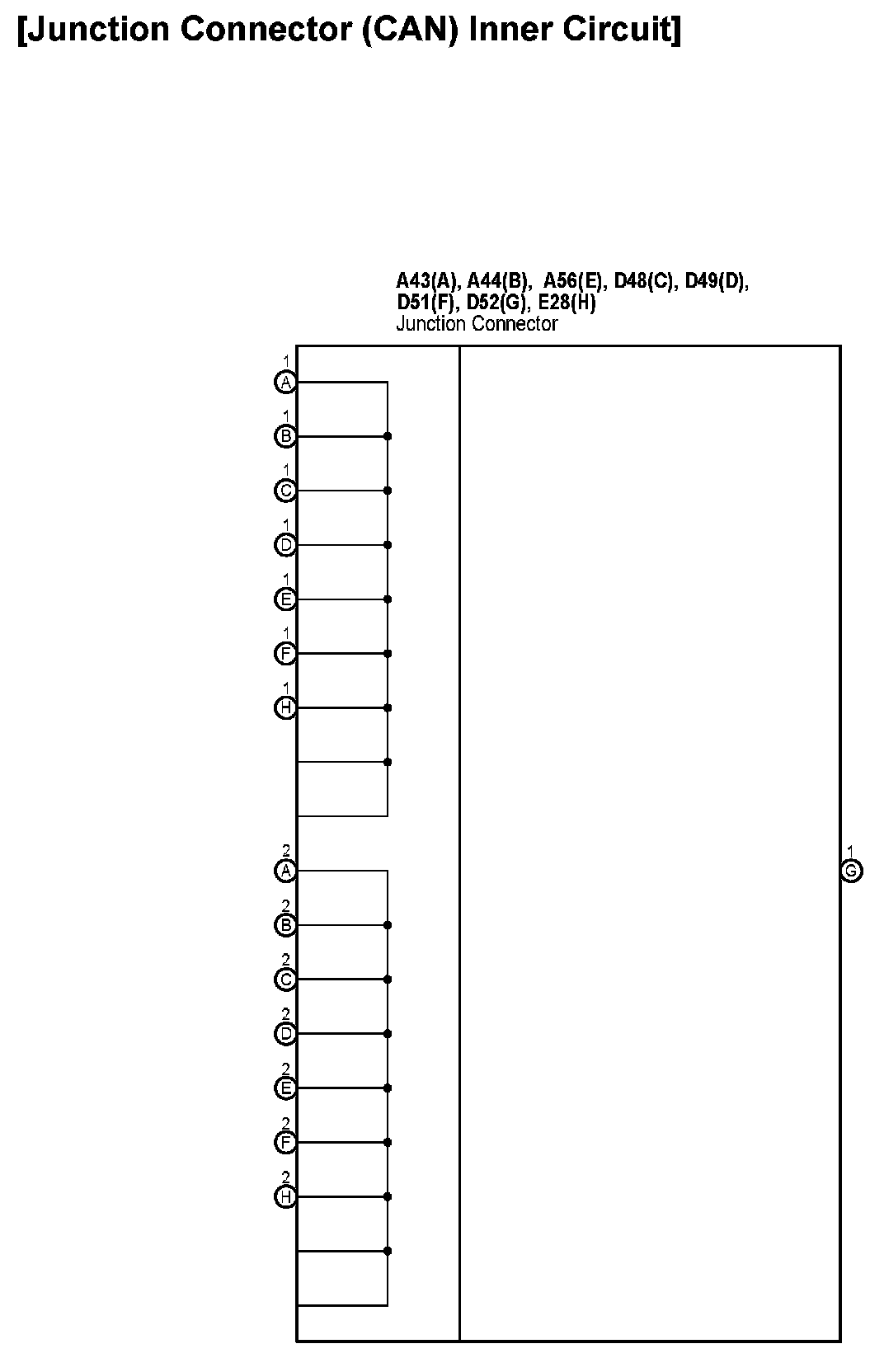

Junction Connector (CAN) Inner Circuit:

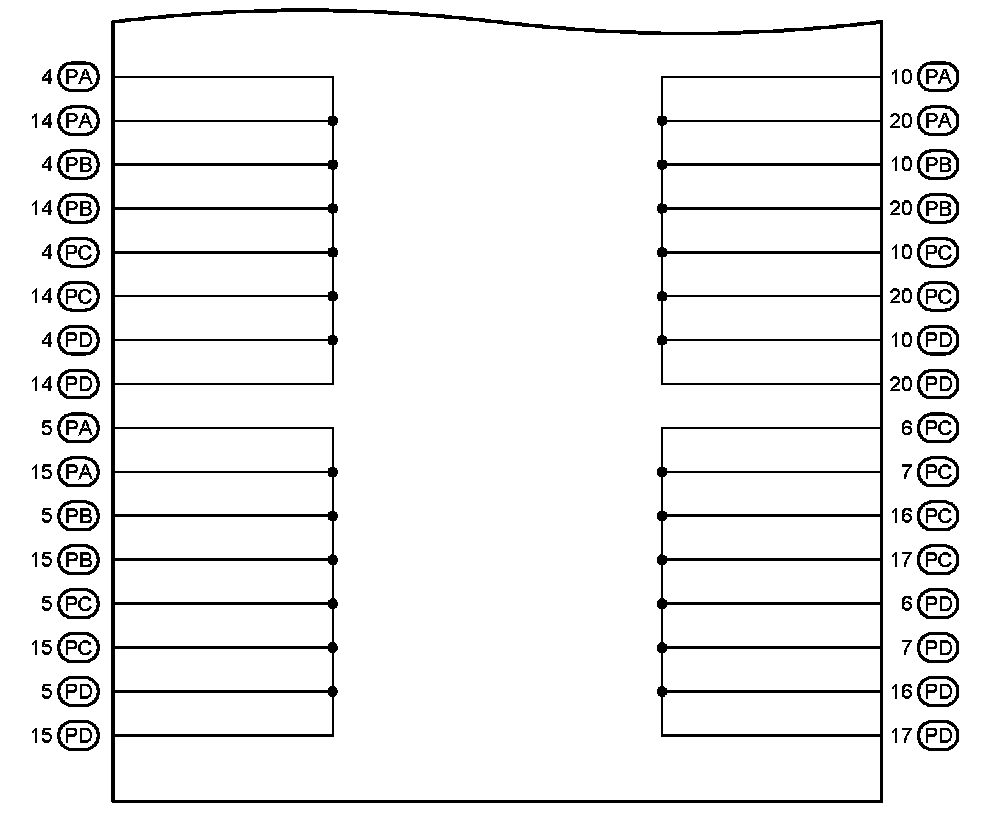

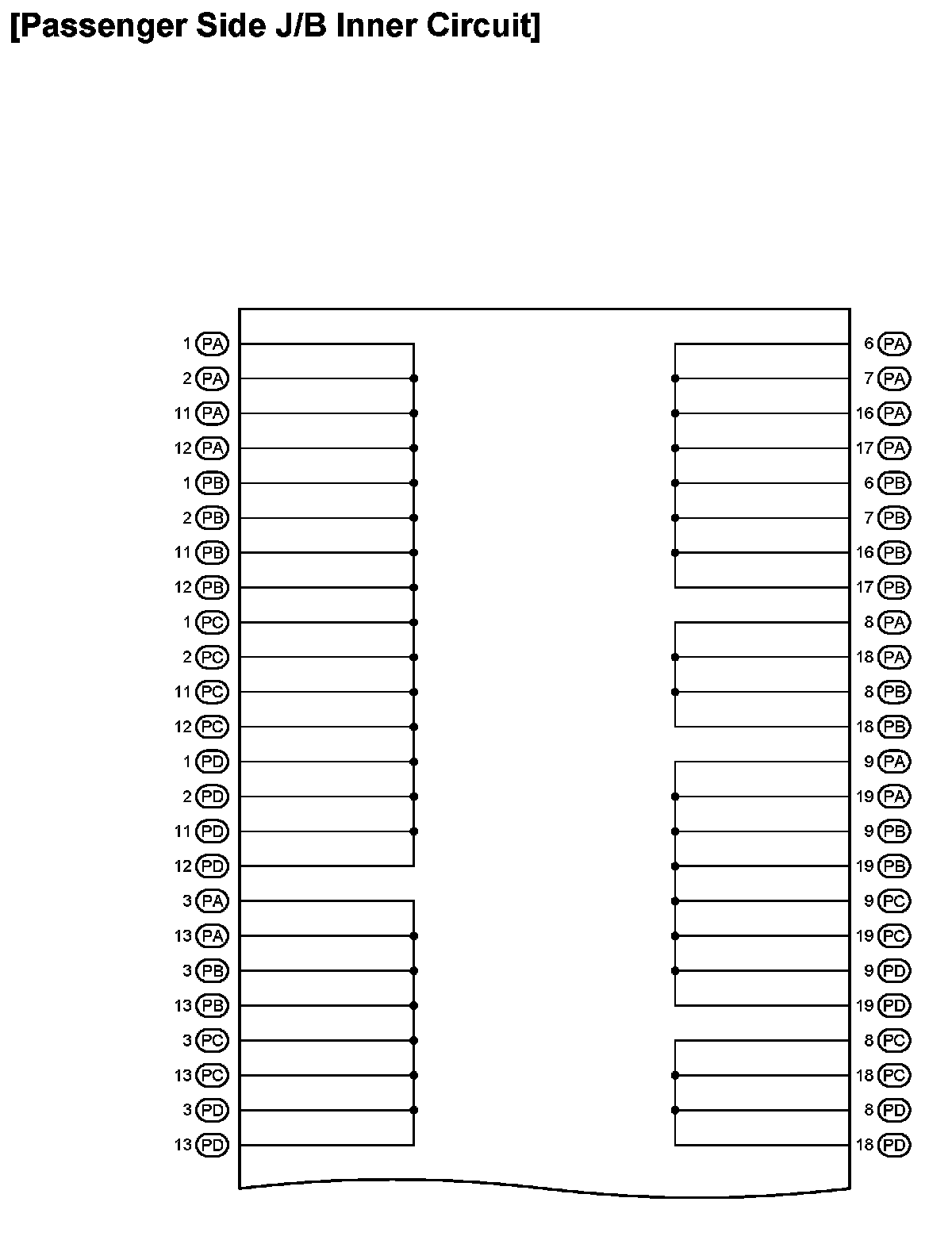

Passenger Side J/B Inner Circuit:

Passenger Side J/B Inner Circuit:
