Radiator Cooling Fan: Description and Operation

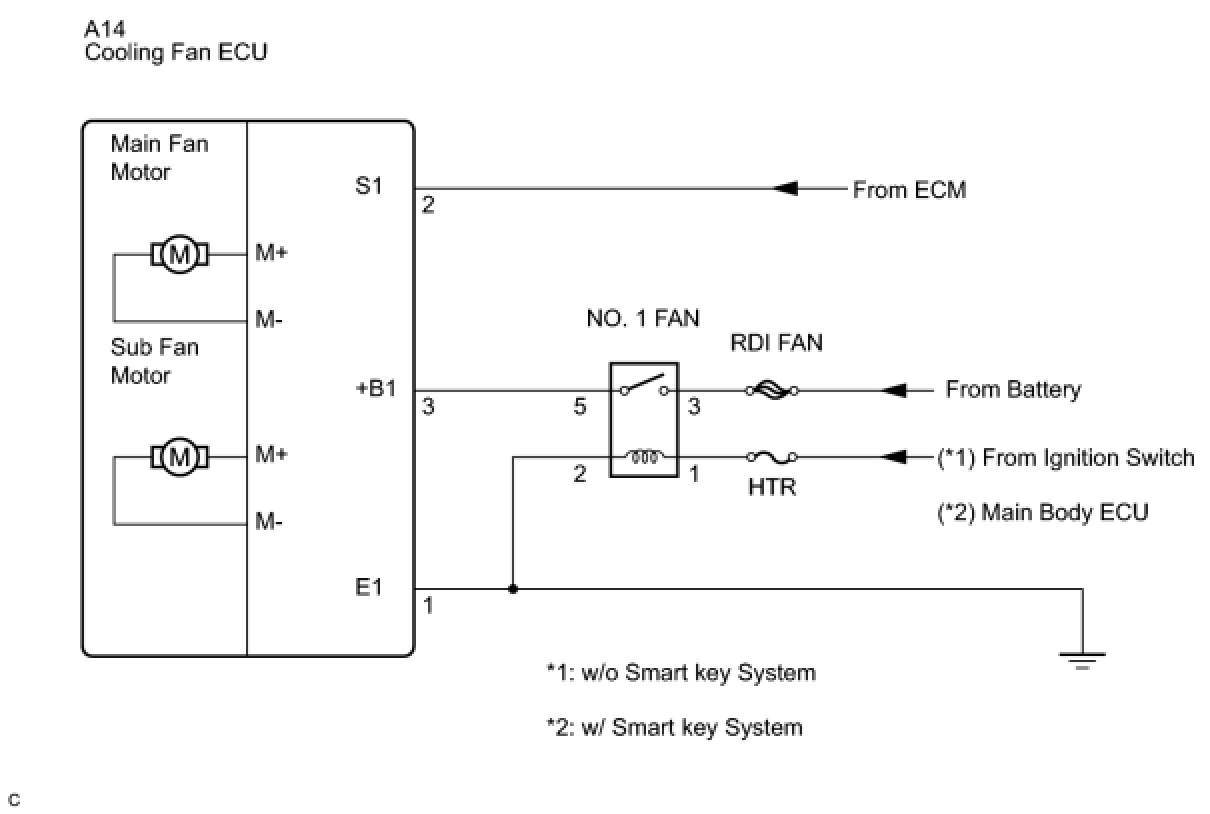

2GR-FE COOLING: COOLING FAN SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM

The electric cooling fan system controls the fan motors using the Engine Coolant Temperature (ECT) switch, and turns the fan relay on and off according to the ECT and the air conditioner's operating condition.
