Inspection

2GR-FE COOLING: COOLING FAN SYSTEM: INSPECTION

INSPECTION

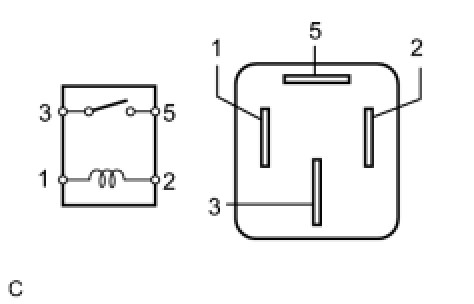

1. INSPECT RELAY





(a) Check the resistance of the relay.
Resistance:





If the result is not as specified, replace the relay.

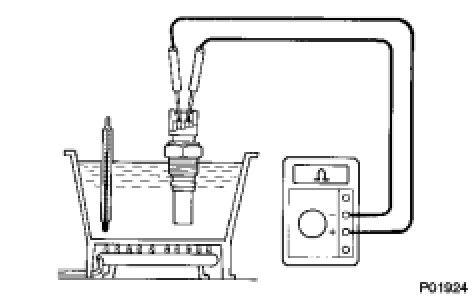

2. INSPECT ECT SWITCH





(a) Check the resistance.

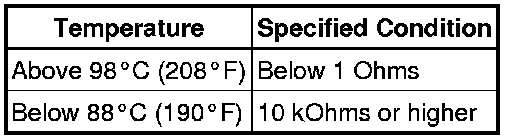

Resistance:





If the result is not as specified, replace the switch.

NOTE: When checking the ECT switch in the water, the terminals should be kept dry. After the check, dry the switch.
