Radiator: Testing and Inspection

2GR-FE COOLING: RADIATOR: INSPECTION

INSPECTION

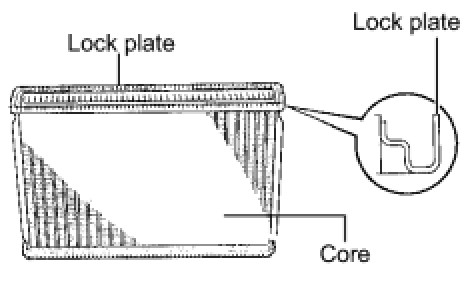

1. INSPECT LOCK PLATE





(a) Inspect the lock plate for damage.

HINT:
- If the sides of the lock plate groove are deformed, reassembly of the tank will be impossible. Therefore, first correct the lock plate groove's shape with pliers or a similar object, if necessary.
- Water leakage will result if the bottom of the lock plate groove is damaged or dented. Repair or replace if necessary.

NOTE: The radiator can only be recaulked 2 times. After the 2nd time, the radiator core must be replaced.
