Engine Temperature Sensor: Testing and Inspection

2GR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSPECTION

INSPECTION

1. INSPECT ENGINE COOLANT TEMPERATURE SENSOR

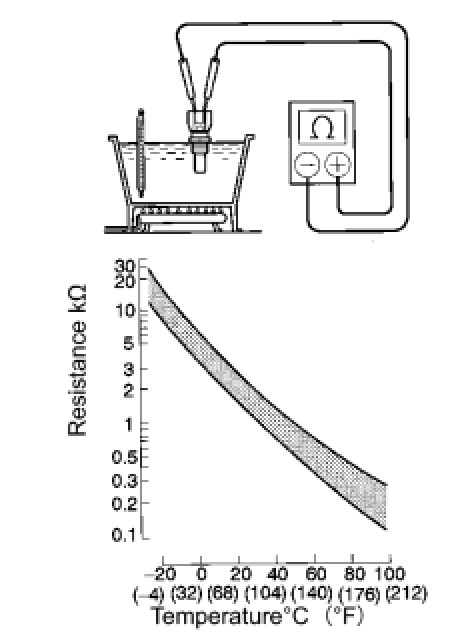

(a) Measure the resistance between the terminals.

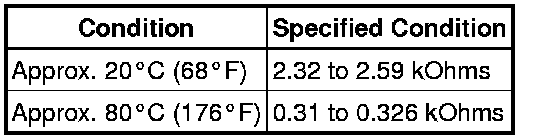

Resistance:





If the result is not as specified, replace the sensor.

NOTE: If checking the ECT sensor in the water, keep the terminals dry. After the check, wipe the sensor.
