2GR-FE COOLING: THERMOSTAT: INSTALLATION

INSTALLATION

1. INSTALL THERMOSTAT





(a) Install a new gasket to the thermostat.
(b) Install the thermostat with the jiggle valve facing up.

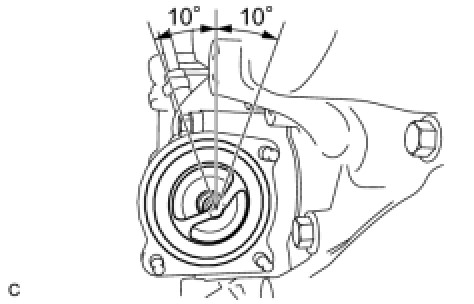

HINT: The jiggle valve may be set within 10°of either side of the prescribed position.

2. INSTALL WATER INLET
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
3. INSTALL RADIATOR HOSE OUTLET
4. INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY
5. INSTALL FAN AND GENERATOR V BELT
6. INSTALL ENGINE MOUNTING BRACKET FRONT NO.1 LH
7. INSTALL ENGINE MOUNTING CONTROL BRACKET
8. INSTALL ENGINE MOVING CONTROL ROD
9. INSTALL V-BANK COVER SUB-ASSEMBLY
10. ADD ENGINE COOLANT
11. INSPECT FOR COOLANT LEAK
