Removal

2GR-FE LUBRICATION: OIL PUMP: REMOVAL

REMOVAL

1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE Removal
2. REMOVE ENGINE WIRE
3. REMOVE FRONT FRAME ASSEMBLY Removal
4. REMOVE STARTER ASSEMBLY Removal
5. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY
6. REMOVE OIL LEVEL GAUGE GUIDE SUB-ASSEMBLY Removal
7. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH Removal
8. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH Removal
9. REMOVE DRIVE PLATE & RING GEAR SUB-ASSEMBLY Removal
10. FIX ENGINE ASSEMBLY
11. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY Removal
12. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY Removal
13. REMOVE WATER PUMP PULLEY Removal
14. REMOVE WATER INLET HOUSING Removal
15. REMOVE CRANKSHAFT PULLEY Disassembly
16. REMOVE OIL PAN SUB-ASSEMBLY NO. 2 Disassembly
17. REMOVE OIL STRAINER SUB-ASSEMBLY Disassembly
18. REMOVE OIL PAN SUB-ASSEMBLY Disassembly
19. REMOVE INTAKE AIR SURGE TANK ASSEMBLY Removal
20. REMOVE IGNITION COIL ASSEMBLY Removal
21. REMOVE NO. 1 OIL PIPE Disassembly
22. REMOVE OIL PIPE Disassembly
23. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY RH Disassembly
24. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY LH Disassembly
25. REMOVE TIMING CHAIN OR BELT COVER SUB-ASSEMBLY

(a) Remove the 23 bolts and 2 nuts as shown in the illustration.

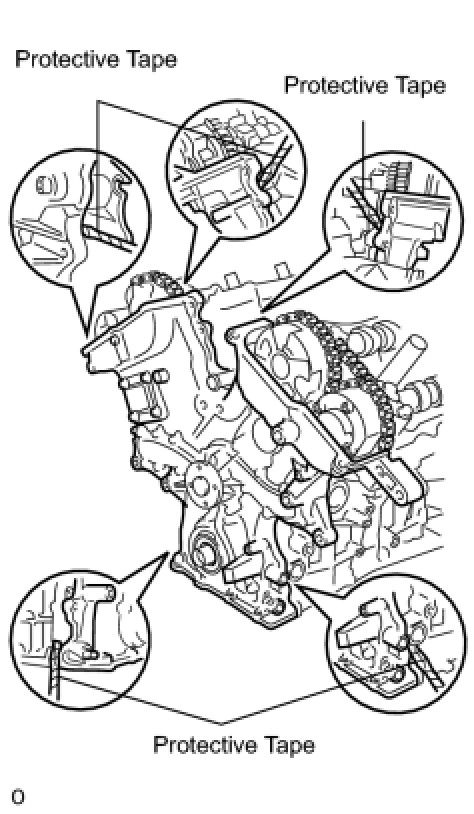

(b) Remove the timing chain cover by prying between the timing chain cover and cylinder head or cylinder block with a screwdriver.

NOTE: Be careful not to damage the contact surfaces of the cylinder head, cylinder block and chain cover.

HINT: Tape the screwdriver tip before use.

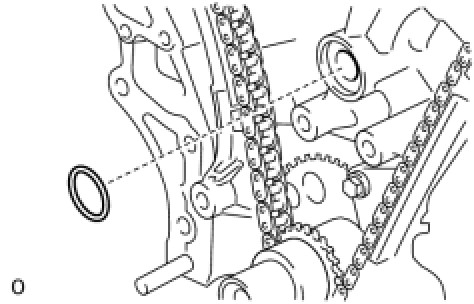

(a) Using a screwdriver, pry out the oil seal.

HINT: Tape the screwdriver tip before use.
