Installation

2GR-FE ENGINE MECHANICAL: ENGINE FRONT OIL SEAL: INSTALLATION

INSTALLATION

1. INSTALL TIMING CHAIN COVER OIL SEAL





(a) Apply MP grease to a new timing chain case oil seal lip.

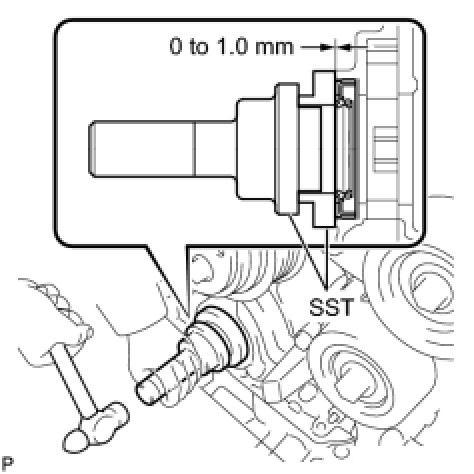

(b) Using SST and a hammer, tap in the timing chain case oil seal until its surface is flush with the timing chain cover edge.
SST: 09223-22010
SST: 09506-35010
Oil seal tap in depth:
0 to 1.0 mm (0 to 0.0393 in.)

NOTICE:
- Keep the lip free of foreign matter.
- Do not tap the timing chain case oil seal at an angle.

2. INSTALL CRANKSHAFT PULLEY Reassembly
3. INSTALL FAN AND GENERATOR V BELT

HINT: Install the V-ribbed belt Installation.

4. INSTALL V-BANK COVER SUB-ASSEMBLY
5. INSTALL FRONT WHEEL RH
