Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Avalon V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Blower Motor
>>
Service and Repair
>>
Components
Components

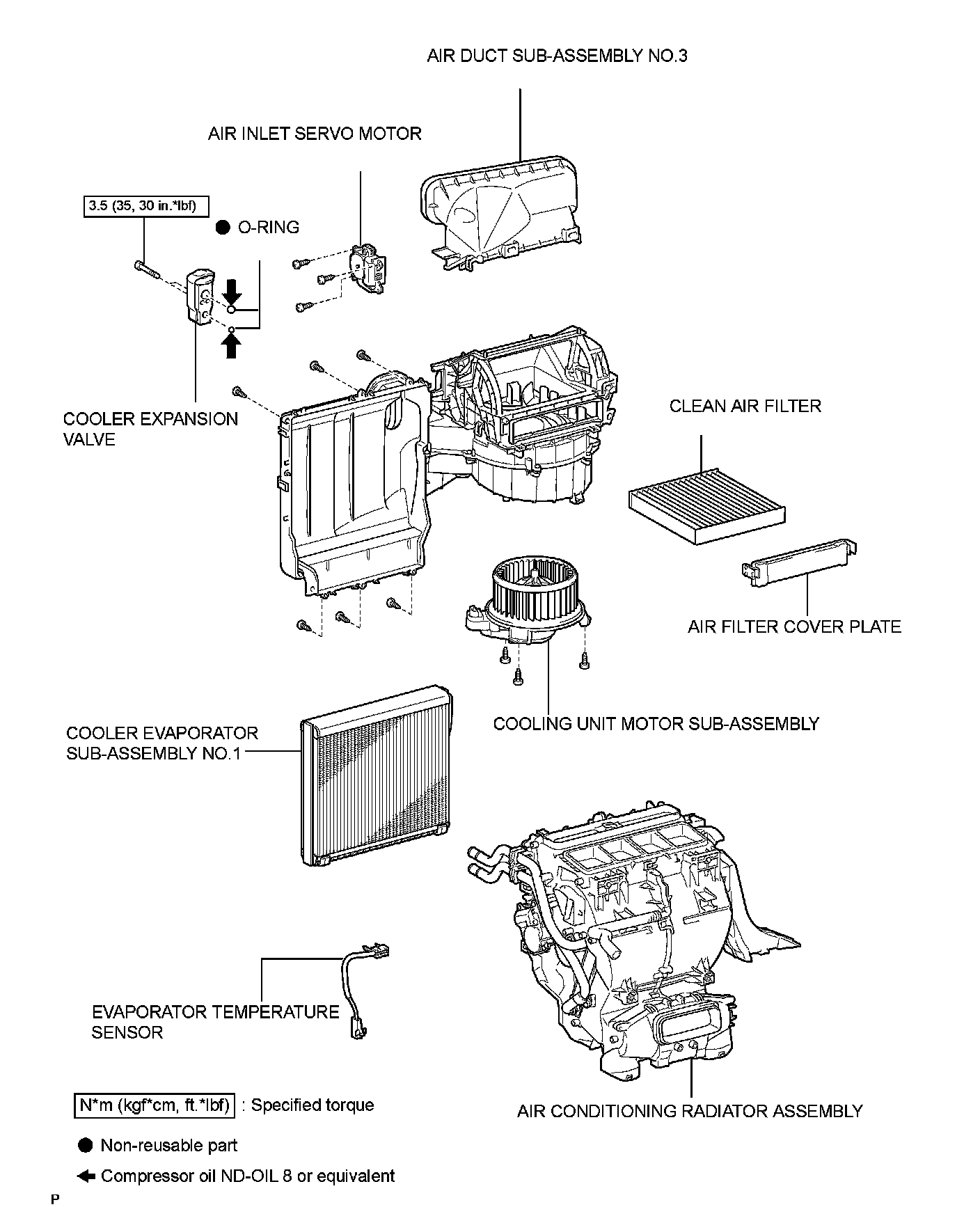

AIR CONDITIONING: BLOWER UNIT: COMPONENTS
COMPONENTS
ILLUSTRATION
