Disassembly

AIR CONDITIONING: BLOWER UNIT: DISASSEMBLY

DISASSEMBLY

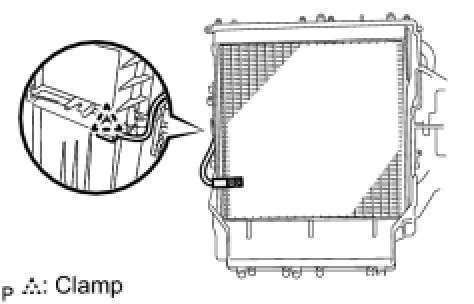

1. REMOVE EVAPORATOR TEMPERATURE SENSOR





(a) Remove the clamp and evaporator temperature sensor.
2. REMOVE COOLER EXPANSION VALVE





(a) Using a hexagon wrench 4 mm, remove the 2 hexagon bolts and cooler expansion valve.
3. REMOVE COOLER EVAPORATOR SUB-ASSEMBLY NO.1





(a) Remove the cooler evaporator sub-assembly No.1.





(b) Remove the 2 O-rings from the cooler evaporator sub-assembly No.1.

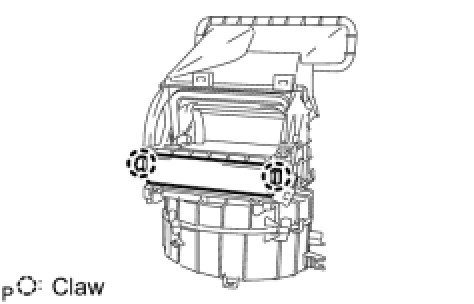

4. REMOVE AIR FILTER COVER PLATE





(a) Release the 2 claws and remove the air filter cover plate.

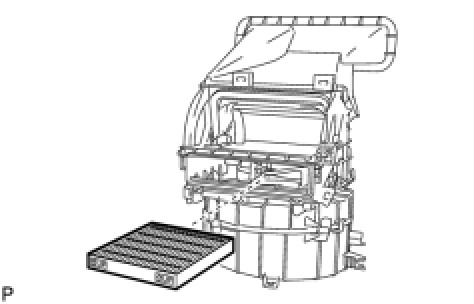

5. REMOVE CLEAN AIR FILTER





(a) Remove the clean air filter.
6. REMOVE AIR INLET SERVO MOTOR





(a) Remove the 3 screws and air inlet servo motor.

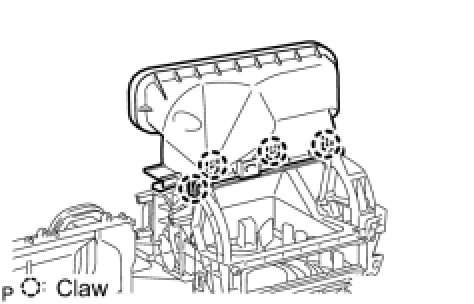

7. REMOVE AIR DUCT SUB-ASSEMBLY NO.3





(a) Disengage the 4 claws and then remove the air duct sub-assembly No.3.
8. REMOVE COOLING UNIT MOTOR SUB-ASSEMBLY





(a) Remove the 3 screws and cooling unit motor sub-assembly w/ fan.
