Installation

AIR CONDITIONING: BLOWER UNIT: INSTALLATION

INSTALLATION

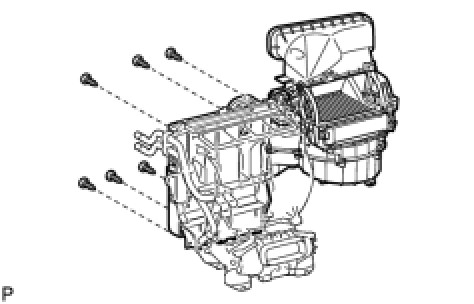

1. INSTALL BLOWER ASSEMBLY





(a) Install the blower assembly with the 6 screws.
2. INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY Installation
3. CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY Installation
4. INSTALL STEERING COLUMN ASSEMBLY Installation
5. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Installation
6. INSTALL AIR CONDITIONER TUBE AND ACCESSORY Installation
7. INSTALL SUCTION HOSE SUB-ASSEMBLY Installation
8. CONNECT BATTERY NEGATIVE TERMINAL
9. PERFORM SYSTEM INITIALIZE
(a) Some systems need initialization when disconnecting the cable from the negative battery terminal.

HINT: Repair Instruction - Initialization

10. ADD ENGINE COOLANT Service and Repair
11. CHECK FOR ENGINE COOLANT LEAKS Service and Repair
12. CHARGE REFRIGERANT Service and Repair
13. WARM UP ENGINE Service and Repair
14. INSPECT FOR REFRIGERANT LEAK Service and Repair
15. INSTALL WINDSHIELD WIPER MOTOR AND LINK Installation
16. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH Installation
17. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH Installation
