Blower Motor: Testing and Inspection

AIR CONDITIONING: BLOWER MOTOR: INSPECTION

INSPECTION

1. INSPECT BLOWER MOTOR
(a) Remove the blower motor.
(b) Disconnect the connector from the cooling unit motor sub-assembly w/ fan.

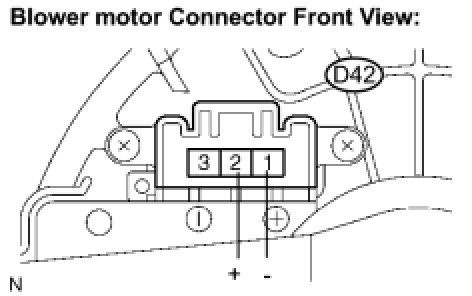

(c) Connect the positive (+) lead to terminal 2 of the blower motor connector, and the negative (-) lead to terminal 1.
