Disassembly

AIR CONDITIONING: COMPRESSOR AND MAGNETIC CLUTCH: DISASSEMBLY

DISASSEMBLY

1. REMOVE MAGNETIC CLUTCH ASSEMBLY
(a) Remove the bolt and bracket.
(b) Place the compressor and magnetic clutch in a vise.

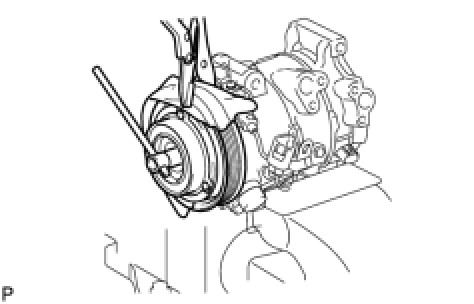

(c) Using vise pliers, hold the magnet clutch hub.
(d) Remove the bolt, magnetic clutch hub and magnetic clutch washer.

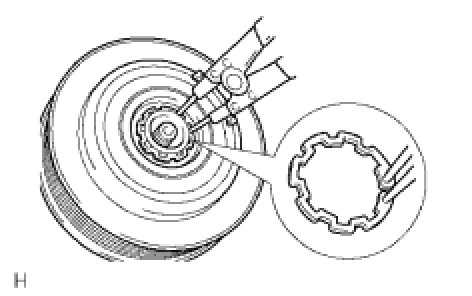

(e) Using a snap ring expander, remove the snap ring and magnetic clutch rotor.
(f) Disconnect the connector.

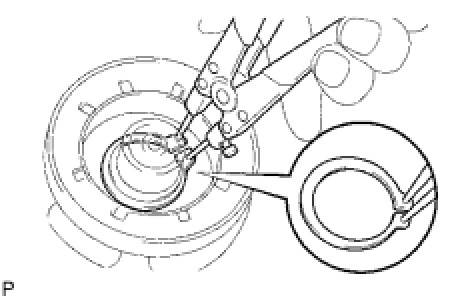

(g) Using a snap ring expander, remove the snap ring and magnetic clutch stator.
