Removal

AIR CONDITIONING: CONDENSER: REMOVAL

REMOVAL

HINT: Installation is in the reverse order of removal.

1. DISCHARGE REFRIGERANT FROM FROM REFRIGERATION SYSTEM Service and Repair
2. REMOVE AIR CLEANER INLET NO.2 Removal
3. REMOVE AIR CLEANER INLET NO.1 Removal
4. DISCONNECT HOOD LOCK ASSEMBLY
5. REMOVE RADIATOR SUPPORT UPPER Removal

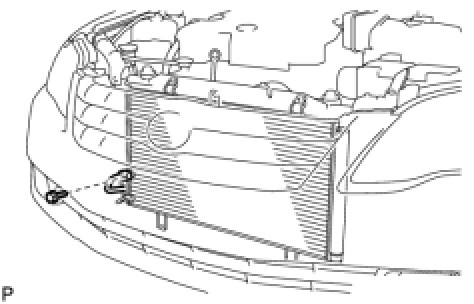

6. DISCONNECT COOLER REFRIGERANT DISCHARGE HOSE NO.1





(a) Remove the bolt and disconnect the cooler refrigerant discharge hose No.1 from the cooler condenser assembly.
(b) Remove the O-ring from the cooler refrigerant discharge hose No.1.

NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.

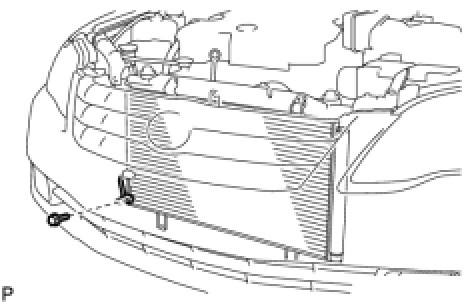

7. DISCONNECT AIR CONDITIONER TUBE AND ACCESSORY





(a) Remove the bolt and disconnect the air conditioner tube & accessory from the cooler condenser assembly.

NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.

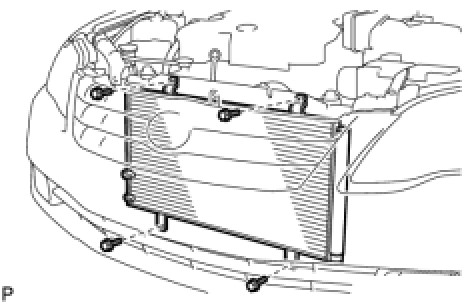

8. REMOVE COOLER CONDENSER ASSEMBLY





(a) Remove the 4 bolts and cooler condenser assembly.
