Evaporator Temperature Sensor / Switch: Testing and Inspection

AIR CONDITIONING: EVAPORATOR TEMPERATURE SENSOR: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT A/C EVAPORATOR TEMPERATURE SENSOR
(a) Remove the A/C evaporator temperature sensor (A/C thermistor).

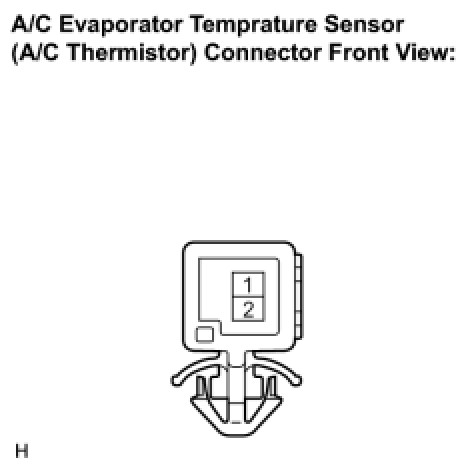

(b) Disconnect the connector from the A/C evaporator temperature sensor (A/C thermistor).

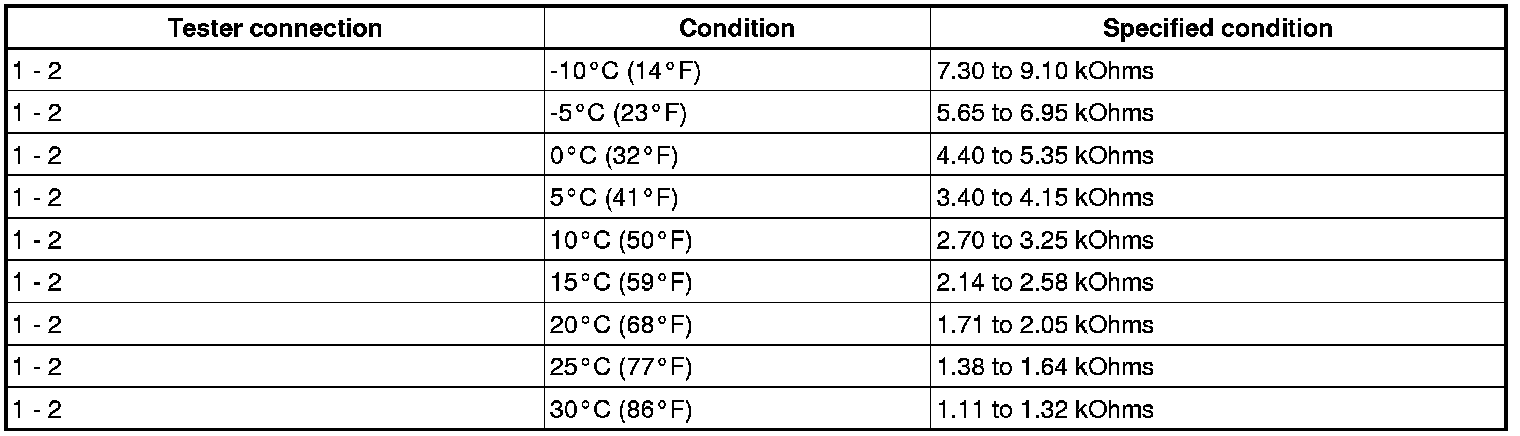

(c) Measure the resistance according to the value(s) in the table below.





Resistance:





NOTICE:
- Even slightly touching the sensor may change the resistance value. Be sure to hold the connector of the sensor.
- When measuring, the sensor temperature must be the same as the ambient temperature.

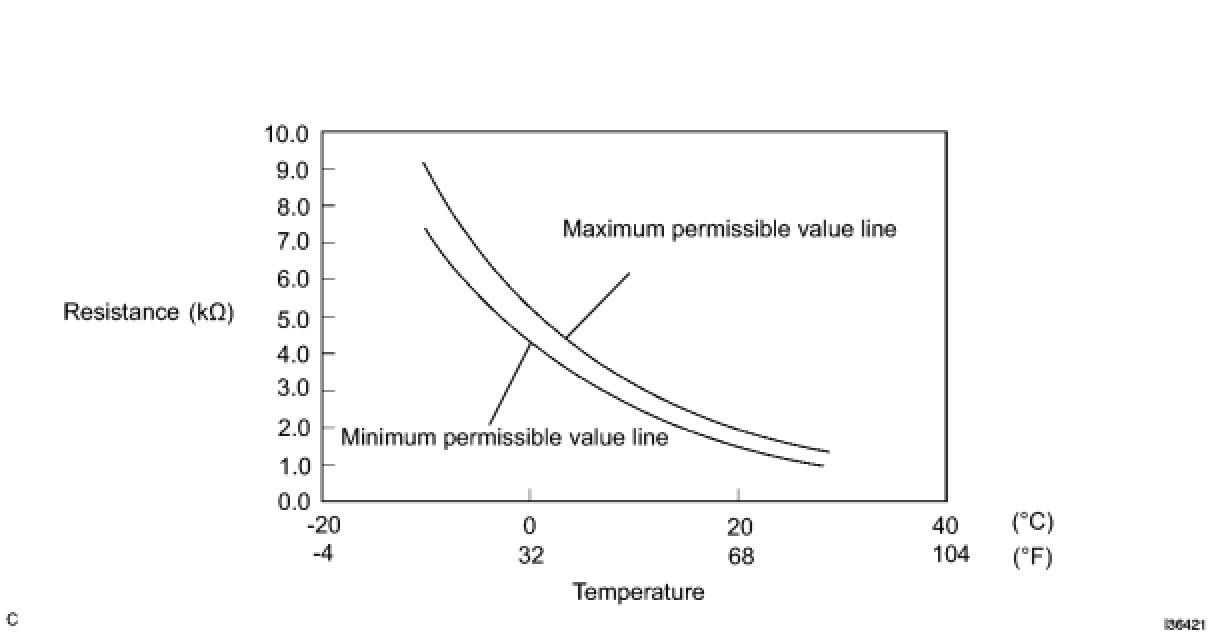

HINT: As the temperature increases, the resistance decreases (See the graph).

If the resistance value is not as specified, replace the sensor.
