Back-Up Power Source Circuit

AIR CONDITIONING: AIR CONDITIONING SYSTEM: Back-up Power Source Circuit

Back-up Power Source Circuit

DESCRIPTION

This is back-up power source circuit for the A/C amplifier. Power is supplied even when turning the ignition switch off and is used for diagnostic trouble code memory, etc.

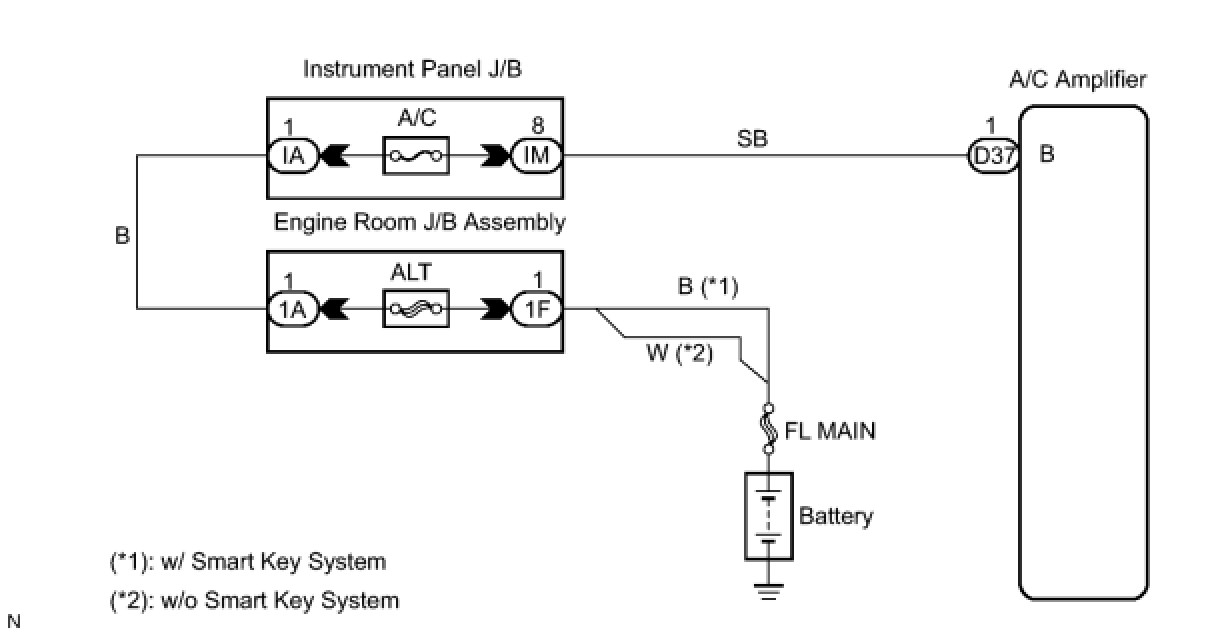

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (A/C)

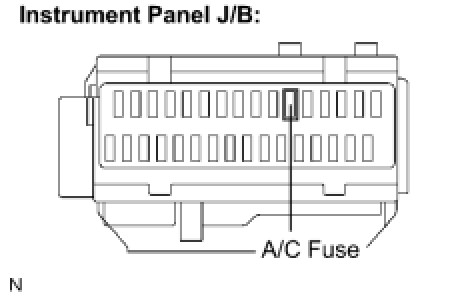

(a) Remove the A/C fuse from the instrument panel J/B.
(b) Measure the resistance according to the value(s) in the table blow.
Standard Resistance:






NG -- REPLACE FUSE (A/C)
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (B - BODY GROUND)

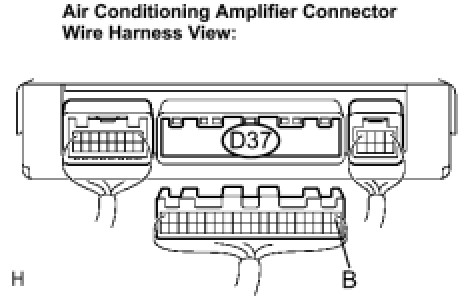

(a) Remove the A/C amplifier and disconnect the connector.
(b) Measure the voltage according to the value(s) in the table blow.
Standard Voltage:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
