LIN Communication Circuit

AIR CONDITIONING: AIR CONDITIONING SYSTEM: LIN Communication Circuit

LIN Communication Circuit

DESCRIPTION

The heater control panel switch operation signal to the A/C amplifier.

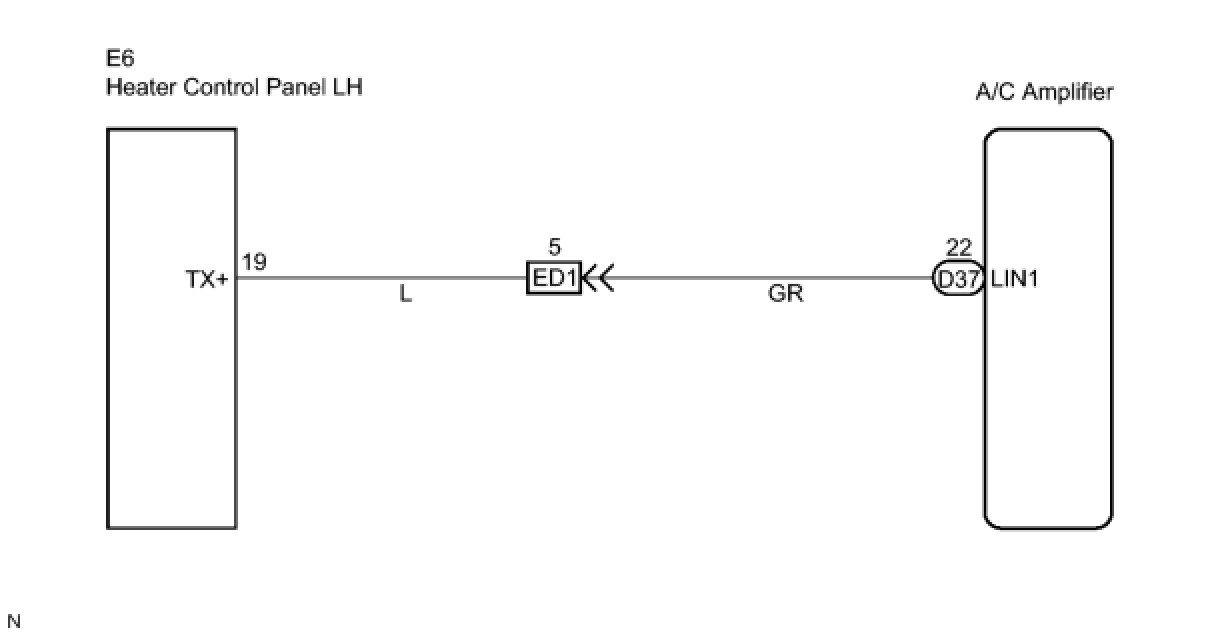

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

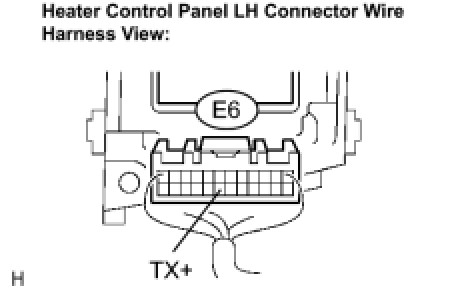

1. CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - HEATER CONTROL PANEL LH)





(a) Disconnect the connector from heater control panel LH.





(b) Disconnect the connector from the A/C amplifier.
(c) Measure the resistance according to the value(s) in the table below.

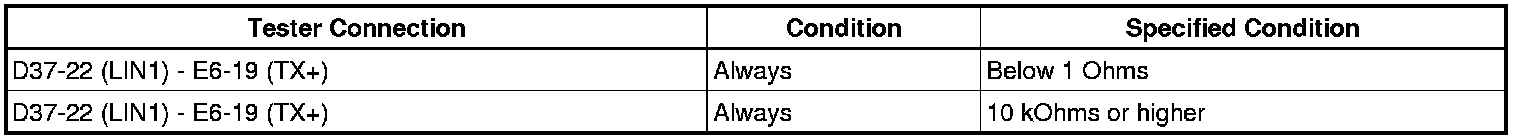

Standard Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
