Seat Heater Control Power Source Circuit

AIR CONDITIONING: AIR CONDITIONING SYSTEM: Seat Heater Control Power Source Circuit

Seat Heater Control Power Source Circuit

DESCRIPTION

Battery voltage is supplied to the seat heater control sub-assembly through the S-HTR fuse.

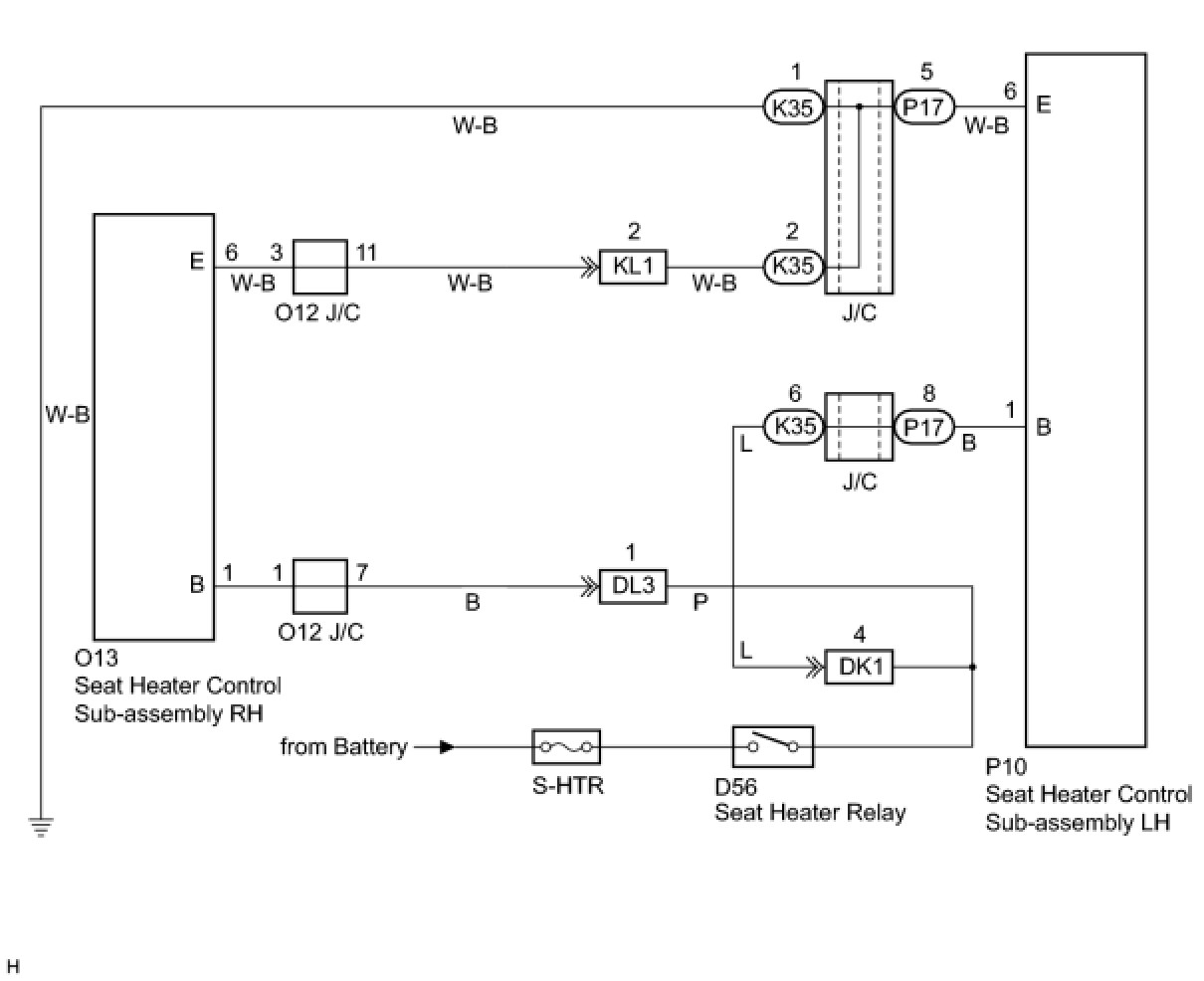

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

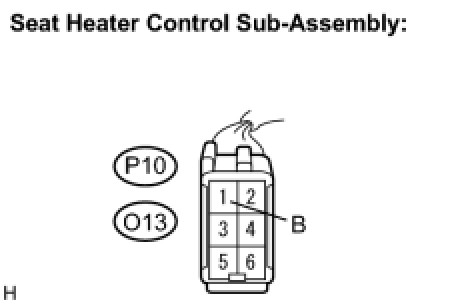

1. CHECK HARNESS AND CONNECTOR (B - BATTERY)





(a) Disconnect the connector from seat heater control sub-assembly.

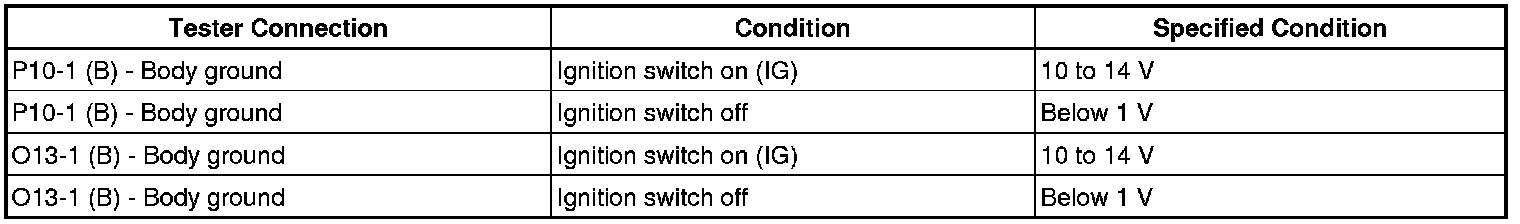

(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:

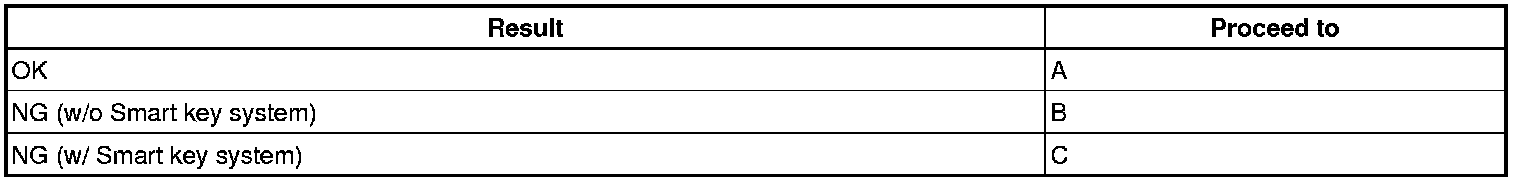

Result:





C -- GO TO PUSH BUTTON START SYSTEM
B -- GO TO STARTING SYSTEM
A -- Continue to next step.

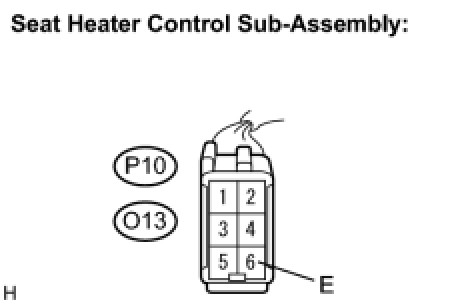

2. CHECK HARNESS AND CONNECTOR (E - BODY GROUND)

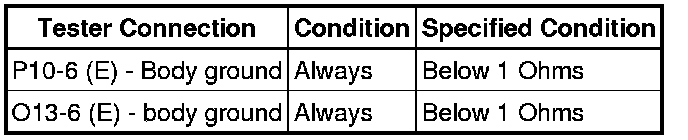

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
