Removal

OTHER SYSTEM: CLOCK: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

2. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.1 Removal
3. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2 Removal
4. REMOVE INSTRUMENT PANEL FINISH PLATE (w/o Smart Key System) Removal
5. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY Removal
6. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
7. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Removal
8. REMOVE COMBINATION METER ASSEMBLY Removal
9. REMOVE CLOCK ASSEMBLY
10. REMOVE ACCESSORY METER ASSEMBLY

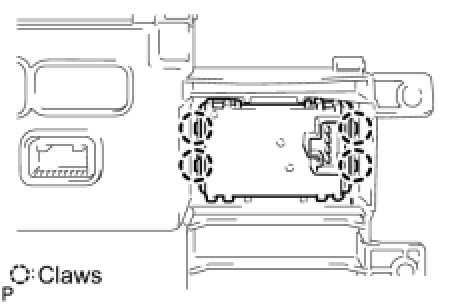

(a) Disengage the 4 claws and remove the accessory meter assembly.
