Instrument Panel, Gauges and Warning Indicators: Description and Operation

METER: METER / GAUGE SYSTEM: SYSTEM DIAGRAM

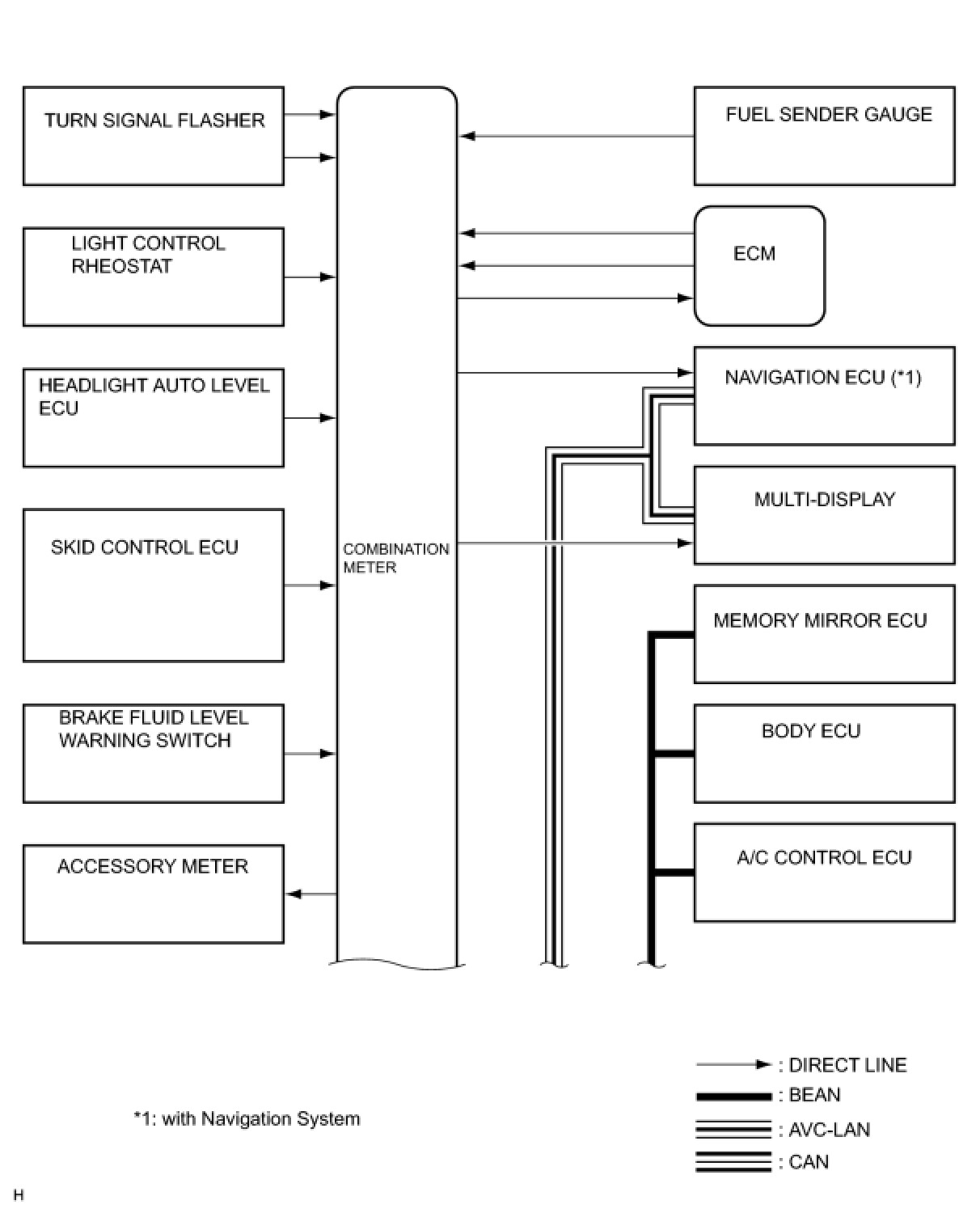

SYSTEM DIAGRAM

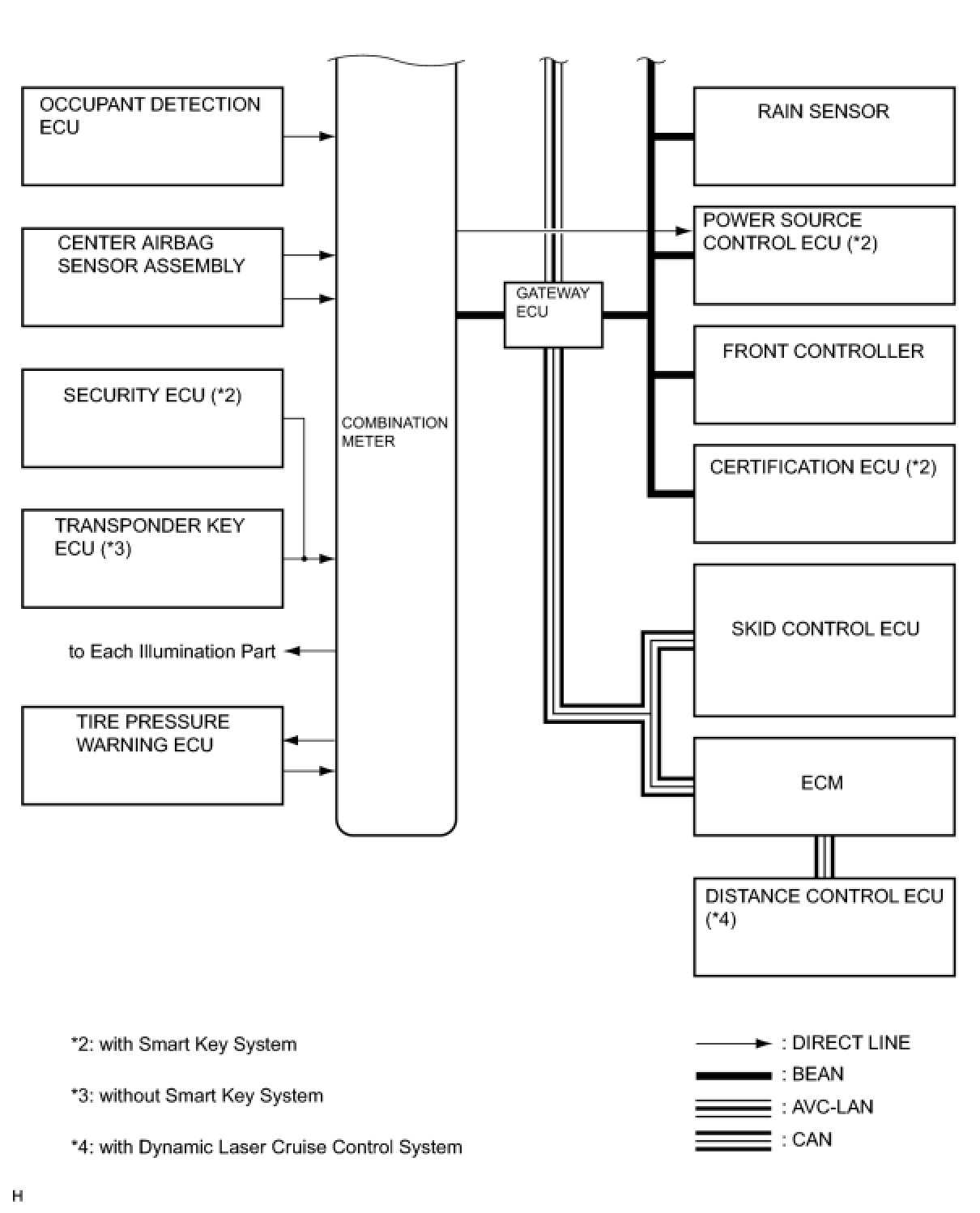

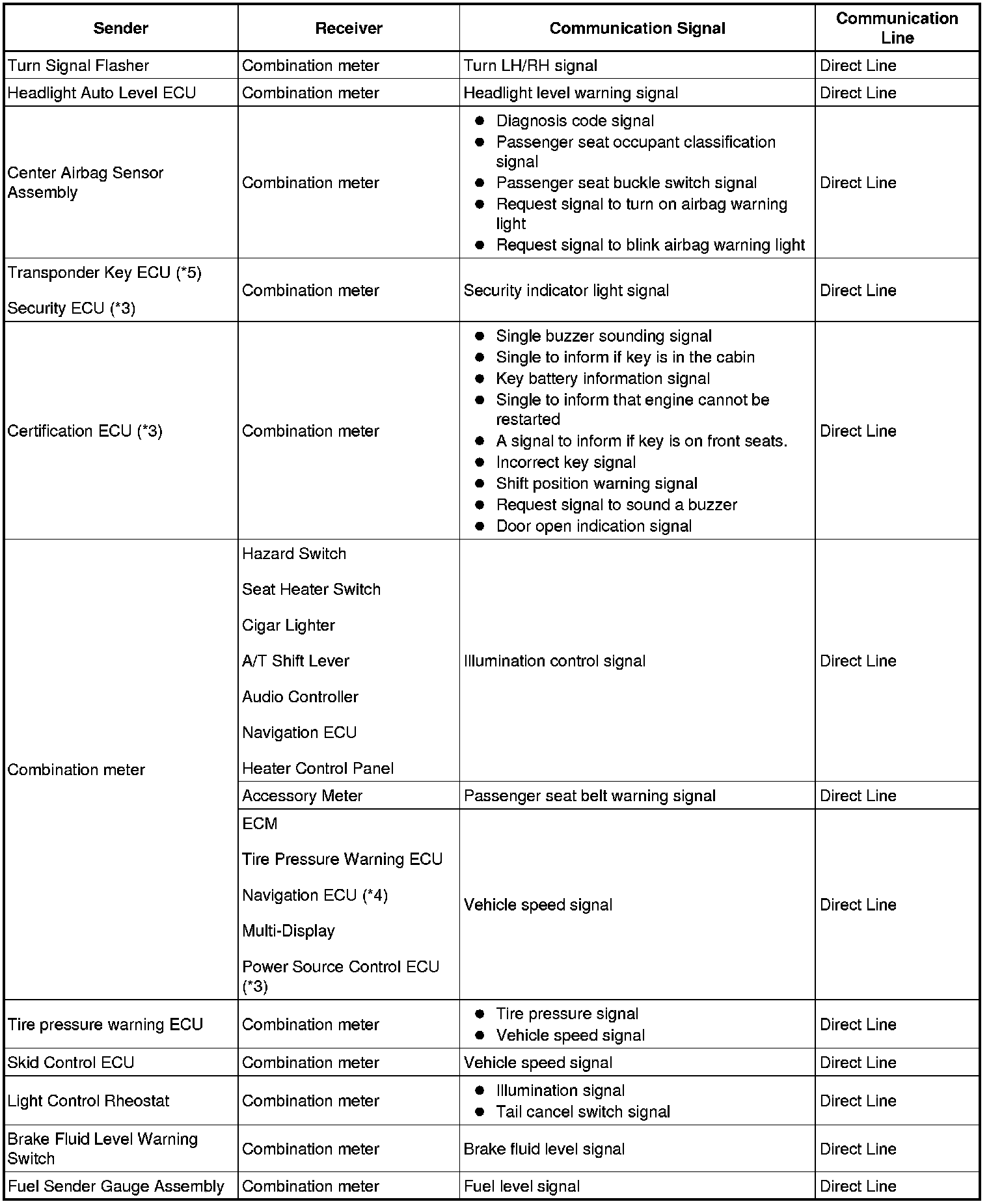

1. COMBINATION METER ASSEMBLY

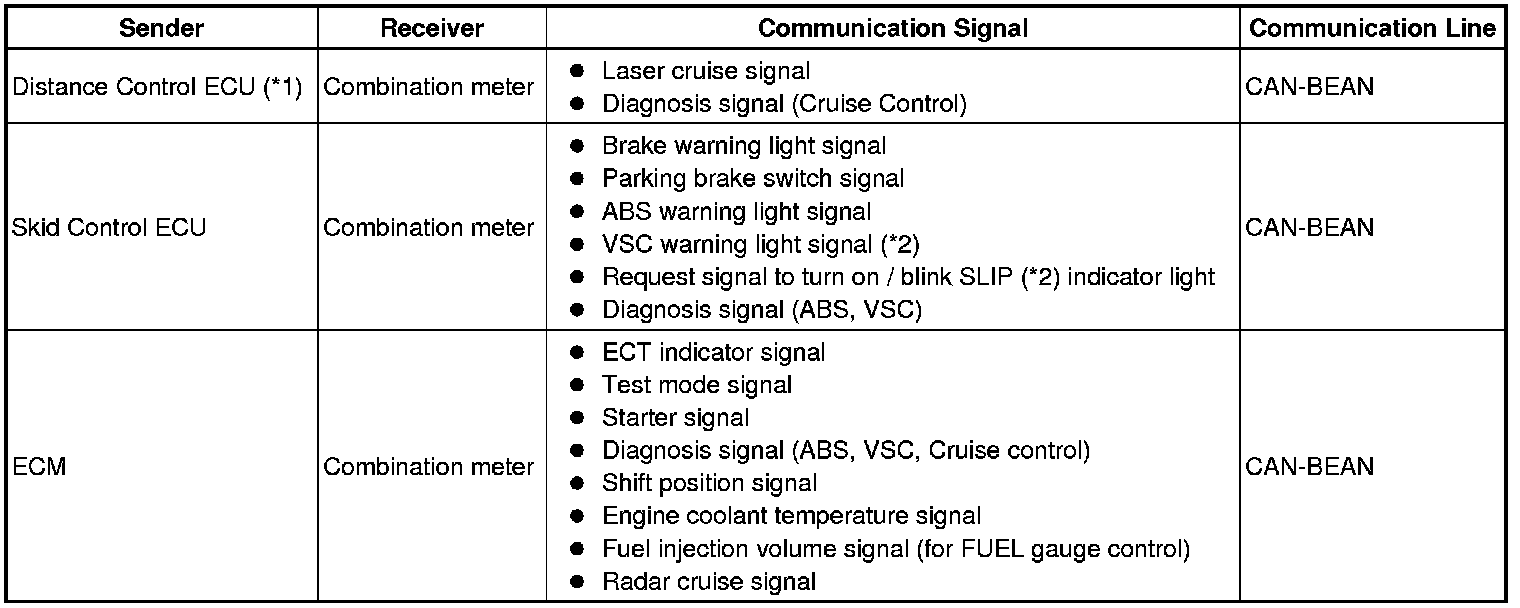

GATEWAY:

HINT: CAN signals and AVC-LAN signals are transmitted to or received from the combination meter assembly through the gateway ECU.

CAN:

BEAN:

AVC-LAN:

Direct Line:

*1: with Dynamic Laser Cruise Control System. In addition, the distance control ECU communicates with the combination meter assembly via ECM.
*2: with VSC
*3: with Smart key System
*4: with Navigation System
*5: without Smart key System

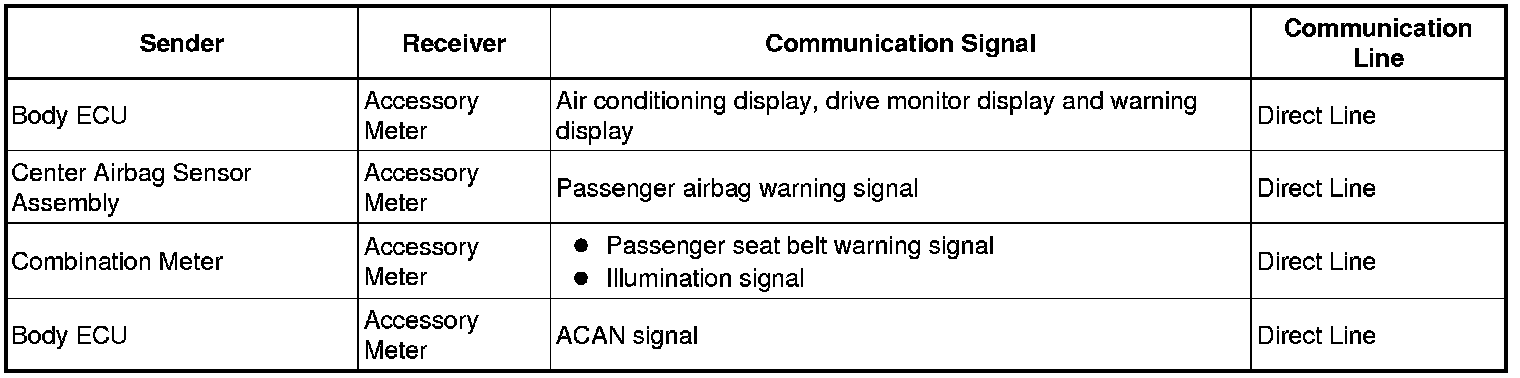

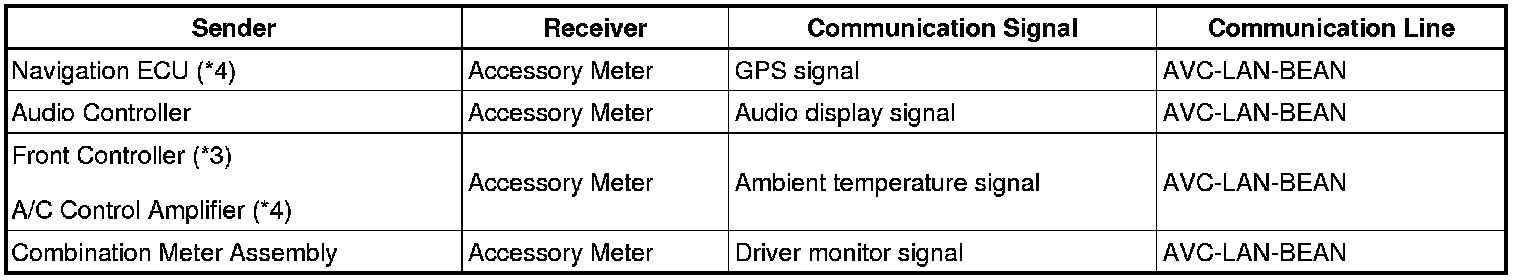

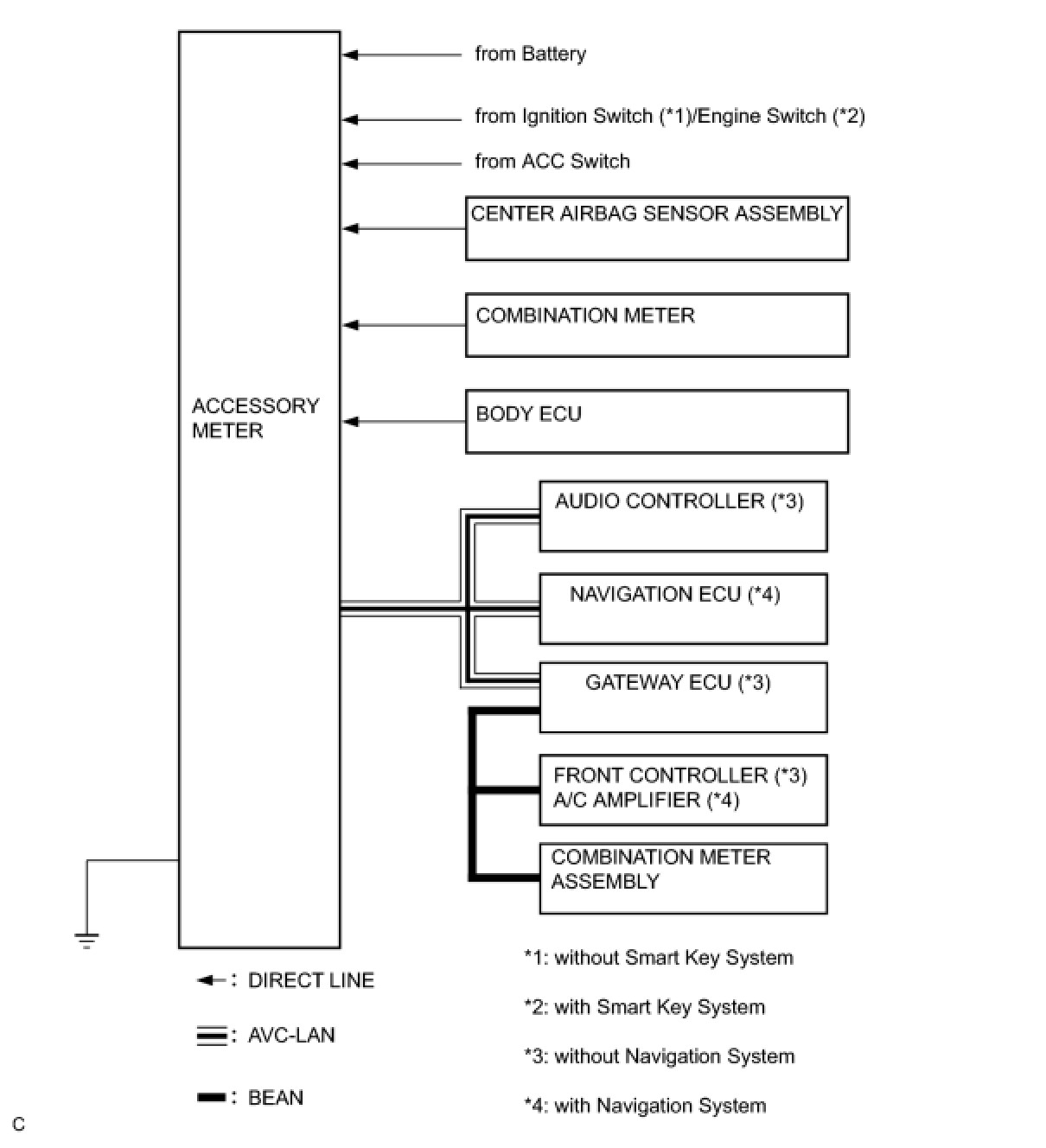

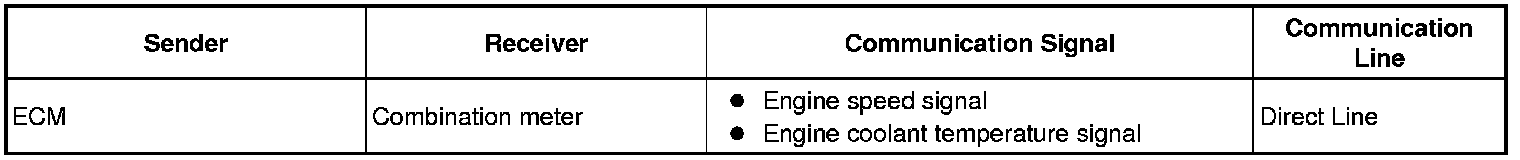

2. ACCESSORY METER ASSEMBLY

GATEWAY:

HINT: AVC-LAN signals are transmitted to or received from the combination meter assembly through the ECU.

AVC-LAN:

Direct Line

*1: without Smart Key System
*2: with Smart Key System
*3: without Navigation System
*4: with Navigation System

METER: METER / GAUGE SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. Combination Meter Assembly

*: with Dynamic Laser Cruise Control System

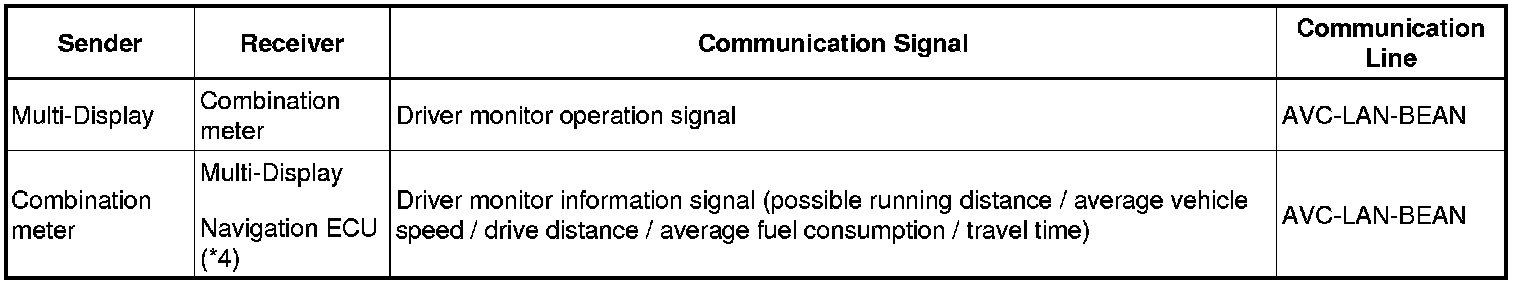

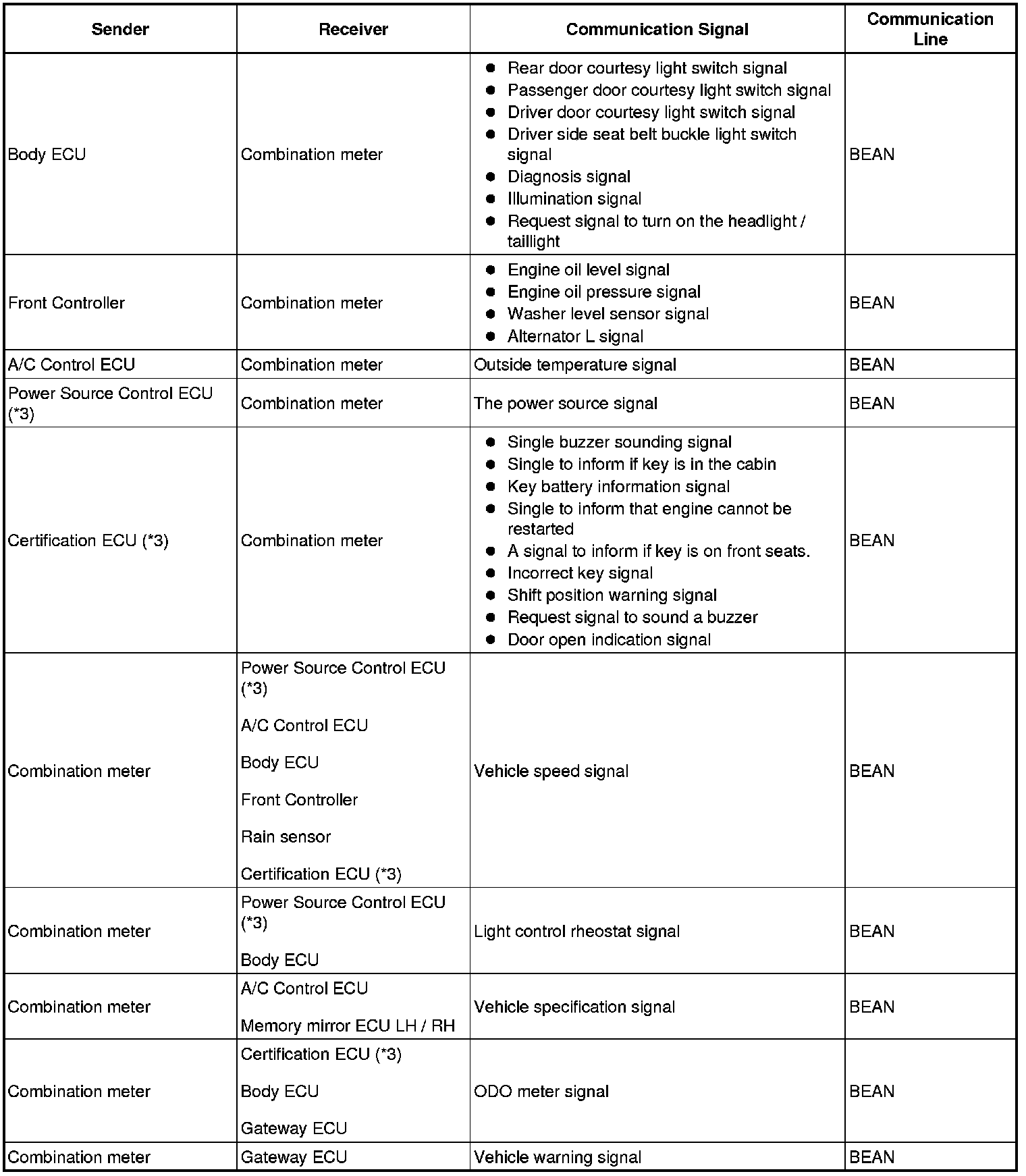

HINT: CAN signals and AVC-LAN signals are transmitted to or received from the combination meter assembly through the gateway ECU.

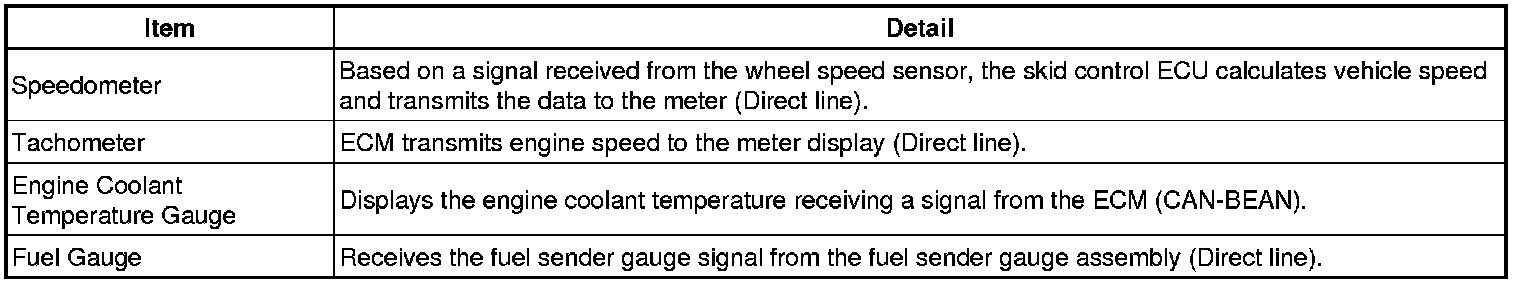

(a) GAUGE:

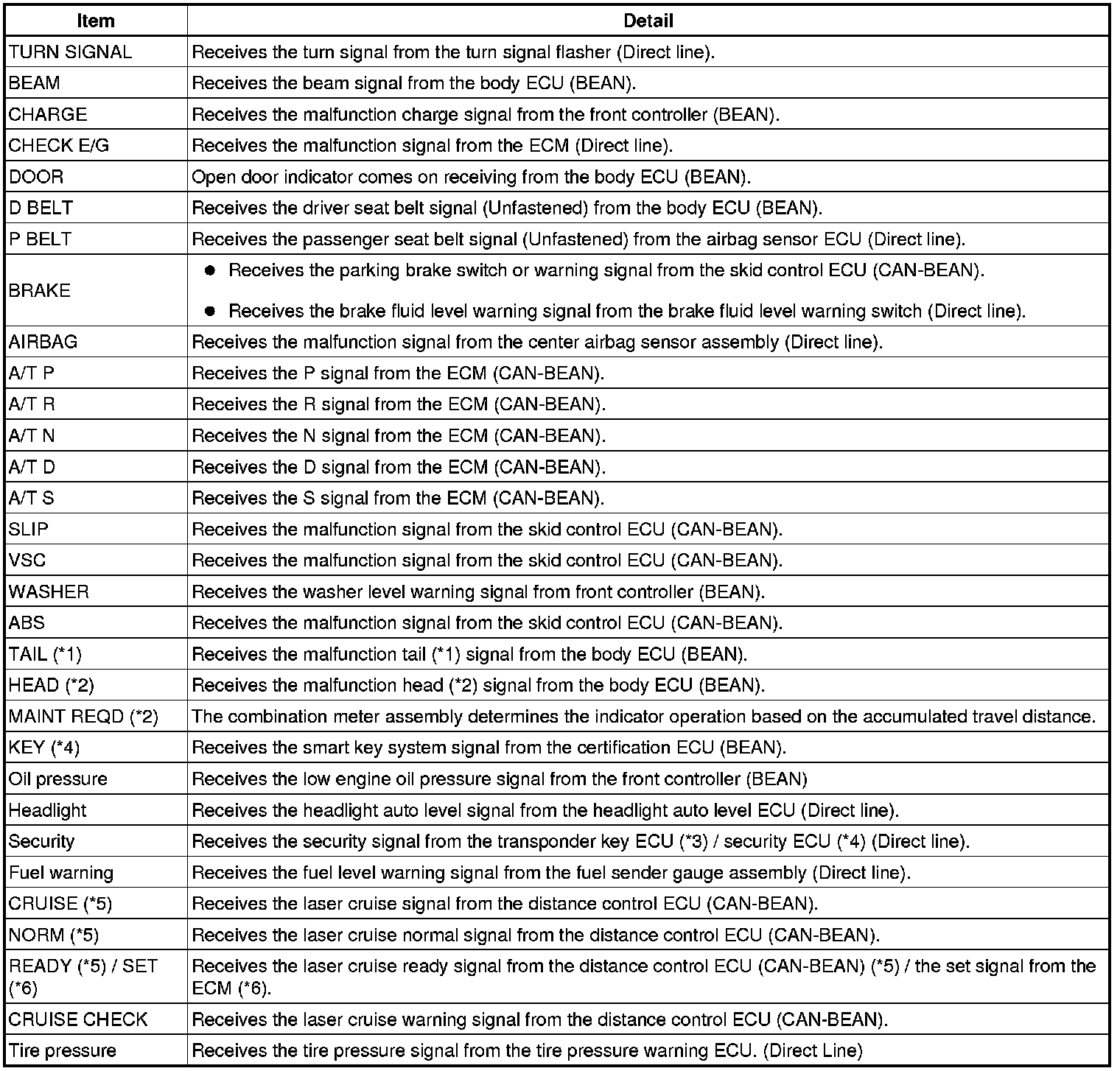

(b) WARNING/INDICATOR:

*1: Except U.S.A.
*2: U.S.A.
*3: without Smart key System
*4: with Smart key System
*5: with Dynamic Laser Cruise System
*6: with Cruise Control System
(c) MULTI-INFORMATION DISPLAY

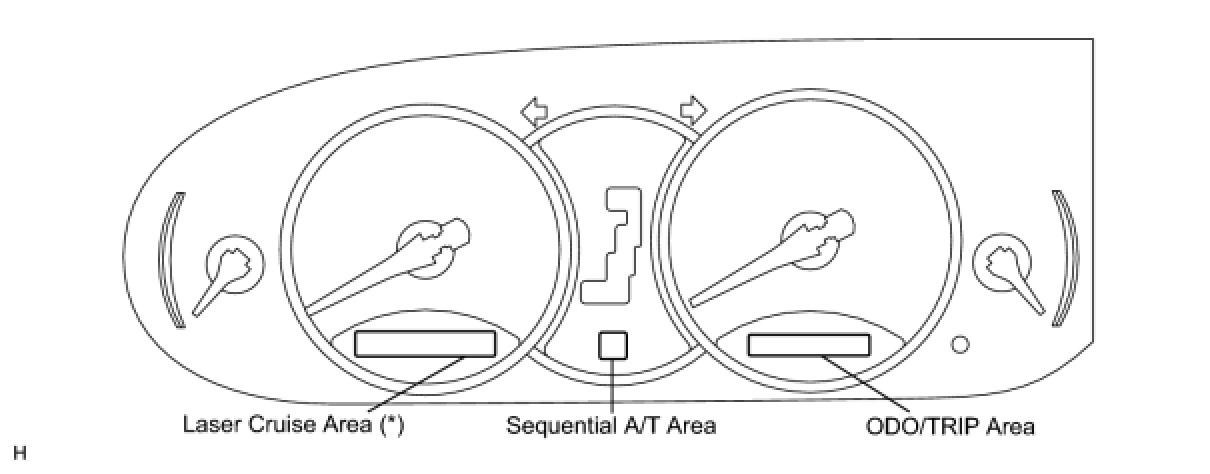

- The multi-information display consists of areas (Laser cruise area and ODO / TRIP area). These areas display the contents given in the table below.
- A steering pad switch (for multi-information display) that switches the contents of the multi-information display has been provided on the steering wheel.

2. ACCESSORY METER ASSEMBLY

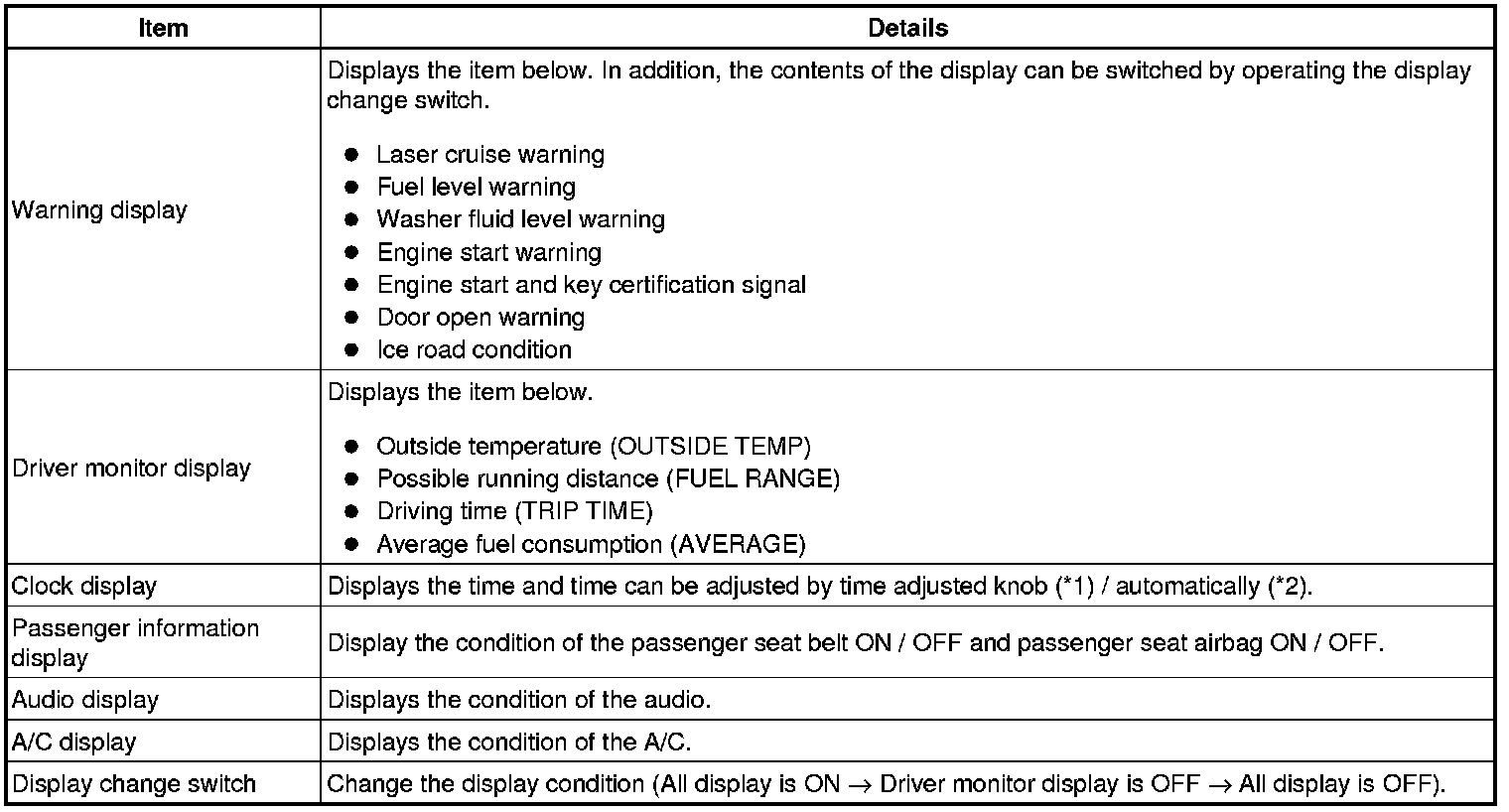

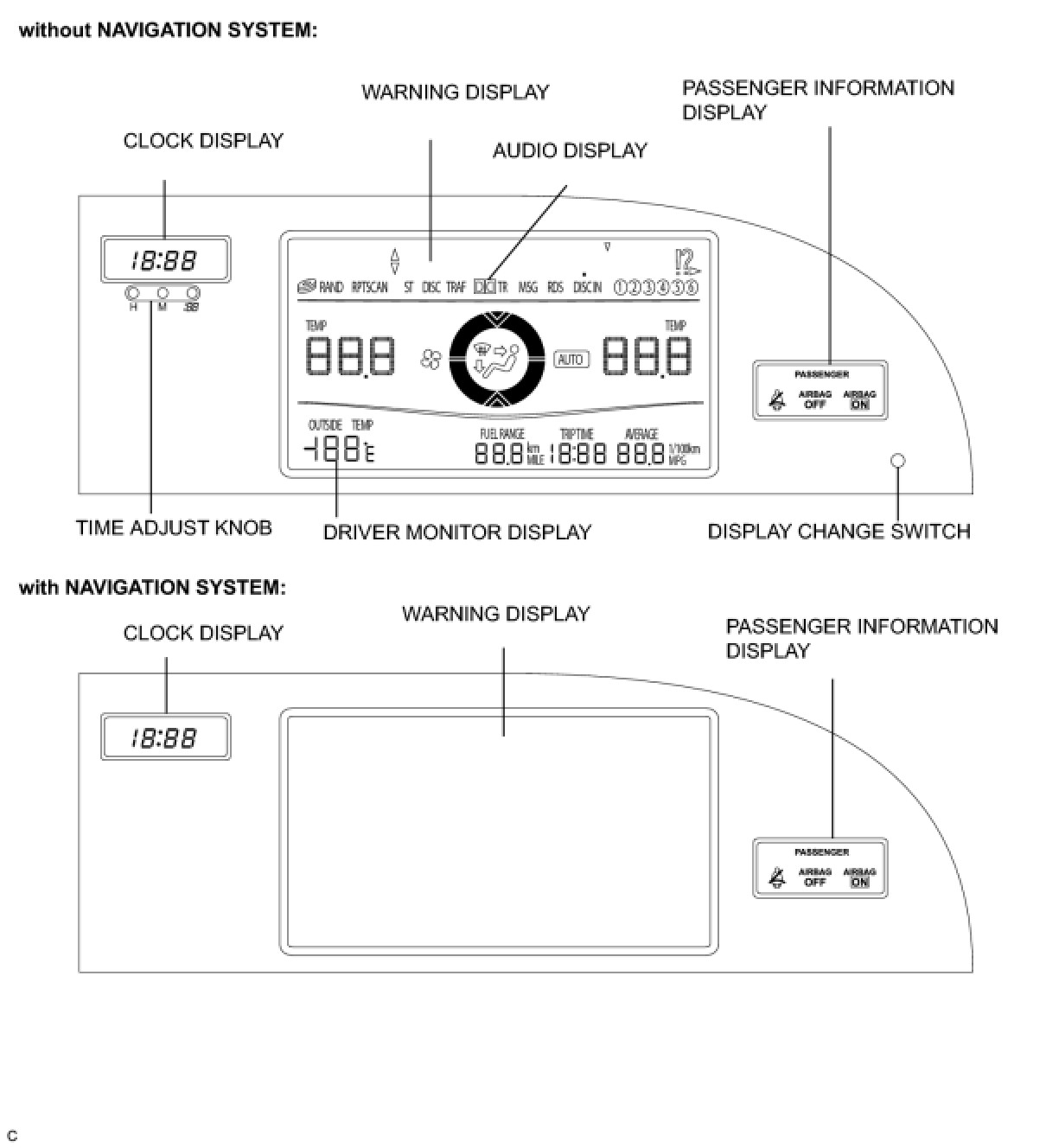

(a) The accessory meter assembly consists of six displays (clock display, warning display, audio display, A/C display, driver information display, and passenger information display). These areas display the contents given in the table below.

*1: without Navigation System
*2: with Navigation System
