METER: COMBINATION METER: DISASSEMBLY

DISASSEMBLY

1. REMOVE COMBINATION METER GLASS

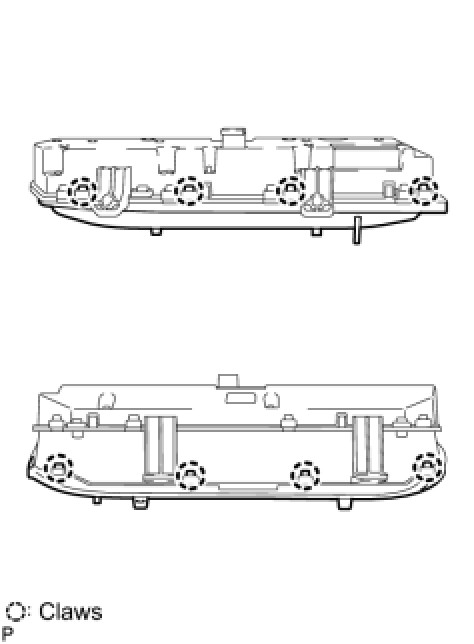

(a) Disengage the 8 claws and remove the combination meter glass.
