Removal

METER: COMBINATION METER: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

2. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.1 Removal
3. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2 Removal

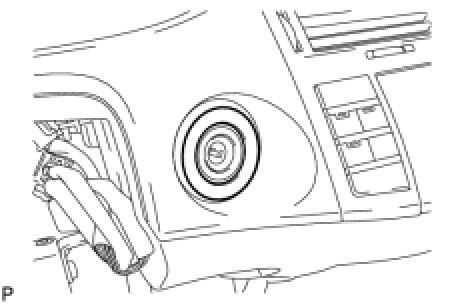

4. REMOVE INSTRUMENT PANEL FINISH PLATE (w/o Smart Key System)





(a) Remove the instrument panel finish plate.

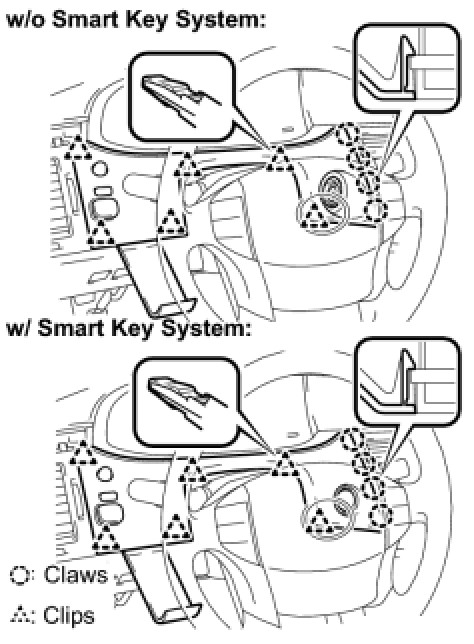

5. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY





(a) Using a moulding remover, disengage the 4 claws and 6 clips then remove the instrument panel sub-assembly.
6. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
7. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

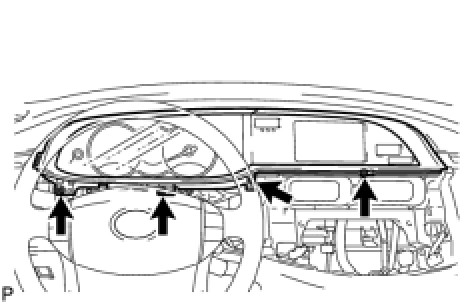

(a) Remove the 4 screws.

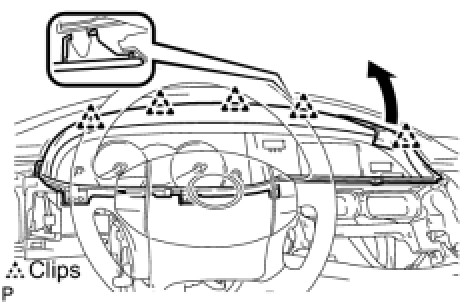

(b) Using a moulding remover, disengage the 5 clips and remove the instrument cluster finish panel sub-assembly.

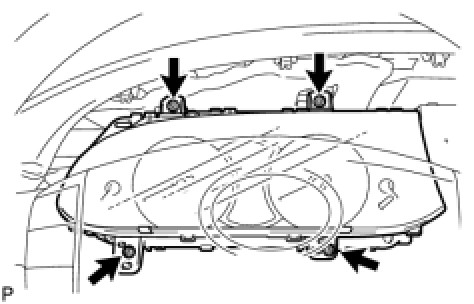

8. REMOVE COMBINATION METER ASSEMBLY





(a) Remove the 4 screws.
(b) Pull out combination meter assembly, then disconnect the connectors.
