Instrument Panel, Gauges and Warning Indicators: Locations








METER: METER / GAUGE SYSTEM: PARTS LOCATION

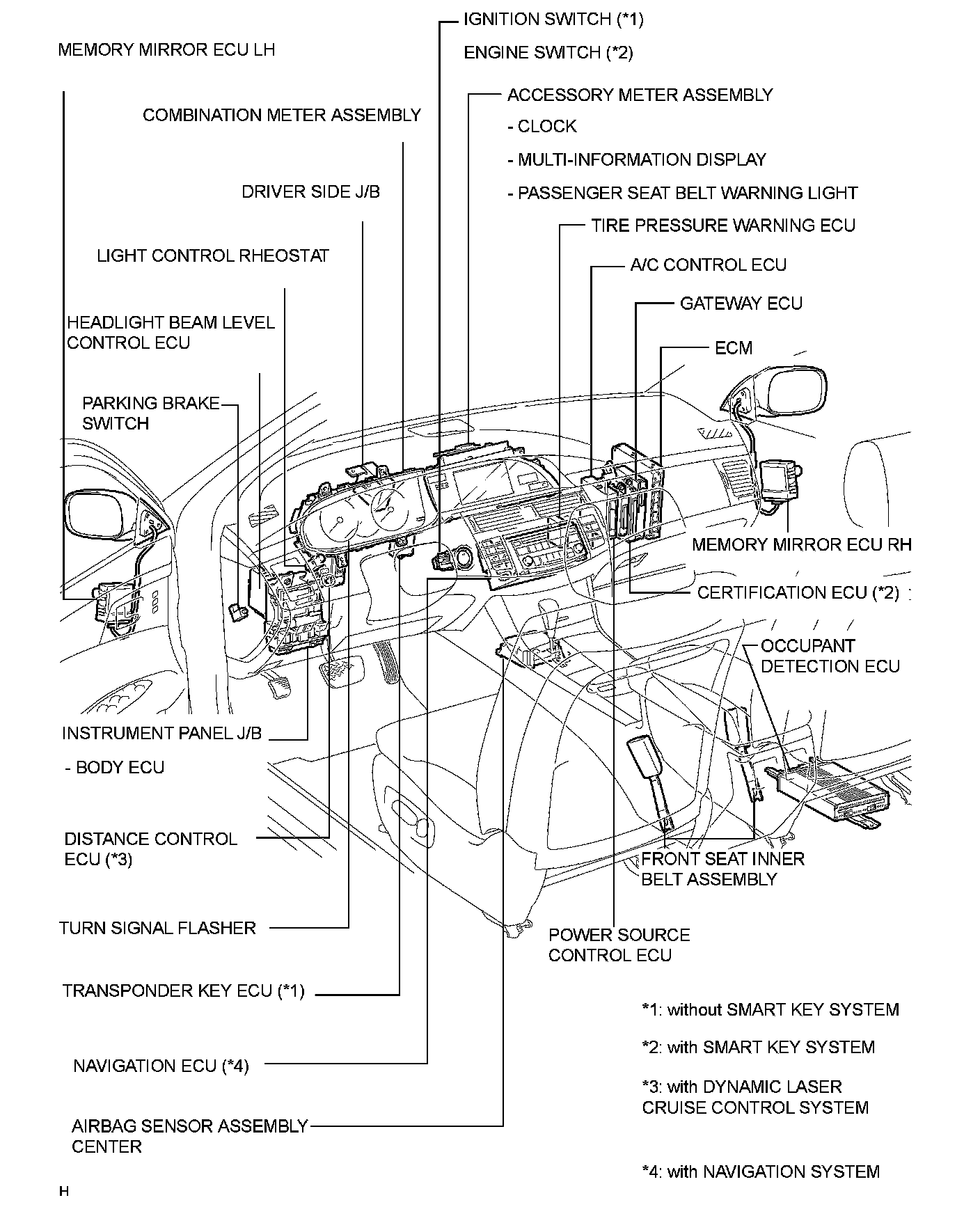

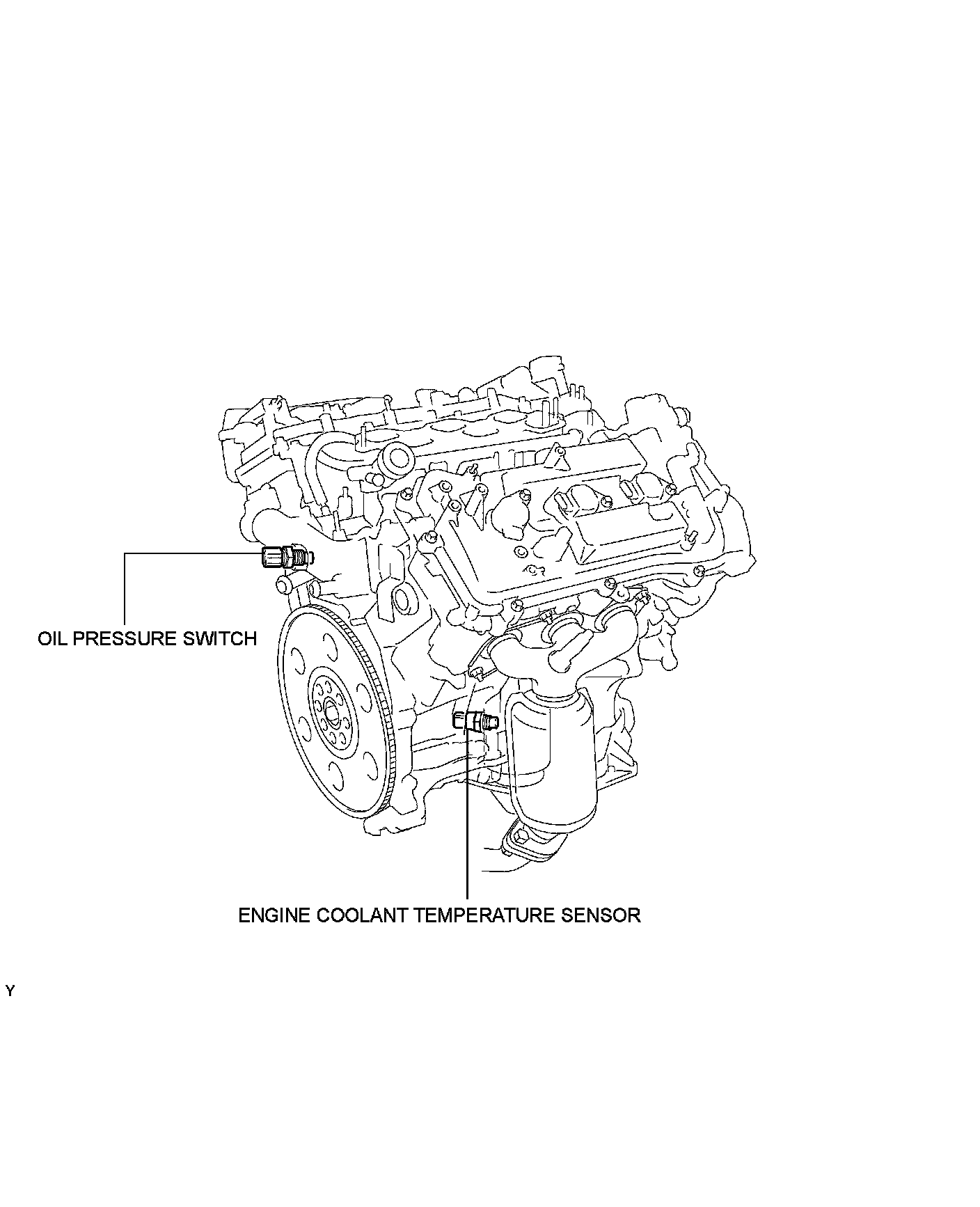

PARTS LOCATION

ILLUSTRATION
