Instruments - Compass Calibration Procedure

T-SB-0153-08

August 5, 2008

Initial Calibration of Compass During PDS

Service Category
General

Section
Pre-Delivery Service

Market
USA

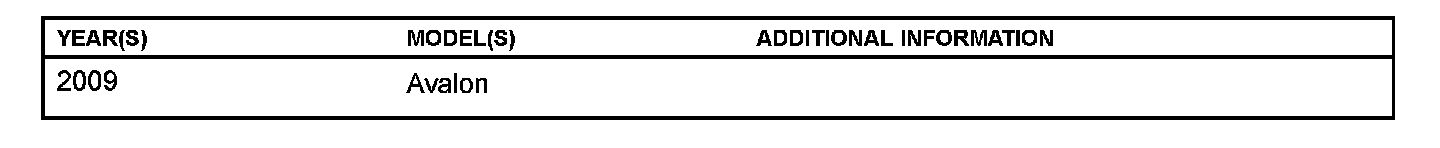

Applicability

Introduction





Some 2009 model year Avalon vehicles are equipped with a compass in the rear view mirror. Use the following procedure to complete initial calibration of the compass during Pre-Delivery Service (PDS).

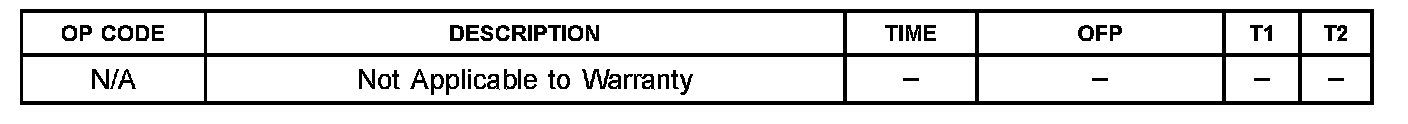

Warranty Information

Compass Calibration Procedure

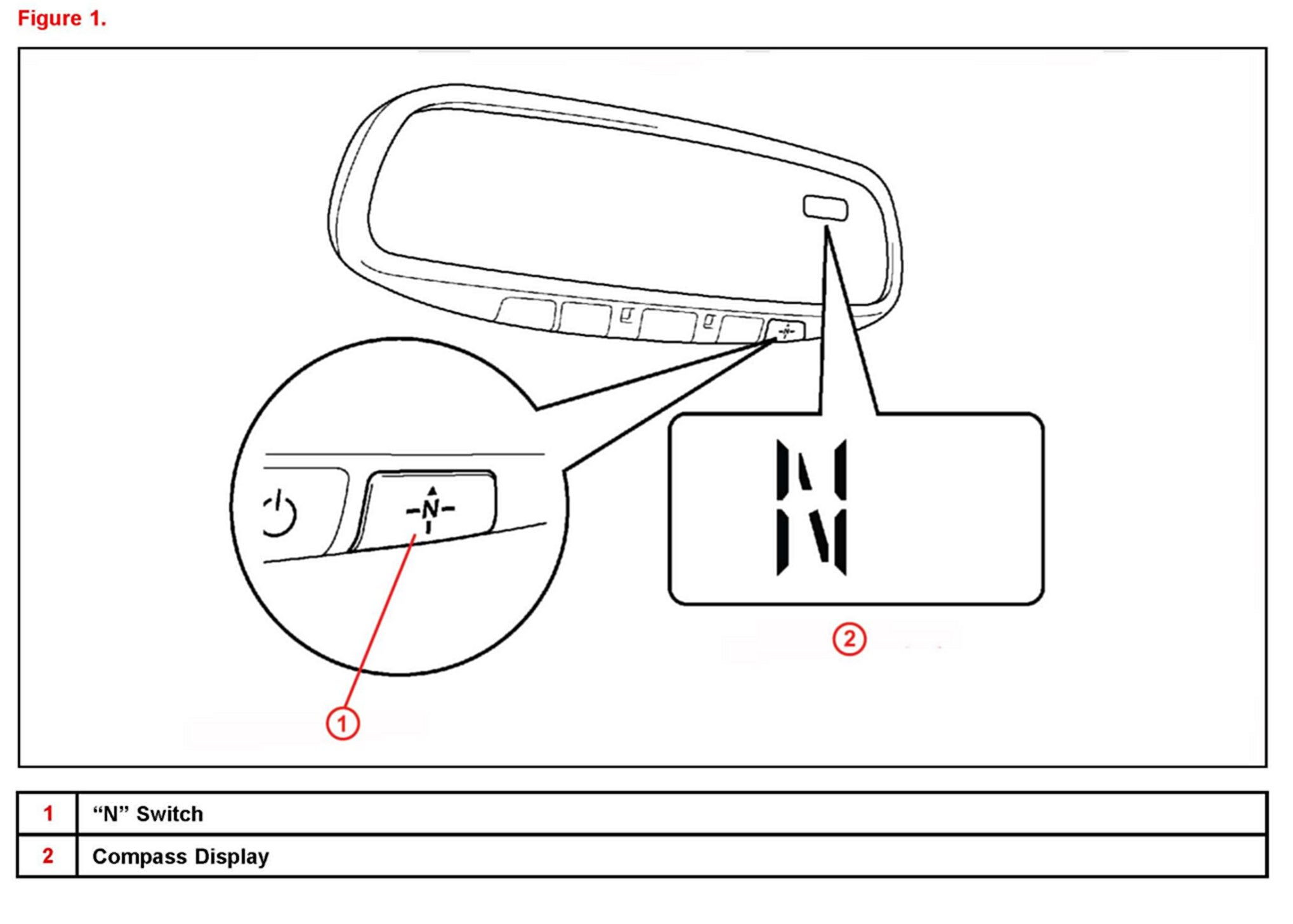

1. Turn the ignition switch to the "IG-ON" position and check that the direction (N, NE, E, SE, S, SW W NW) appears on the compass display.

NOTE
Pushing the "N" switch turns the compass display ON or OFF.

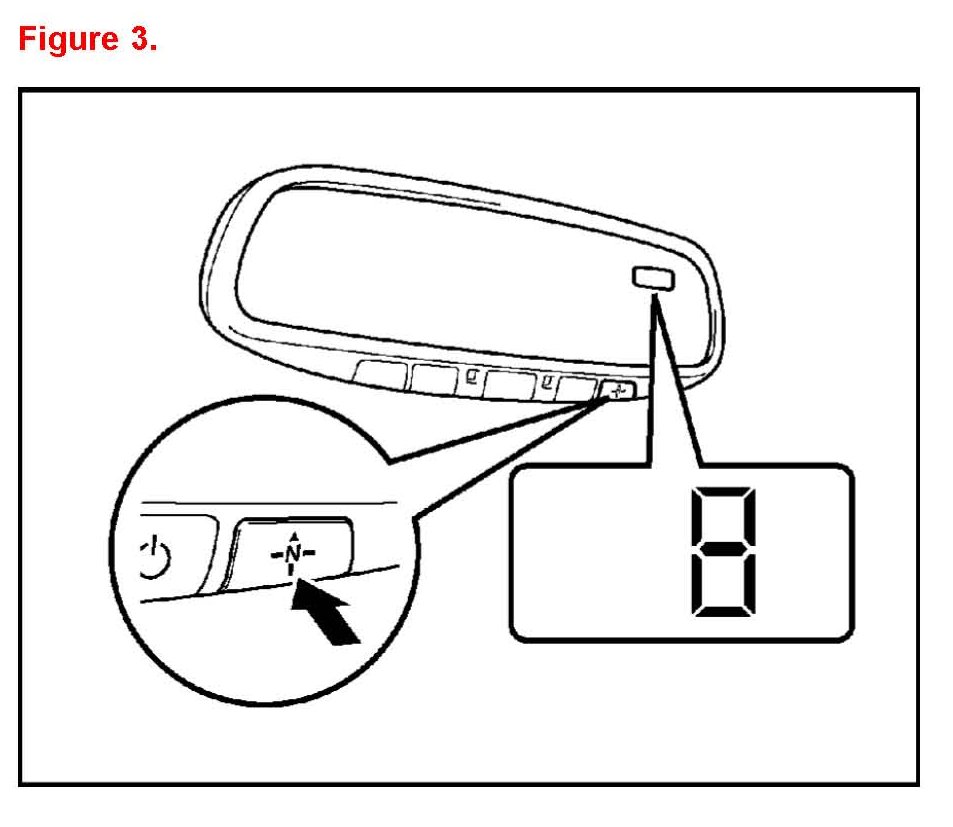

2. Push and hold the "N" switch for approximately 3 seconds until the zone number (1-15) appears on the display. Then push the switch to select the number of the zone where the vehicle is located.

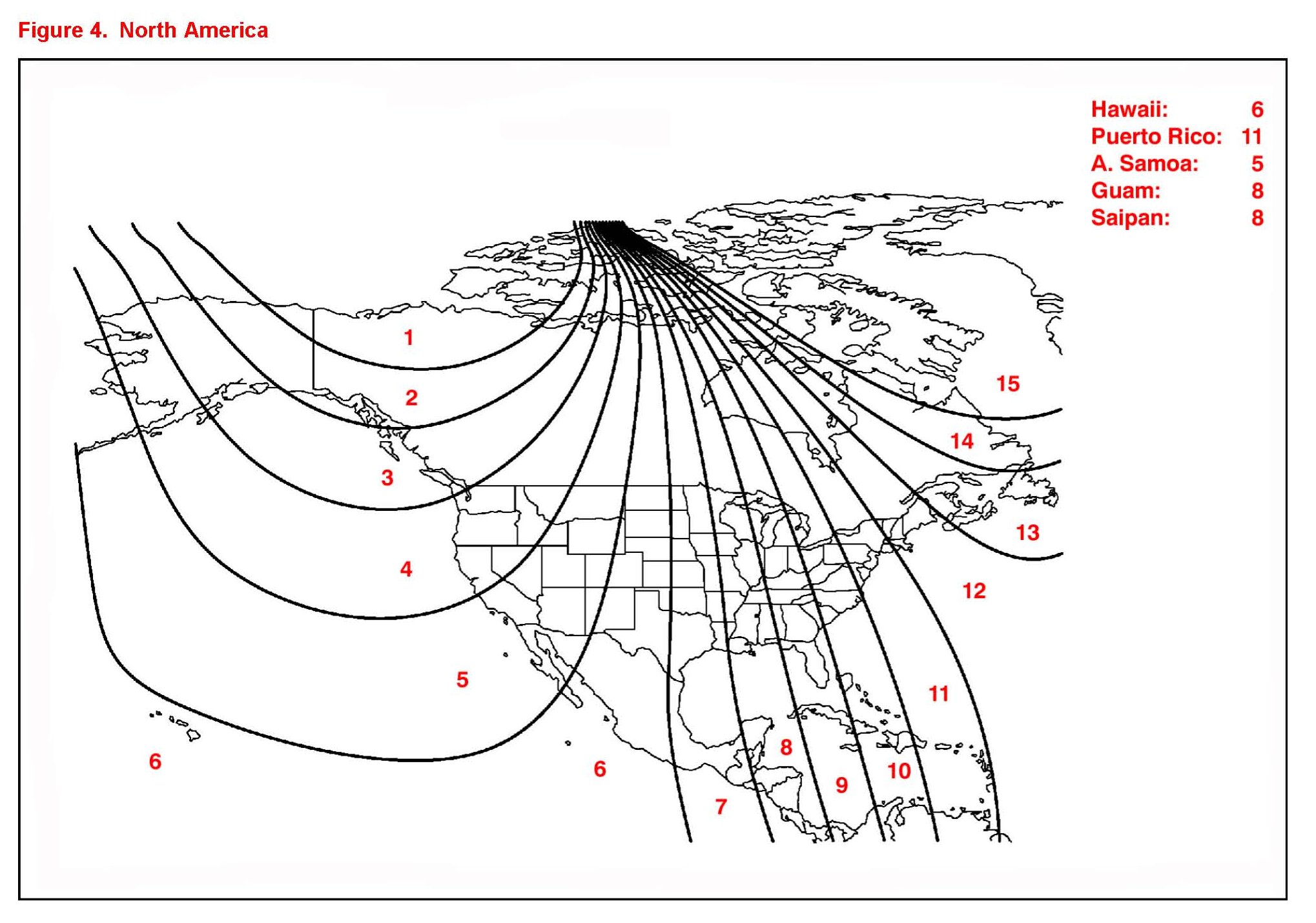

See Figure 4 for zone reference.

3. Once the correct zone is selected check that the direction appears.

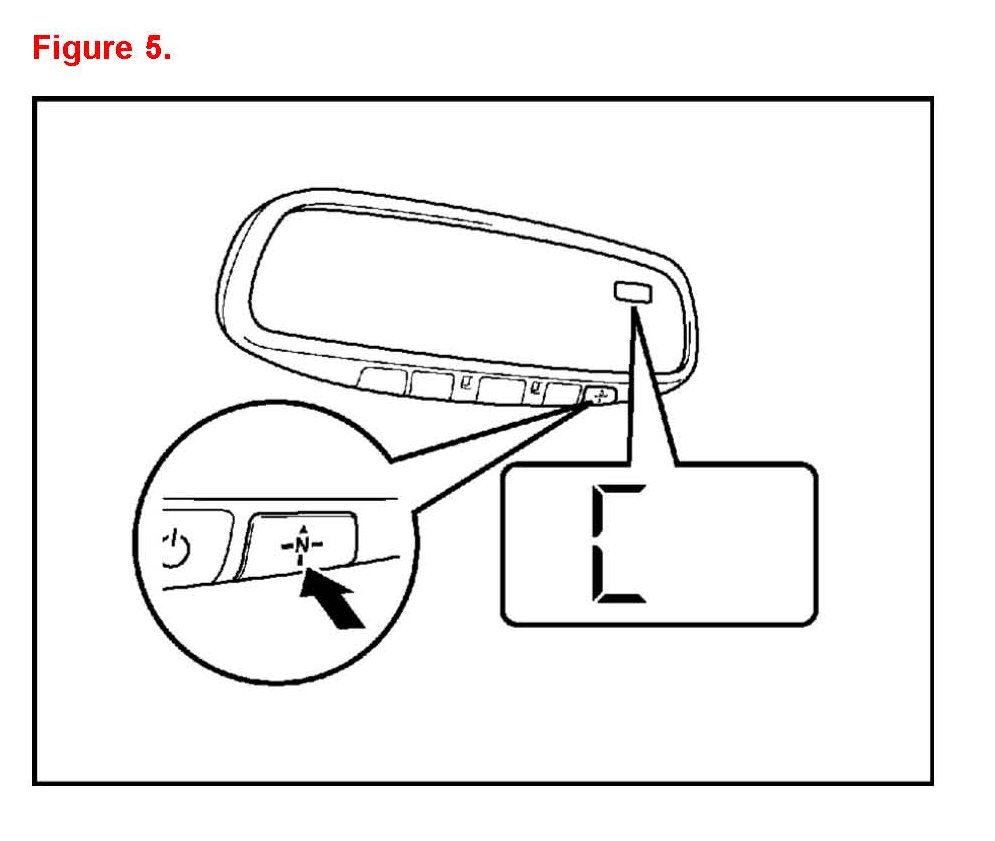

4. Start the engine and push and hold the switch for about 6 seconds until "C" appears on the display.

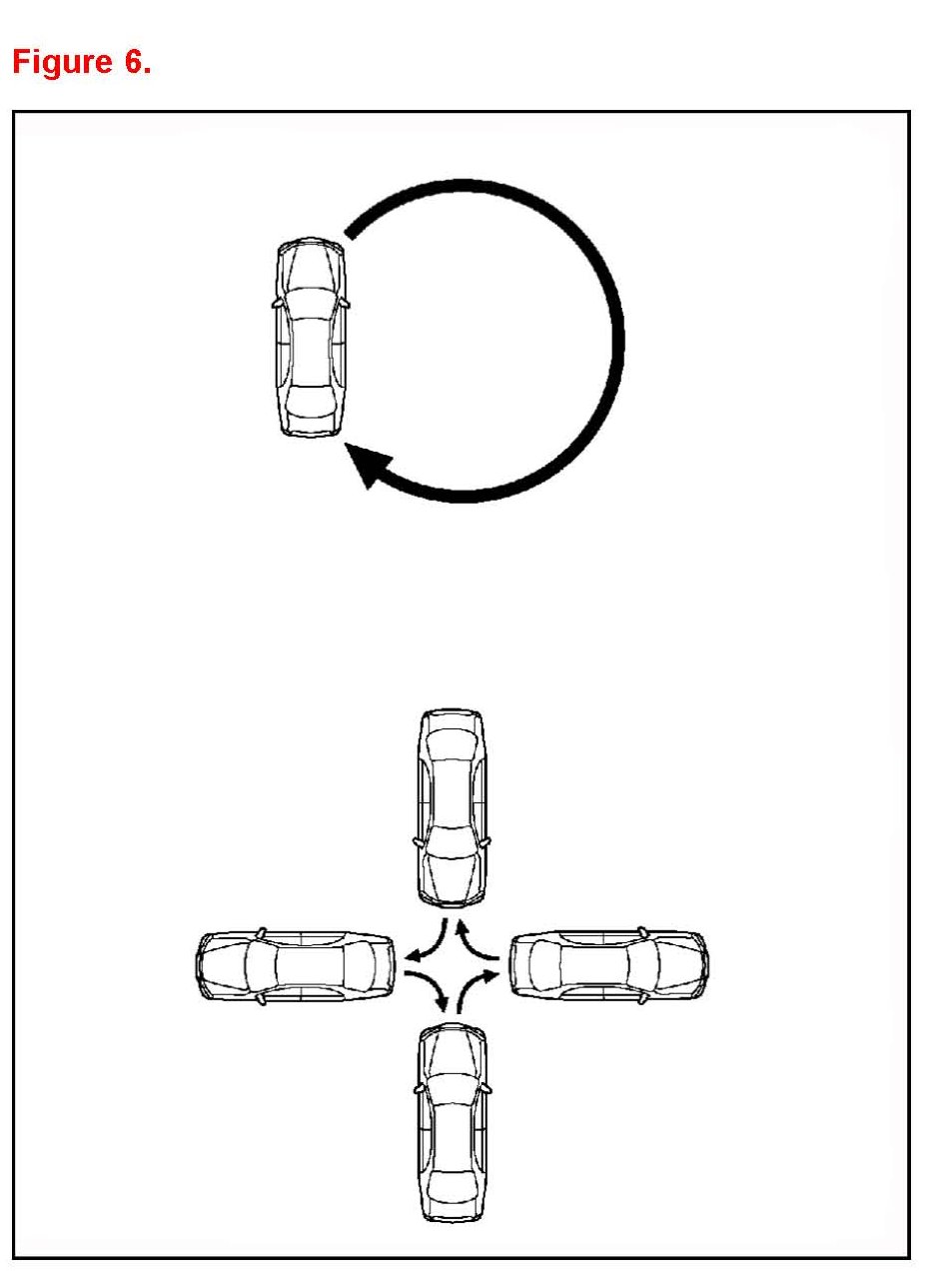

5. Drive the vehicle slowly at 5 mph (8 km/h) or less in a circle until the direction is displayed. If there is NOT enough space to drive in a circle drive around the block until the direction is displayed.

Once the direction is displayed calibration is complete.

NOTE

^ Do NOT perform calibration of the compass in a place where the Earth's magnetic field is subject to interference (underground parking, under a steel tower; between buildings, roof parking, near a railroad crossing, near a large vehicle, etc.)

^ During calibration, do NOT operate electric systems (moon roof, power windows, etc.) as they may interfere with the calibration.
