Pinout Values and Diagnostic Parameters

METER: METER / GAUGE SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

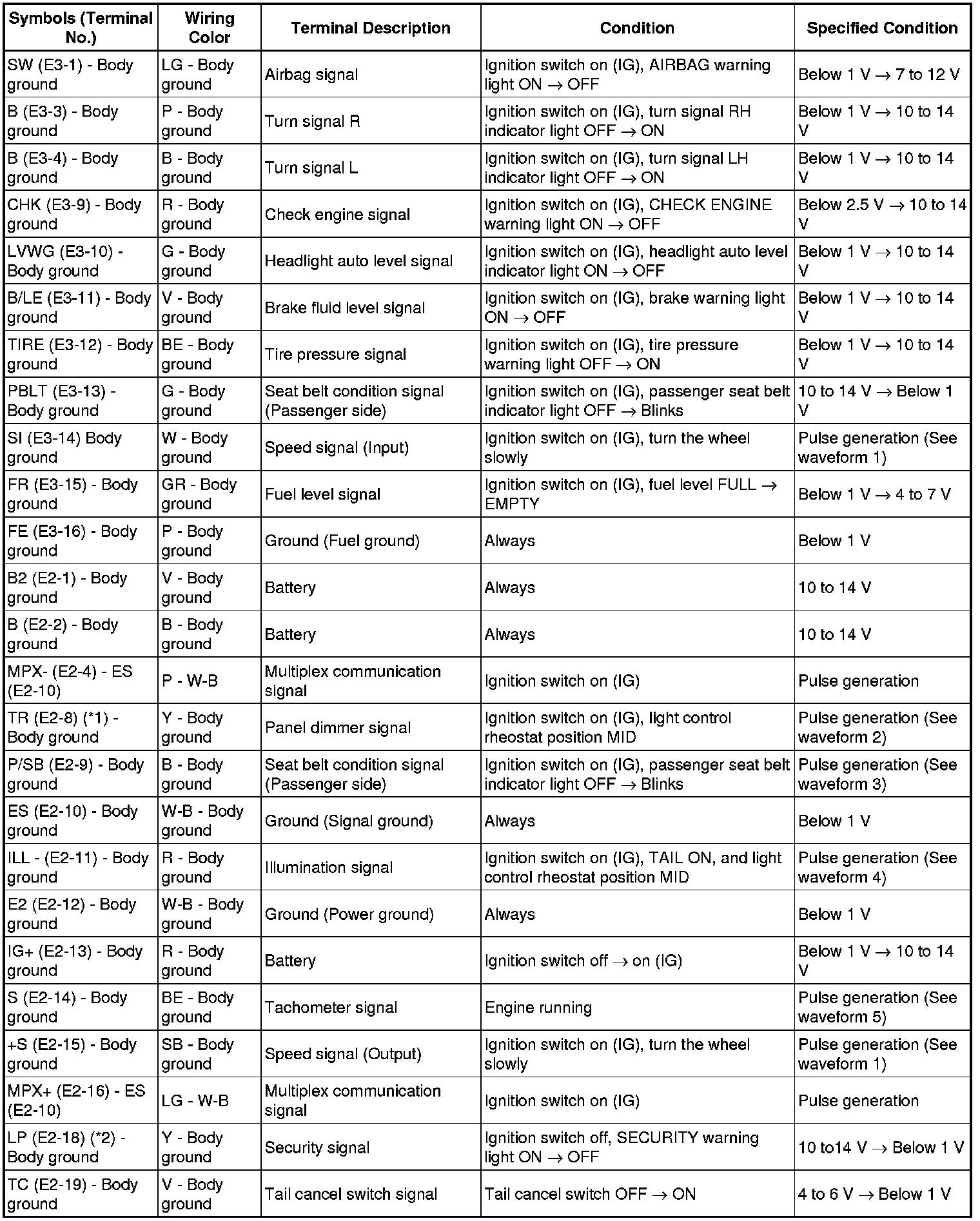

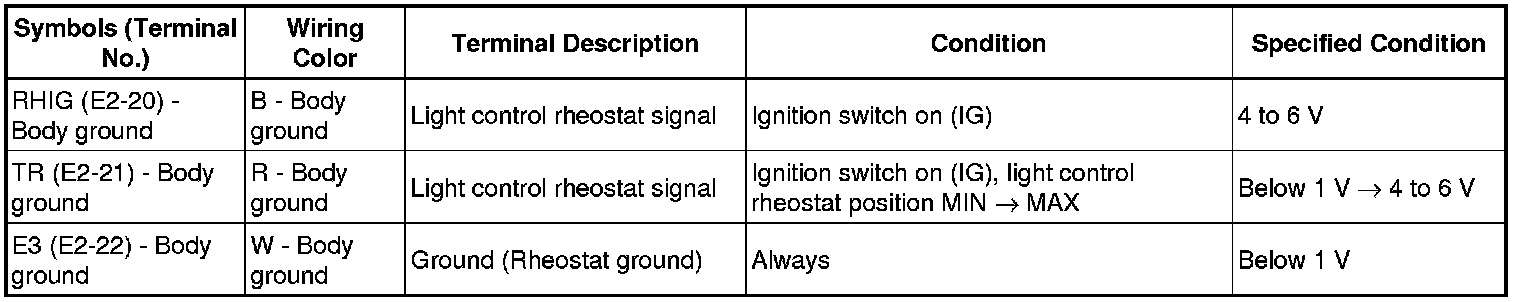

1. COMBINATION METER ASSEMBLY













*1: w/o Navigation System
*2: w/ Theft Deterrent System

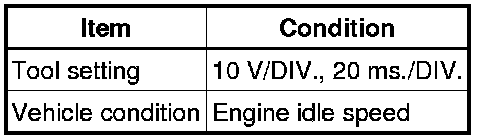

(a) Waveform 1 (Reference): Using an oscilloscope:

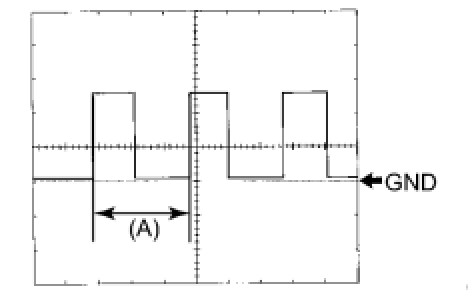

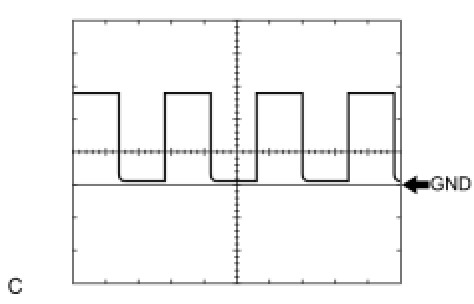

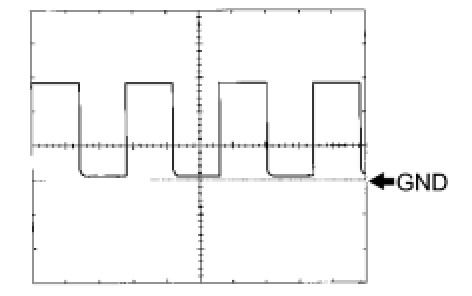

HINT: When the system is functioning normally, one wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.

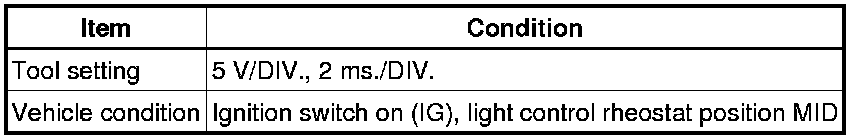

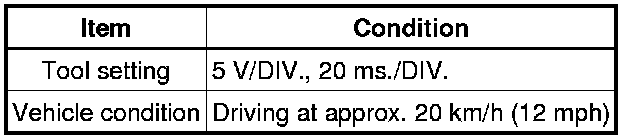

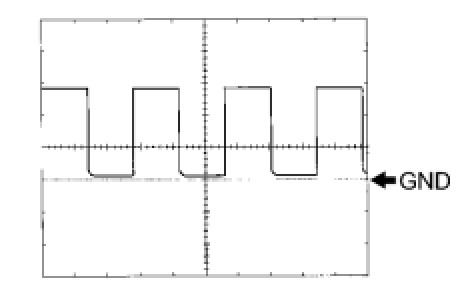

(b) Waveform 2 (Reference): Using an oscilloscope:

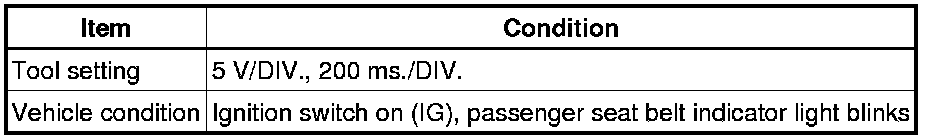

(c) Waveform 3 (Reference): Using an oscilloscope:









(d) Waveform 4 (Reference): Using an oscilloscope:

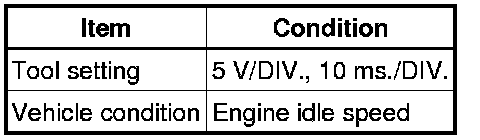

(e) Waveform 5 (Reference): Using an oscilloscope:

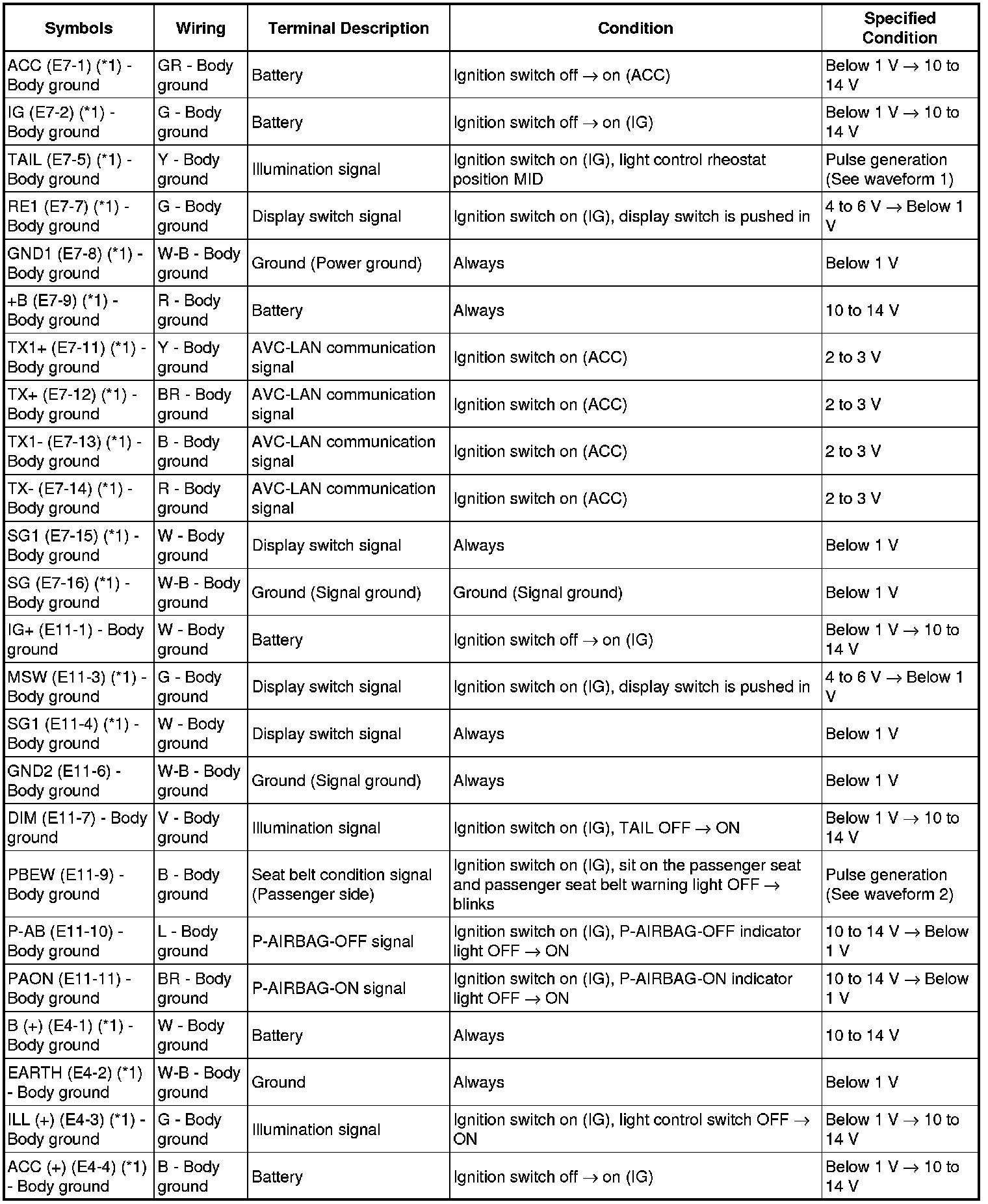

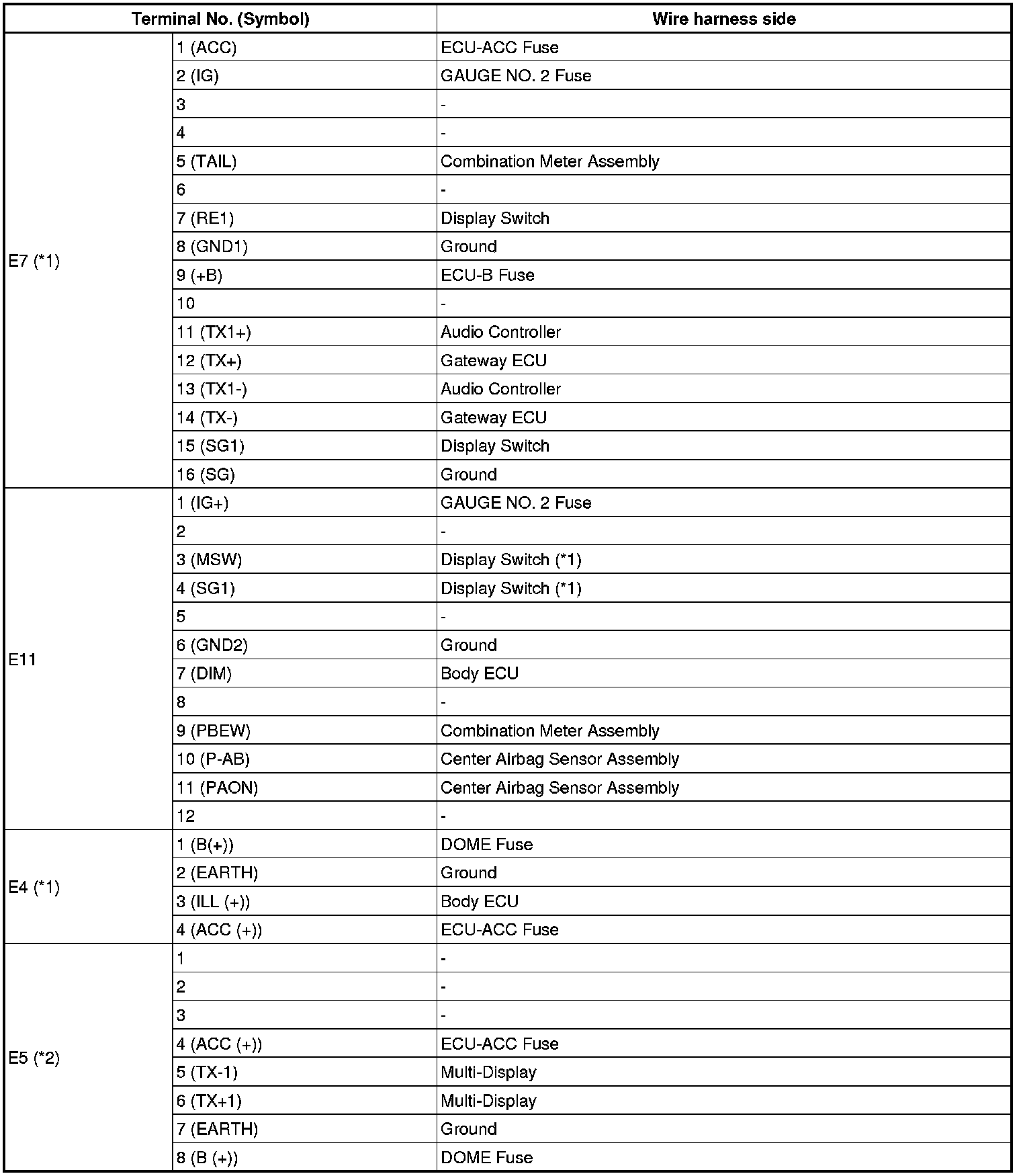

2. ACCESSORY METER ASSEMBLY













*1: w/o Navigation System
*2: w/ Navigation System

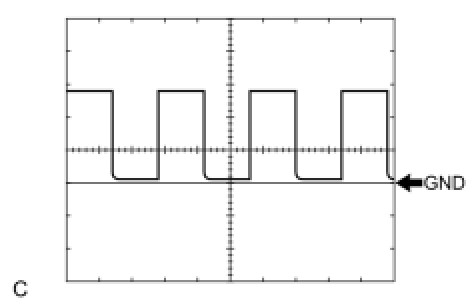

(a) Waveform 1 (Reference): Using an oscilloscope:









(b) Waveform 2 (Reference): Using an oscilloscope:

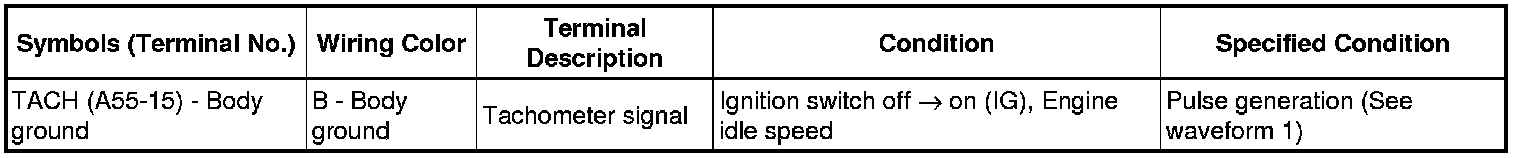

3. ECM

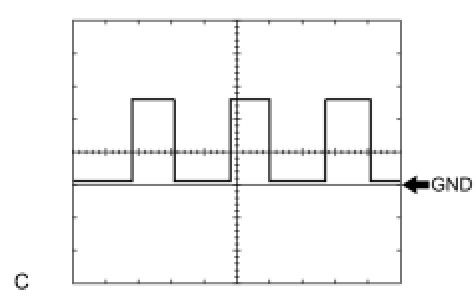

(a) Waveform 1 (Reference): Using an oscilloscope:

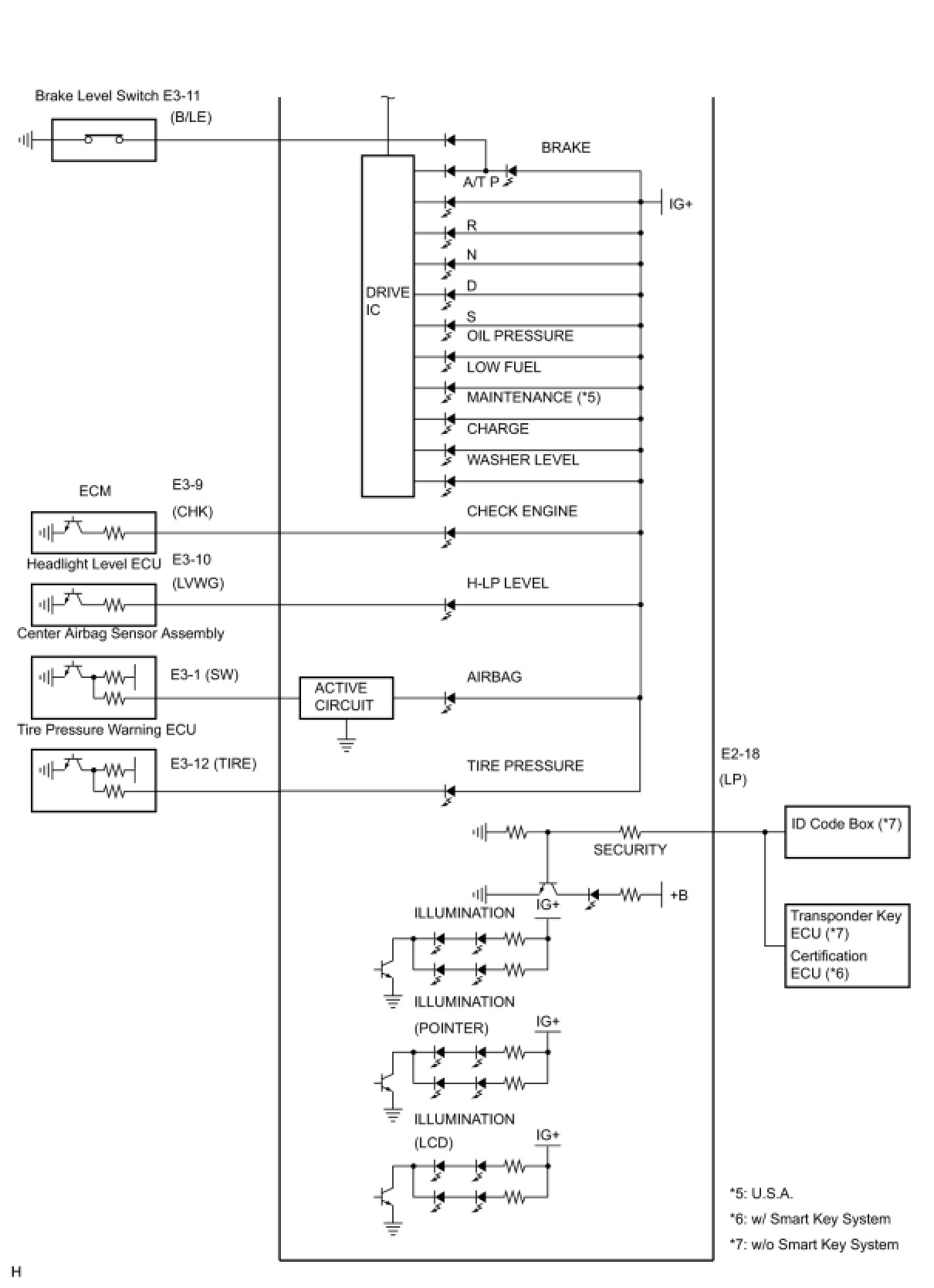

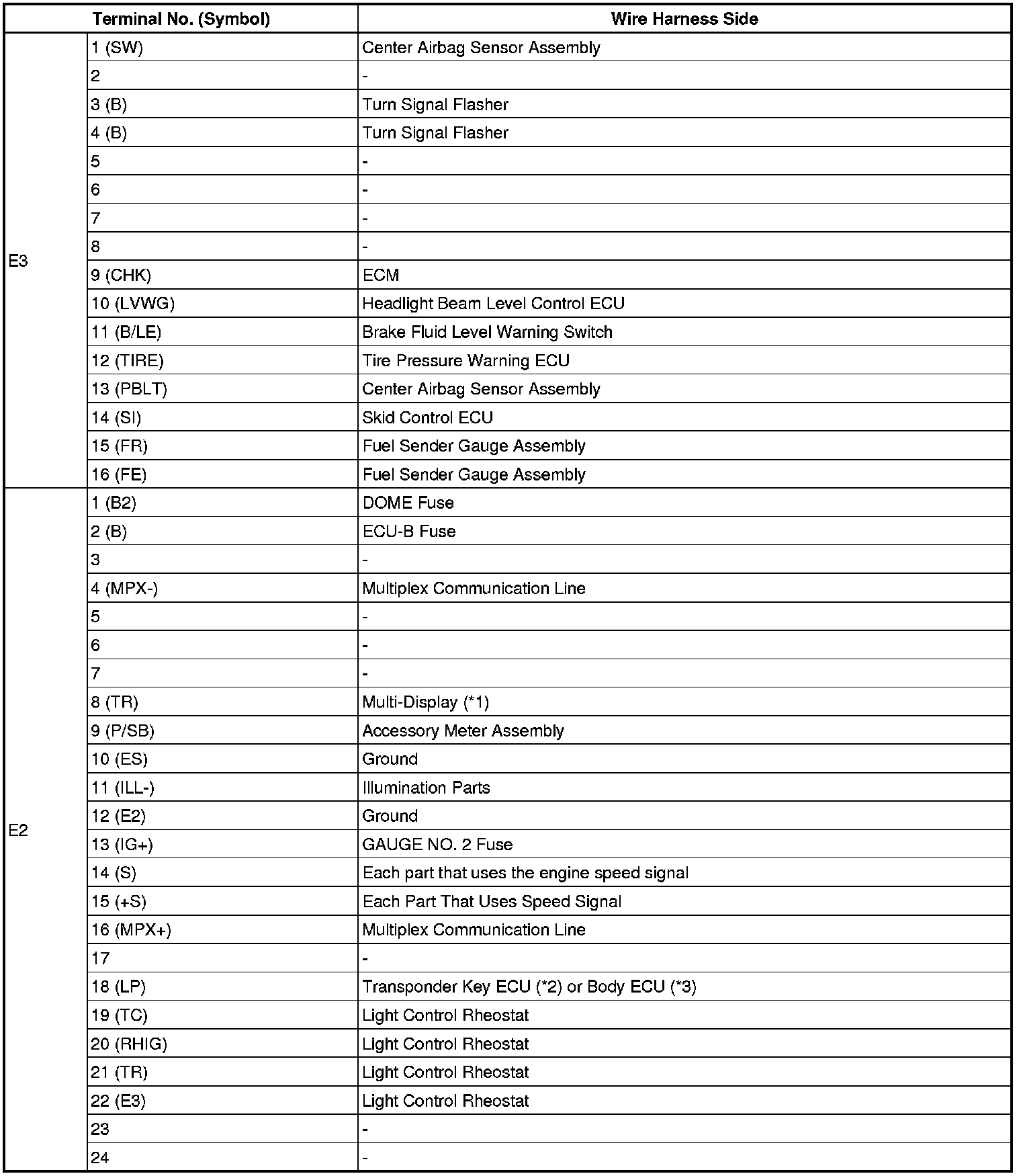

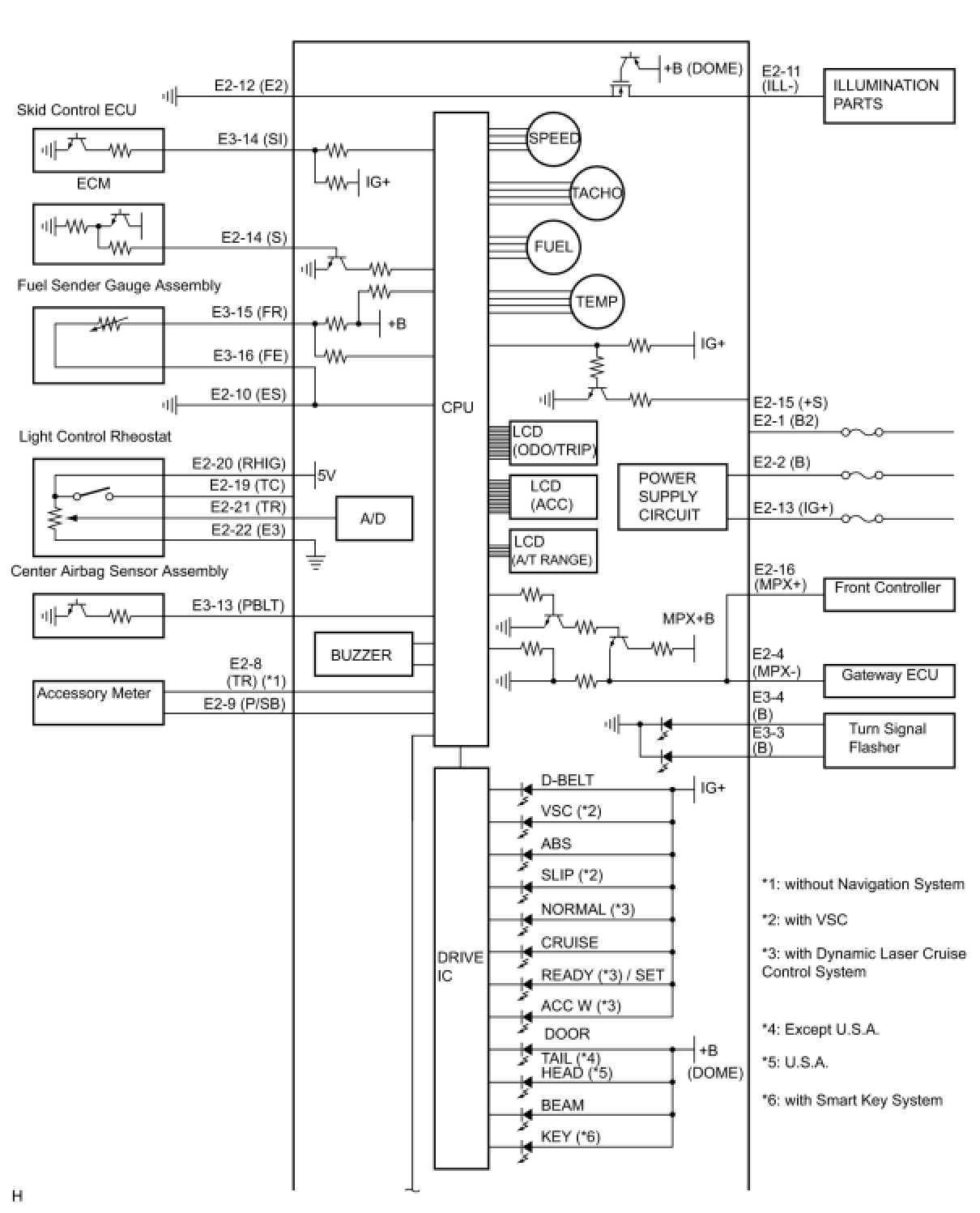

4. COMBINATION METER INNER CIRCUIT

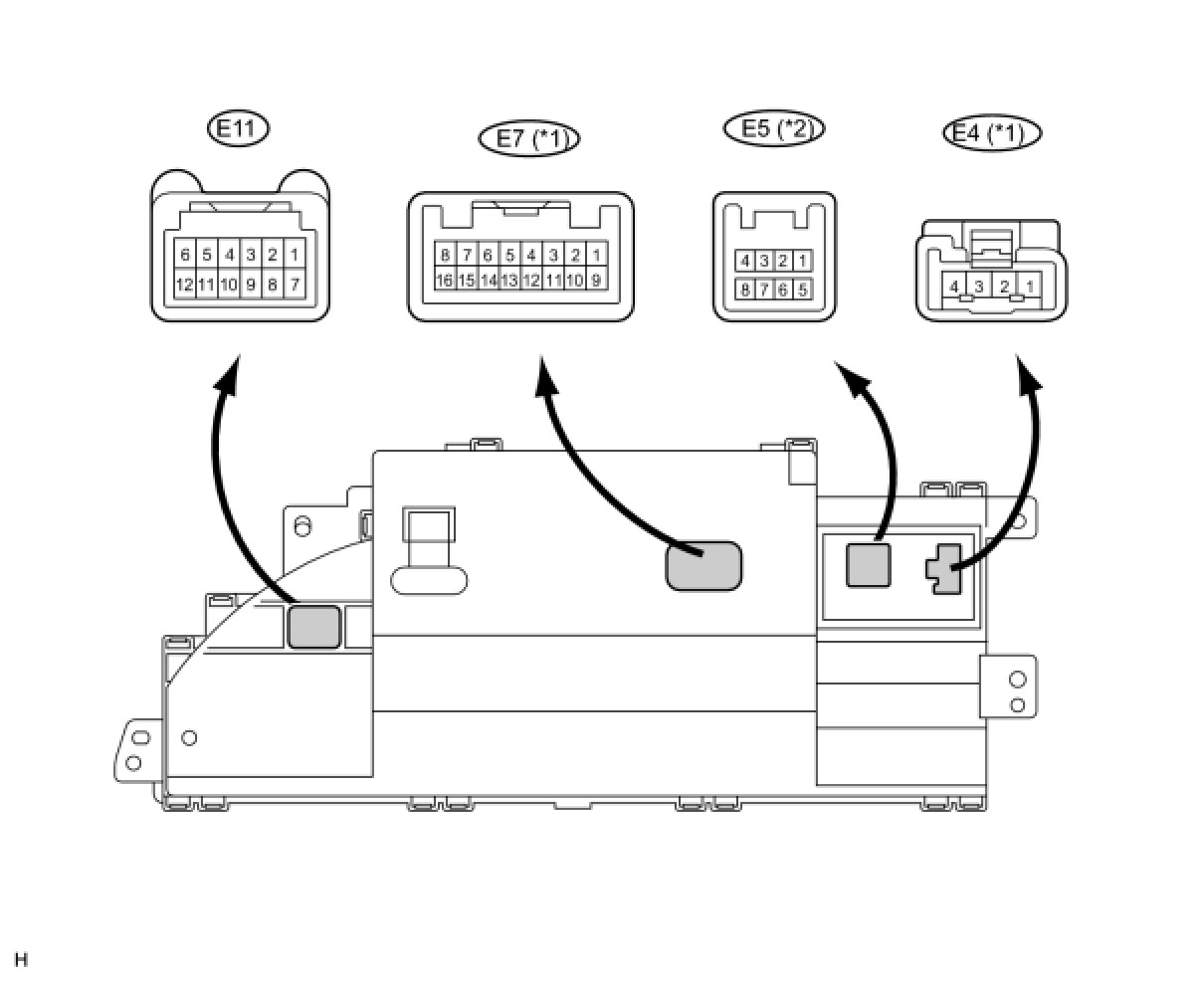

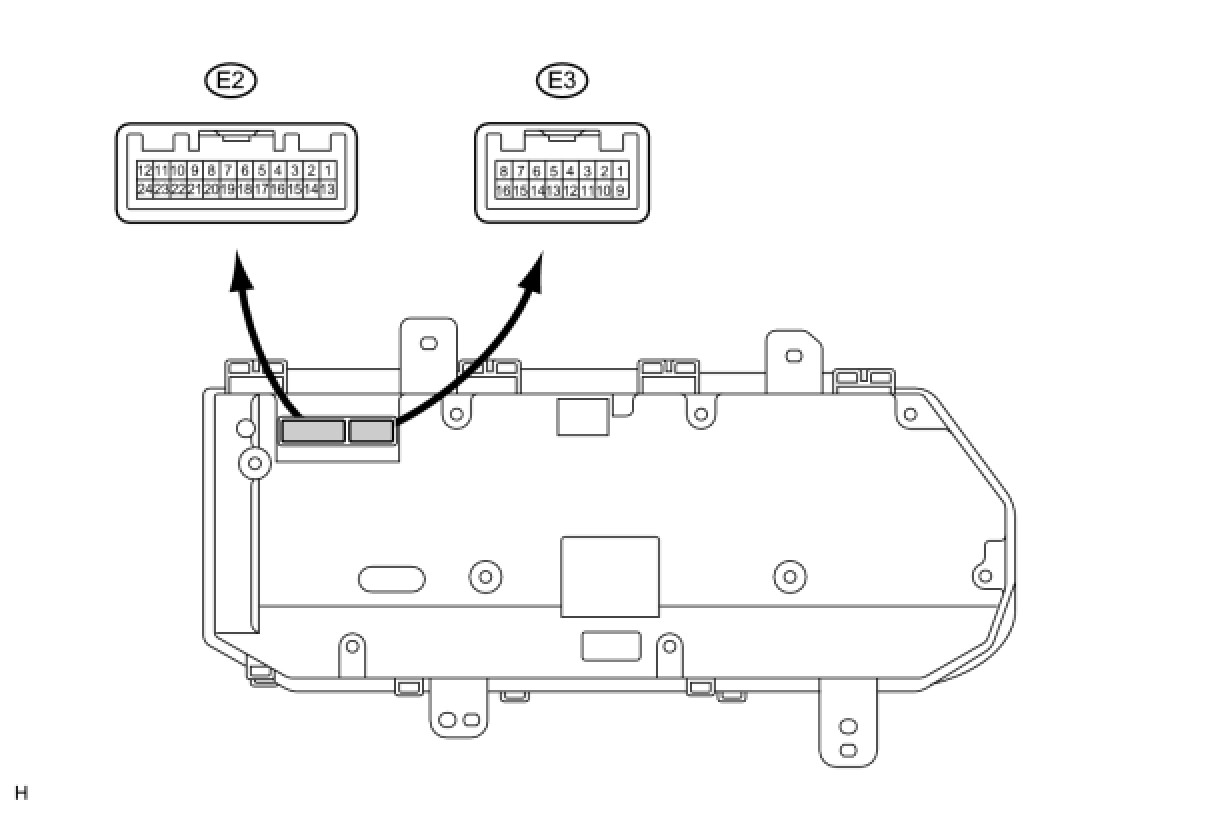

Connectors:





*1: w/o Navigation System
*2: w/o Smart Key System
*3 w/ Smart Key System

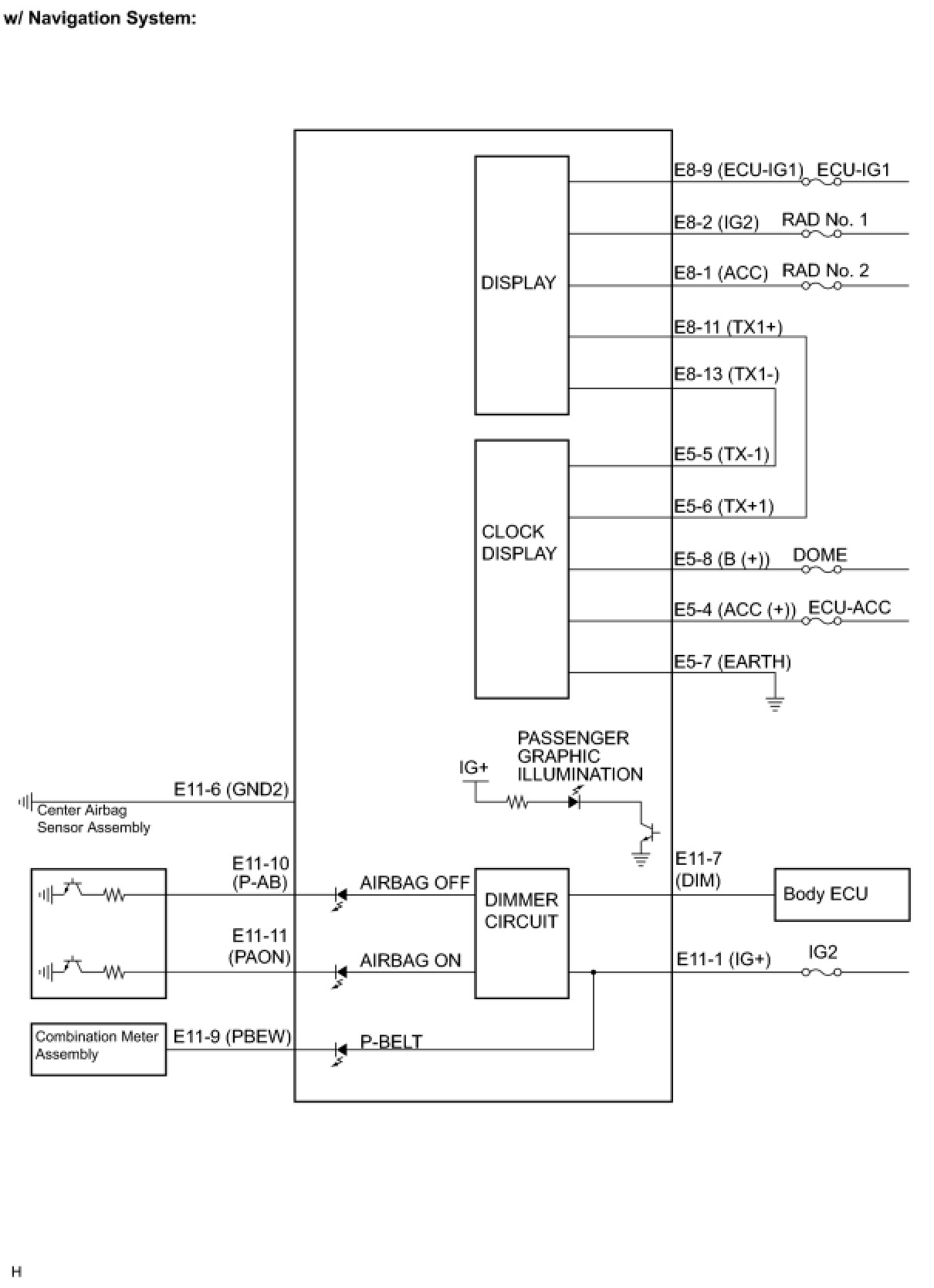

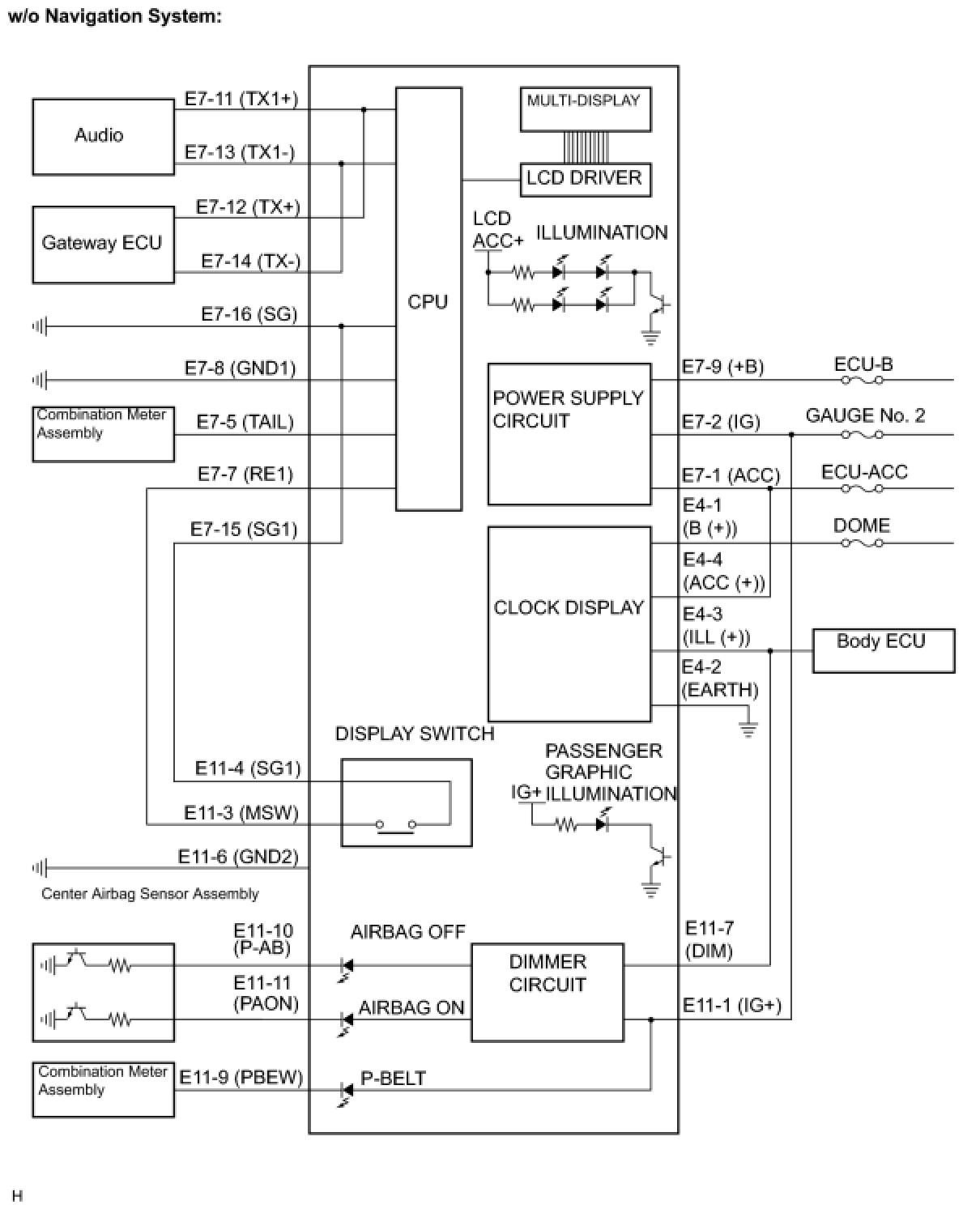

5. ACCESSORY METER INNER CIRCUIT













*1: w/o Navigation System
*2: w/ Navigation System
