Problem Symptoms Table








METER: METER / GAUGE SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

MALFUNCTION SYSTEM:

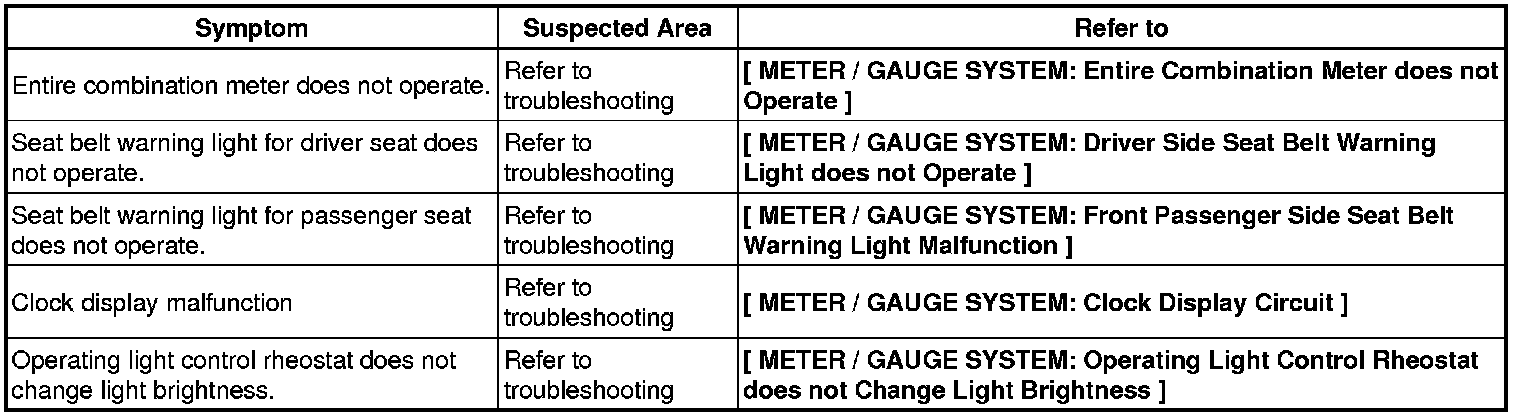

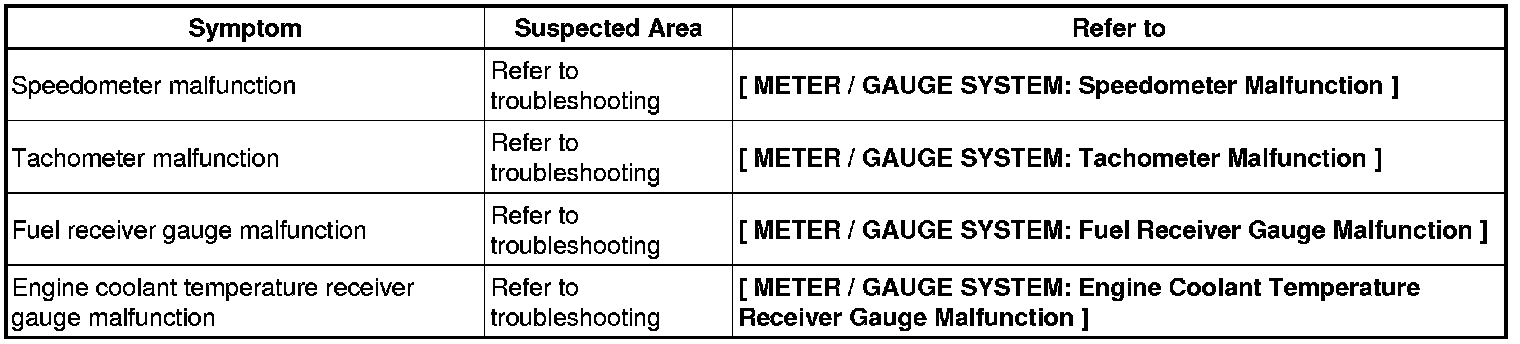

METER GAUGES:

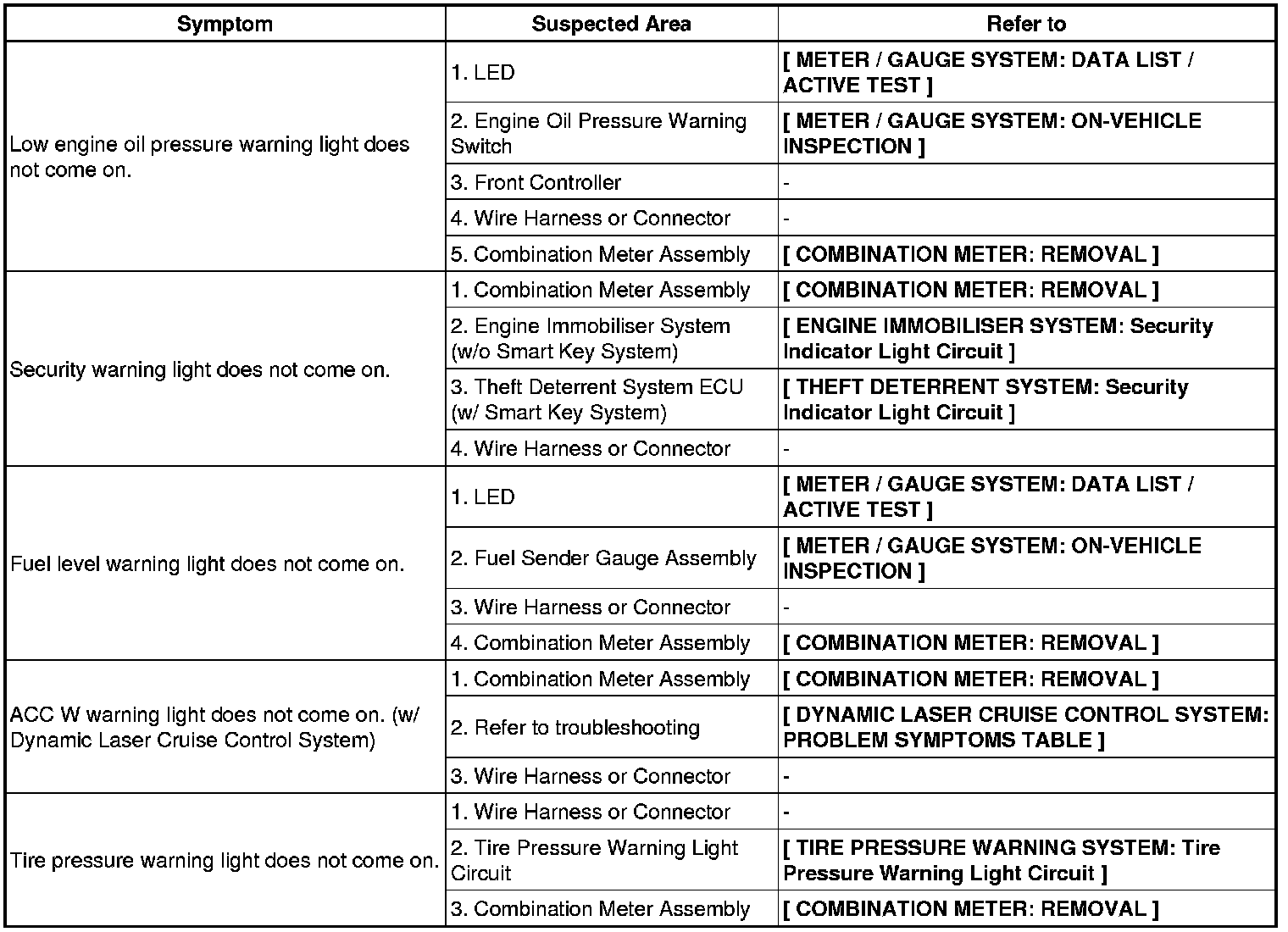

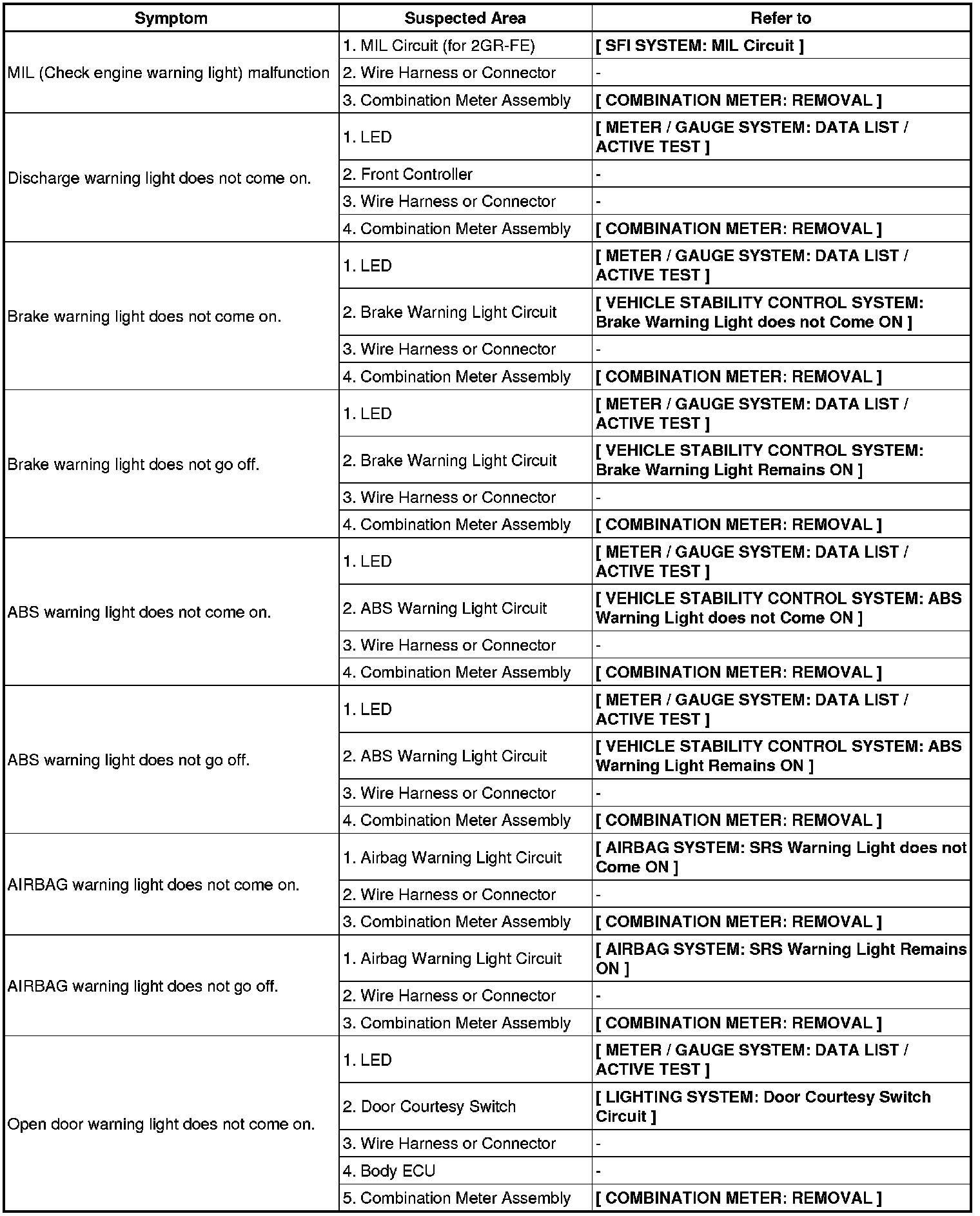

WARNING LIGHTS:

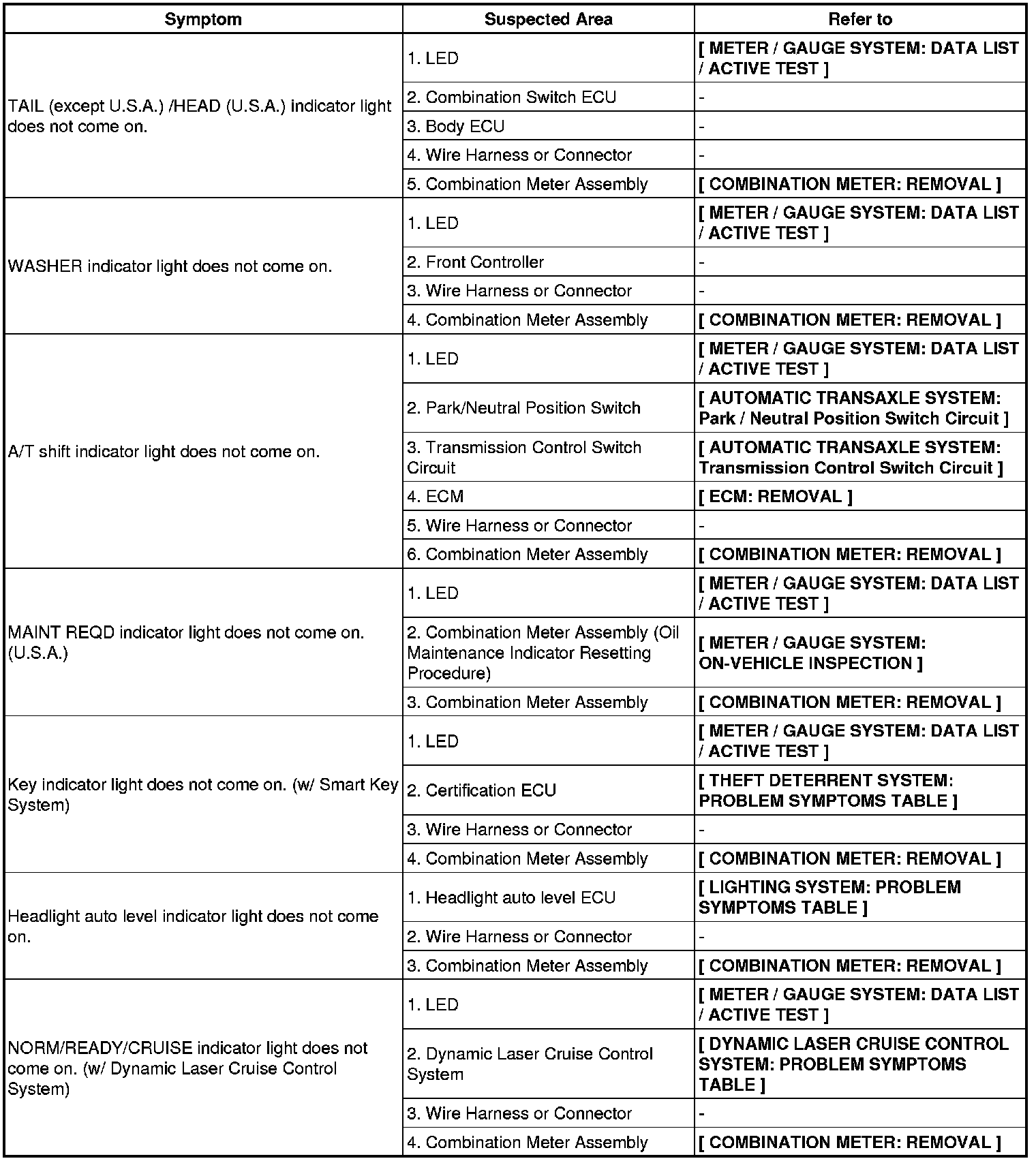

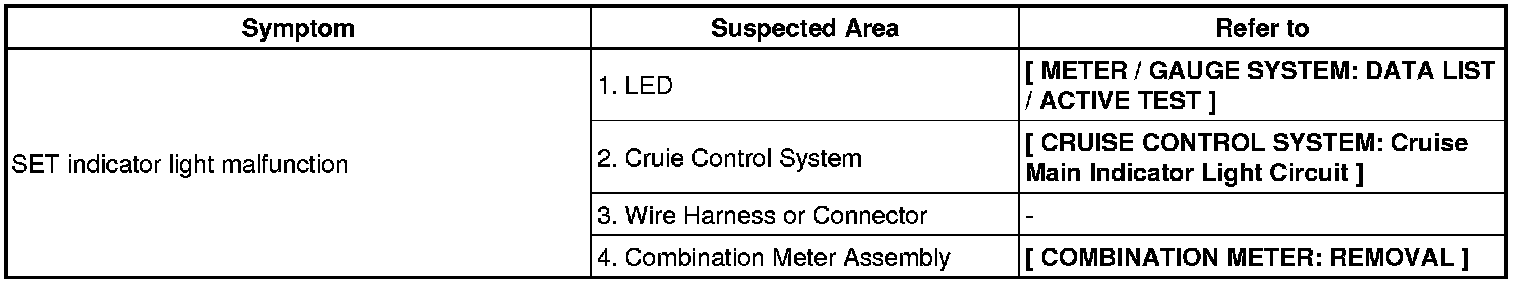

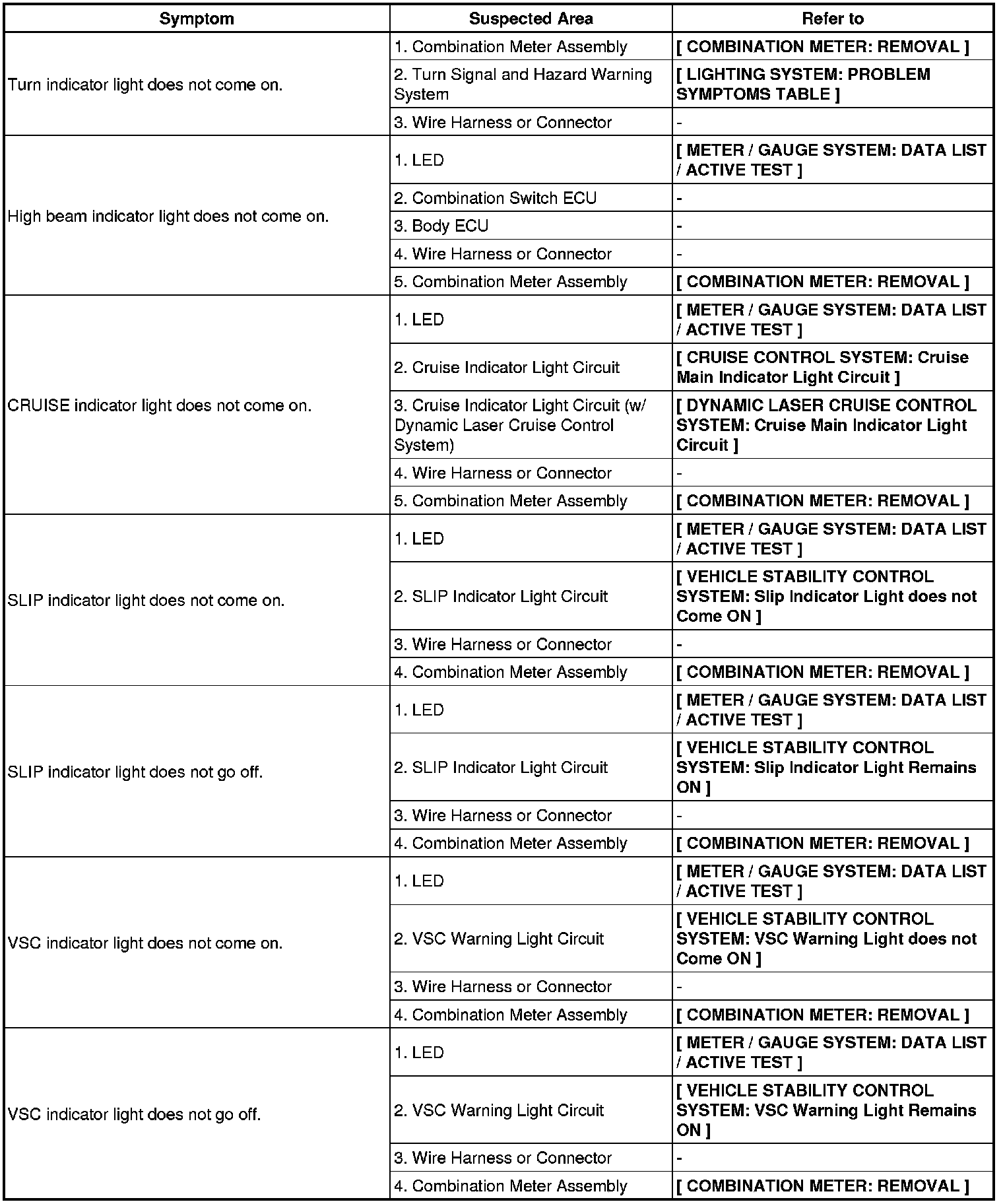

INDICATOR LIGHTS:

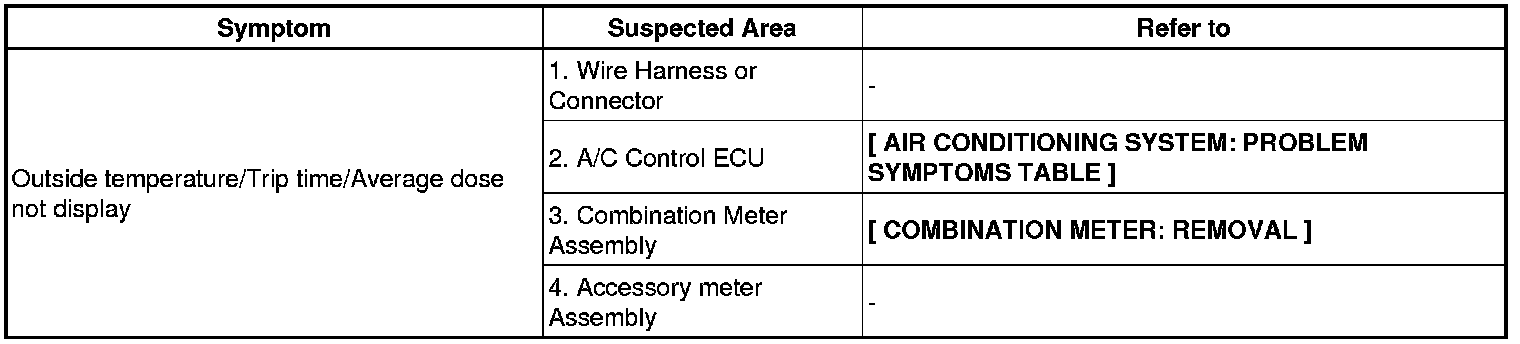

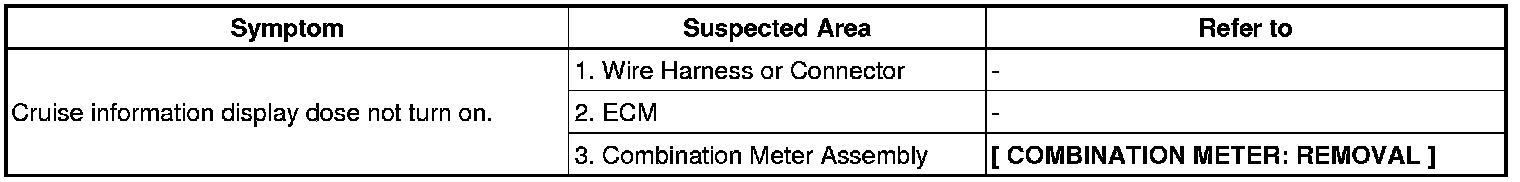

CRUISE INFORMATION AREA:

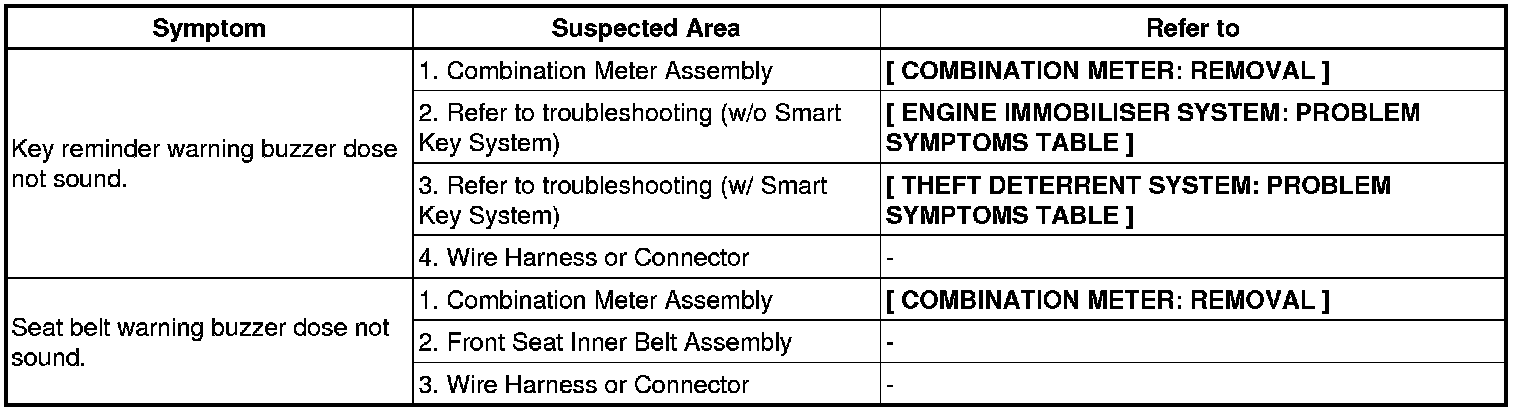

BUZZER:





ACCESSORY METER ASSEMBLY:
