Disassembly

LIGHTING: BACK-UP LIGHT ASSEMBLY: DISASSEMBLY

DISASSEMBLY

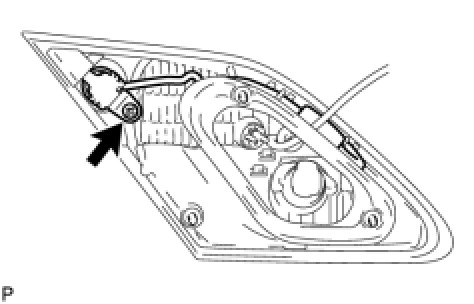

1. REMOVE LUGGAGE ELECTRICAL KEY SWITCH





(a) Remove the screw and the luggage electrical key switch.

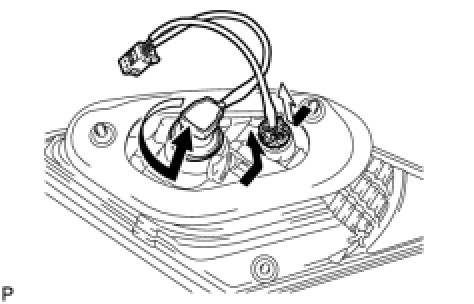

2. REMOVE BACK-UP LIGHT SOCKET & WIRE





(a) Remove the rear light socket & wire as shown in the illustration.
3. REMOVE BACK-UP LIGHT BULB
4. REMOVE BACK-UP LIGHT LH GASKET
