Removal

LIGHTING: BACK-UP LIGHT ASSEMBLY: REMOVAL

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Installation is in the reverse order of removal.

1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

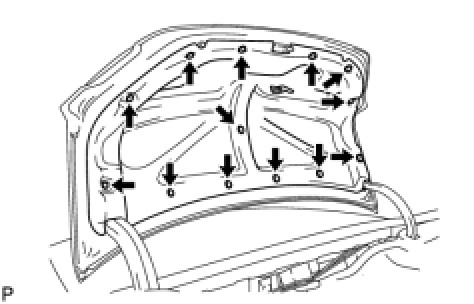

(a) Remove the 13 clips and the luggage compartment door cover.
2. REMOVE BACK-UP LIGHT ASSEMBLY





(a) Disconnect the connector.

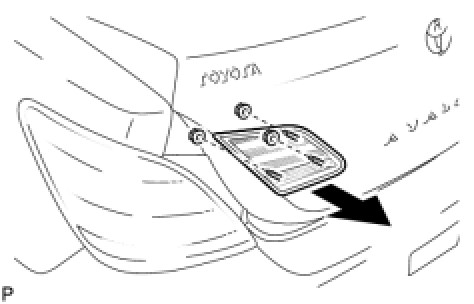

(b) Remove the 3 nuts and the rear light assembly LH.
