Disassembly

LIGHTING: REAR COMBINATION LIGHT ASSEMBLY: DISASSEMBLY

DISASSEMBLY

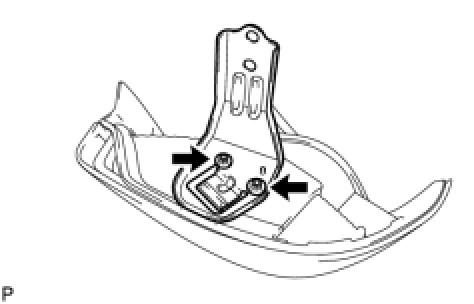

1. REMOVE REAR COMBINATION LIGHT BRACKET LH





(a) Remove the 2 nuts and the rear combination light bracket LH.

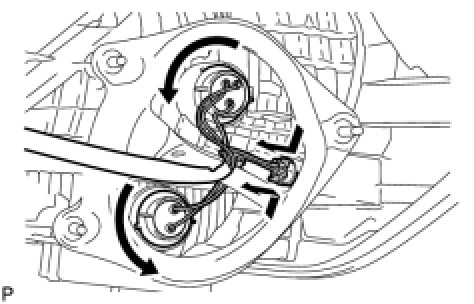

2. REMOVE REAR COMBINATION LIGHT SOCKET & WIRE





(a) Remove the rear combination light socket & wire as shown in the illustration.
3. REMOVE REAR COMBINATION LIGHT BULB
4. REMOVE REAR COMBINATION LIGHT BODY GASKET LH
