Removal

LIGHTING: REAR COMBINATION LIGHT ASSEMBLY: REMOVAL

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Installation is in the reverse order of removal.

1. REMOVE REAR FLOOR FINISH PLATE Removal
2. REMOVE REAR BUMPER ASSEMBLY Removal

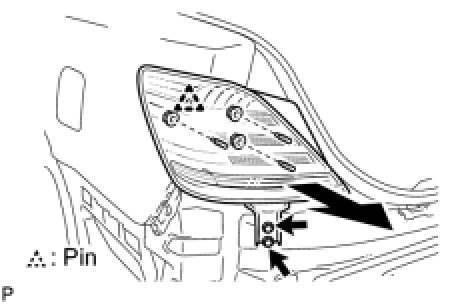

3. REMOVE REAR COMBINATION LIGHT ASSEMBLY LH





(a) Disconnect the connector.
(b) Remove the 3 nuts and the 2 bolts.
(c) Remove the pin and the rear combination light assembly LH.
