LIGHTING: HIGH MOUNTED STOP LIGHT ASSEMBLY: REMOVAL

REMOVAL

HINT: installation is in the reverse order of removal.

1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
3. REMOVE REAR SEAT HEADREST ASSEMBLY
4. REMOVE REAR SEAT BACK LOCK COVER CAP Removal
5. REMOVE REAR SEATBACK ASSEMBLY LH Removal
6. REMOVE REAR SEATBACK ASSEMBLY RH Removal
7. REMOVE REAR DOOR SCUFF PLATE LH Removal
8. REMOVE REAR DOOR SCUFF PLATE RH Removal
9. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
10. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
11. REMOVE REAR SEAT SIDE GARNISH LH Removal
12. REMOVE REAR SEAT SIDE GARNISH RH Removal
13. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER LH Removal
14. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER RH Removal
15. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY Removal

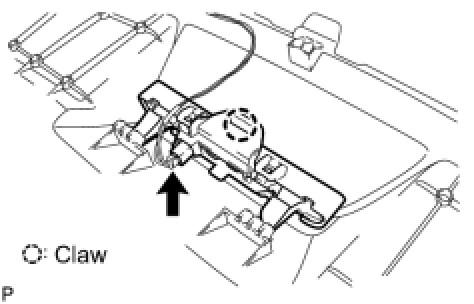

16. REMOVE CENTER STOP LIGHT ASSEMBLY





(a) Disconnect the connector.
(b) Disengage the claw and remove the center stop light assembly.
