Center Mounted Brake Lamp: Testing and Inspection

LIGHTING: HIGH MOUNTED STOP LIGHT ASSEMBLY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT CENTER STOP LIGHT ASSEMBLY

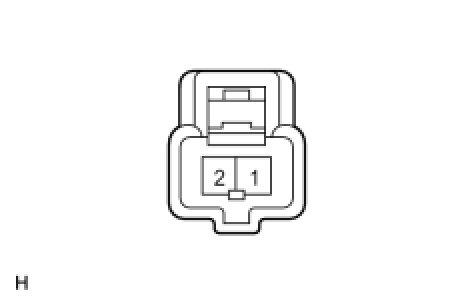

(a) Connect the (+) lead from the voltmeter to terminal 1 and the (-) lead from the voltmeter to terminal 2.
(b) Measure the voltage according to the value(s) in the table below.

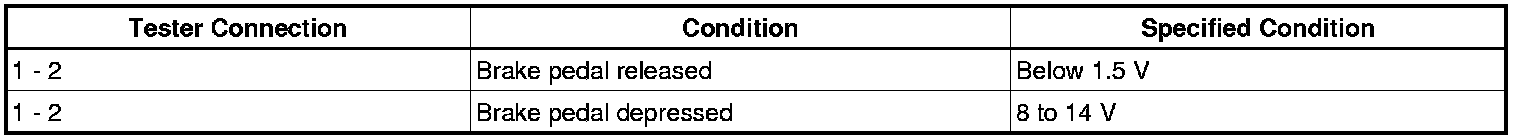

Standard voltage:
