Component Tests and General Diagnostics

LIGHTING: DOOR COURTESY LIGHT: INSPECTION

INSPECTION

1. INSPECT COURTESY LIGHT ASSEMBLY





(a) Inspect the courtesy light.

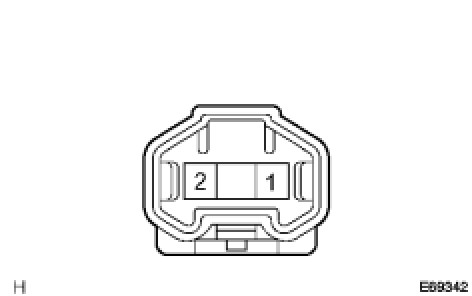

(1) Connect the (+) lead from the battery to terminal 2 and the (-) lead to terminal 1, then check that the courtesy light comes on.
OK:
The light comes on.
