Removal

LIGHTING: HEADLIGHT LEVELING ECU: REMOVAL

REMOVAL

HINT: Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL LH
2. REMOVE INSTRUMENT PANEL AIR BAG ASSEMBLY LOWER NO.1

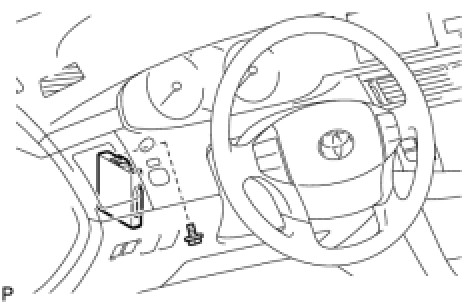

3. REMOVE HEADLIGHT LEVELING ECU ASSEMBLY





(a) Disconnect the connector.
(b) Remove the bolt and the headlight leveling ECU assembly.
