LIGHTING: HEADLIGHT ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL HEADLIGHT ASSEMBLY
(a) Connect the connectors.

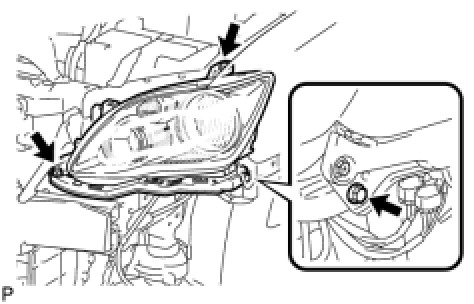

(b) Install the headlight assembly with the 2 bolts and screw.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
2. INSTALL FRONT BUMPER ASSEMBLY (w/o Fog Light) Installation
3. INSTALL FRONT BUMPER ASSEMBLY (w/ Fog Light) Installation
4. INSTALL RADIATOR GRILLE SUB-ASSEMBLY Installation
5. INSTALL COOL AIR INTAKE DUCT SEAL Installation
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for HID Headlight)

HINT: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Service Precautions.

7. VEHICLE PREPARATION FOR HEADLIGHT AIMING ADJUSTMENT Adjustments
8. PREPARATION FOR HEADLIGHT AIMING (Using a headlight aim test machine) Adjustments
9. PREPARATION FOR HEADLIGHT AIMING (Using a Screen) Adjustments
10. INSPECT HEADLIGHT AIMING Adjustments
11. ADJUST HEADLIGHT AIMING Adjustments
12. VEHICLE PREPARATION FOR FOG LIGHT AIMING ADJUSTMENT (w/ Fog Light) Adjustments
13. PREPARATION FOR FOG LIGHT AIMING (w/ Fog Light) Adjustments
14. INSPECT FOG LIGHT AIMING (w/ Fog Light) Adjustments
15. ADJUST FOG LIGHT AIMING (w/ Fog Light) Adjustments
