Removal

HORN: LOW PITCHED HORN: REMOVAL

REMOVAL

1. REMOVE RADIATOR GRILLE SUB-ASSEMBLY Removal

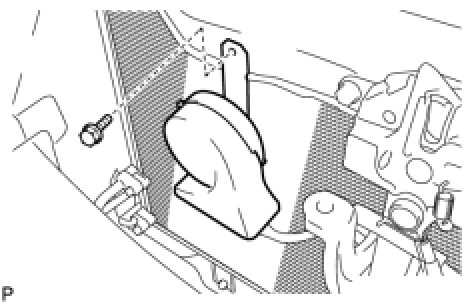

2. REMOVE LOW PITCHED HORN ASSEMBLY





(a) Disconnect the connector.
(b) Remove the bolt and remove the low pitched horn assembly.
