LIGHTING: LICENSE PLATE LIGHT ASSEMBLY: REMOVAL

REMOVAL

HINT: Installation is in the reverse order of removal.

1. REMOVE REAR FLOOR FINISH PLATE Removal
2. REMOVE LICENSE PLATE LIGHT ASSEMBLY





(a) Disconnect the connector.





(b) Remove the grommet as shown in the illustration.

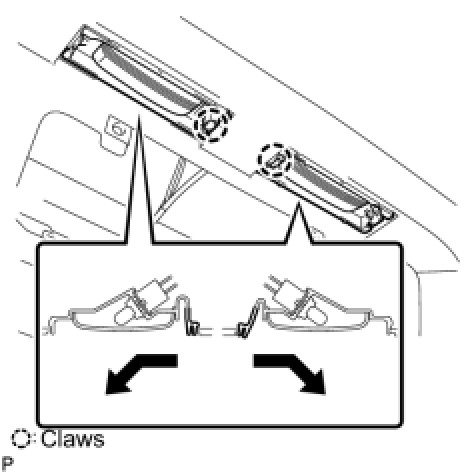

(c) Disengage the 2 claws and remove the license plate light assembly as shown in the illustration.
