Home >> Toyota >> 2009 >> Avalon V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Lighting and Horns >> Relays and Modules - Lighting and Horns >> Turn Signal Relay >> Locations

Turn Signal Relay: Locations

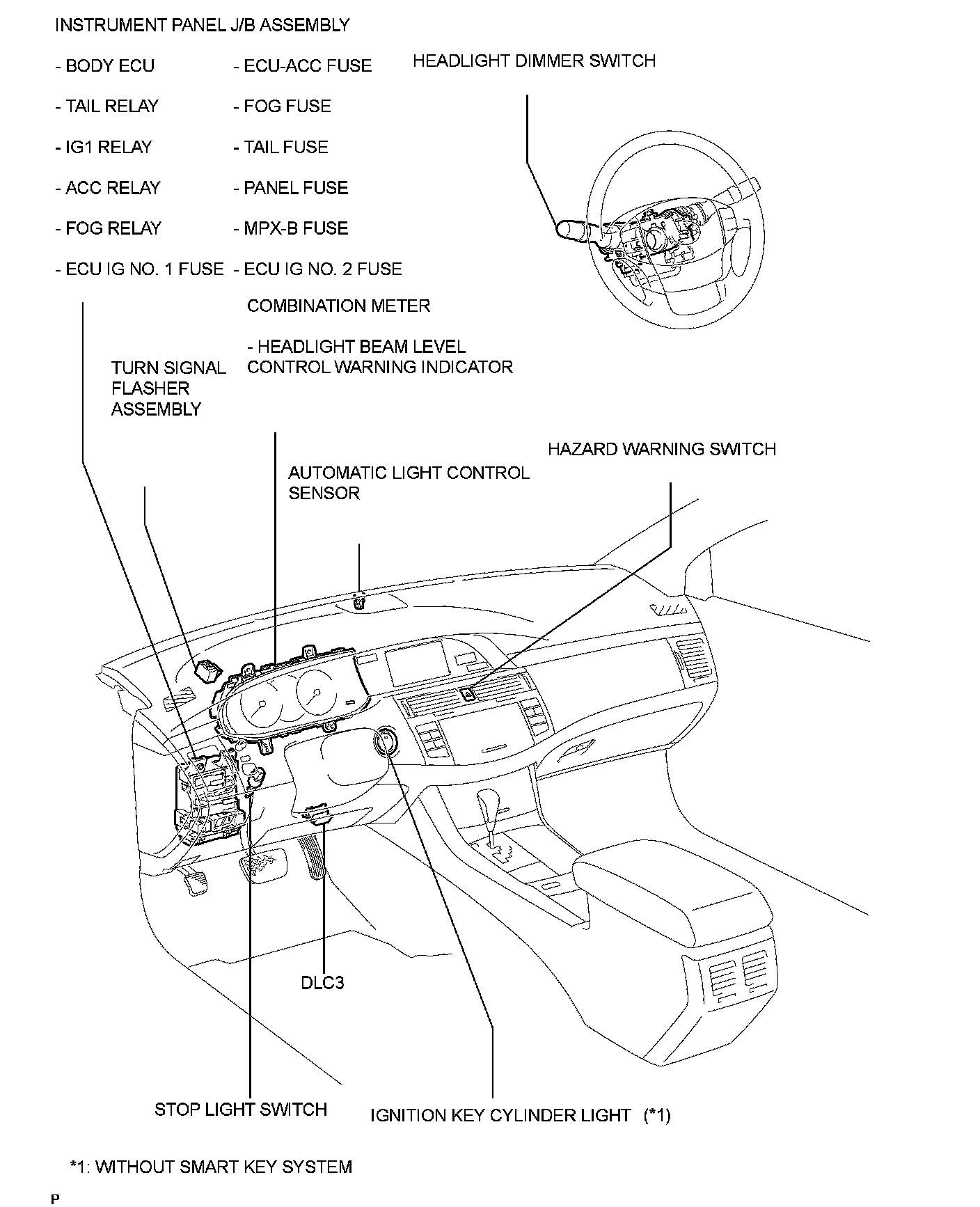

LIGHTING: LIGHTING SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
