Component Tests and General Diagnostics

LIGHTING: REAR COMBINATION LIGHT ASSEMBLY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT REAR COMBINATION LIGHT ASSEMBLY

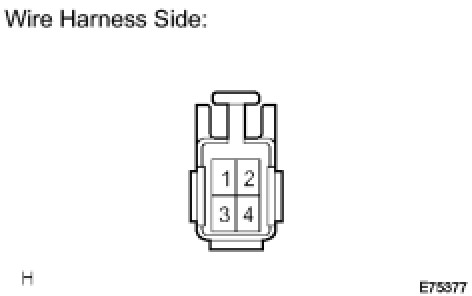

(a) Connect the (+) lead from the voltmeter to terminal 2 and the (-) lead from the voltmeter to terminal 3.

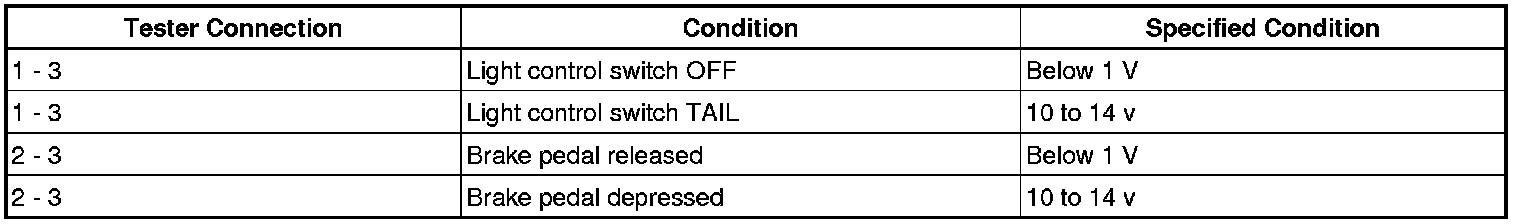

(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:
