Fail-Safe Chart

LIGHTING: LIGHTING SYSTEM: FAIL-SAFE CHART

FAIL-SAFE CHART

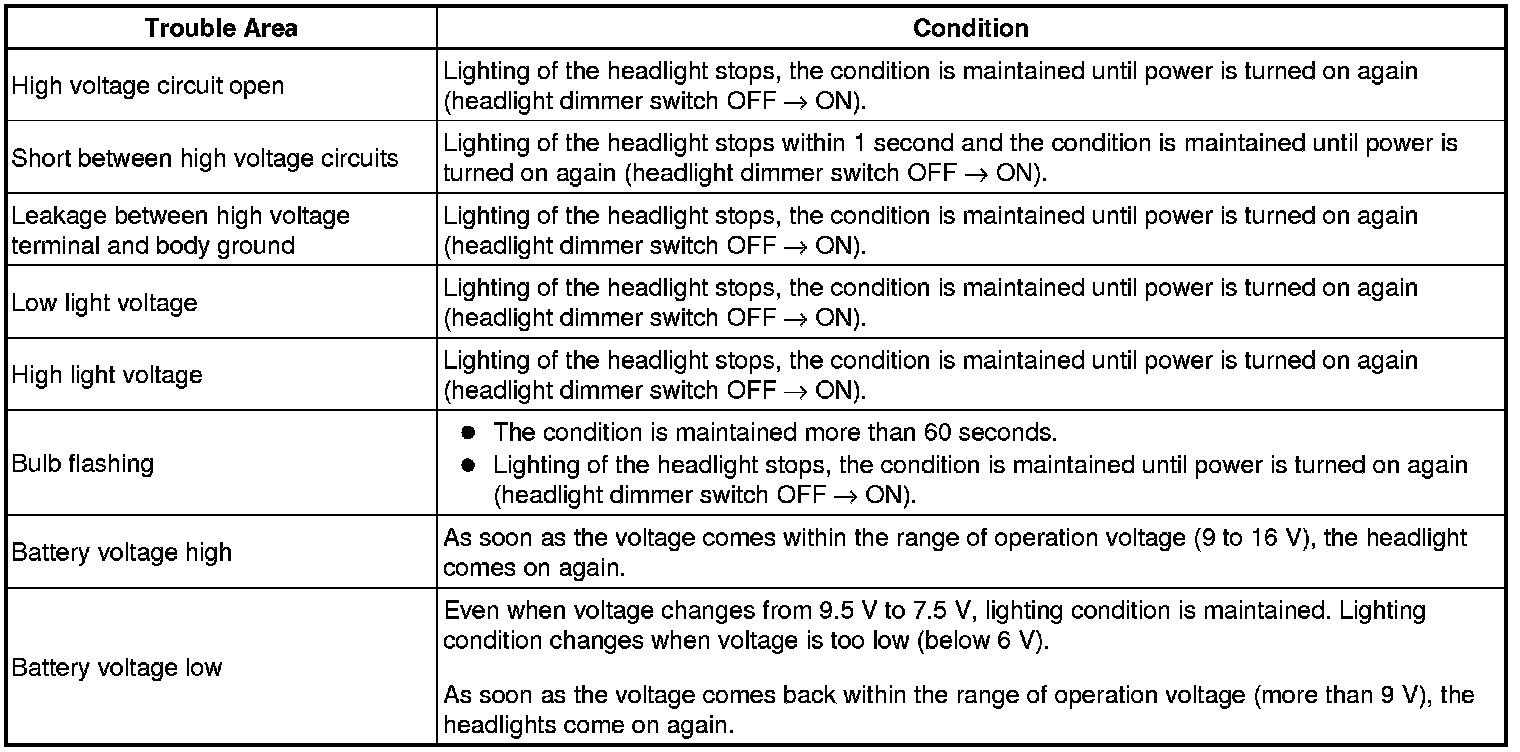

1. LIGHT CONTROL COMPUTER (HID)

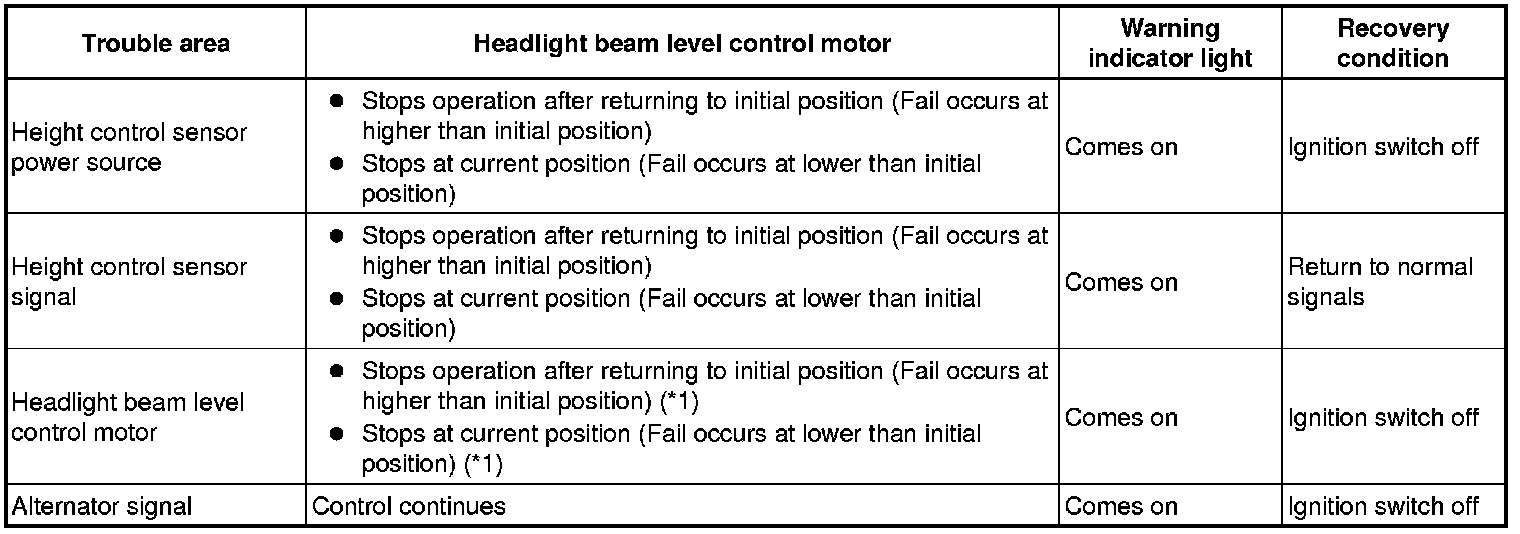

2. HEADLIGHT BEAM LEVEL CONTROL ECU

HINT:
- The headlight beam level control ECU performs fail-safe when detecting the following troubles. The headlight beam level control warning indicator light on the combination meter comes on at the same time.
- If the headlight beam level control warning indicator light comes on, inspect and repair in accordance with the "PROBLEM SYMPTOMS TABLE" Symptom Related Diagnostic Procedures.





HINT: *1: The inoperative side stops at current position.
