Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Avalon V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Position of Parts In Body
Position of Parts In Body

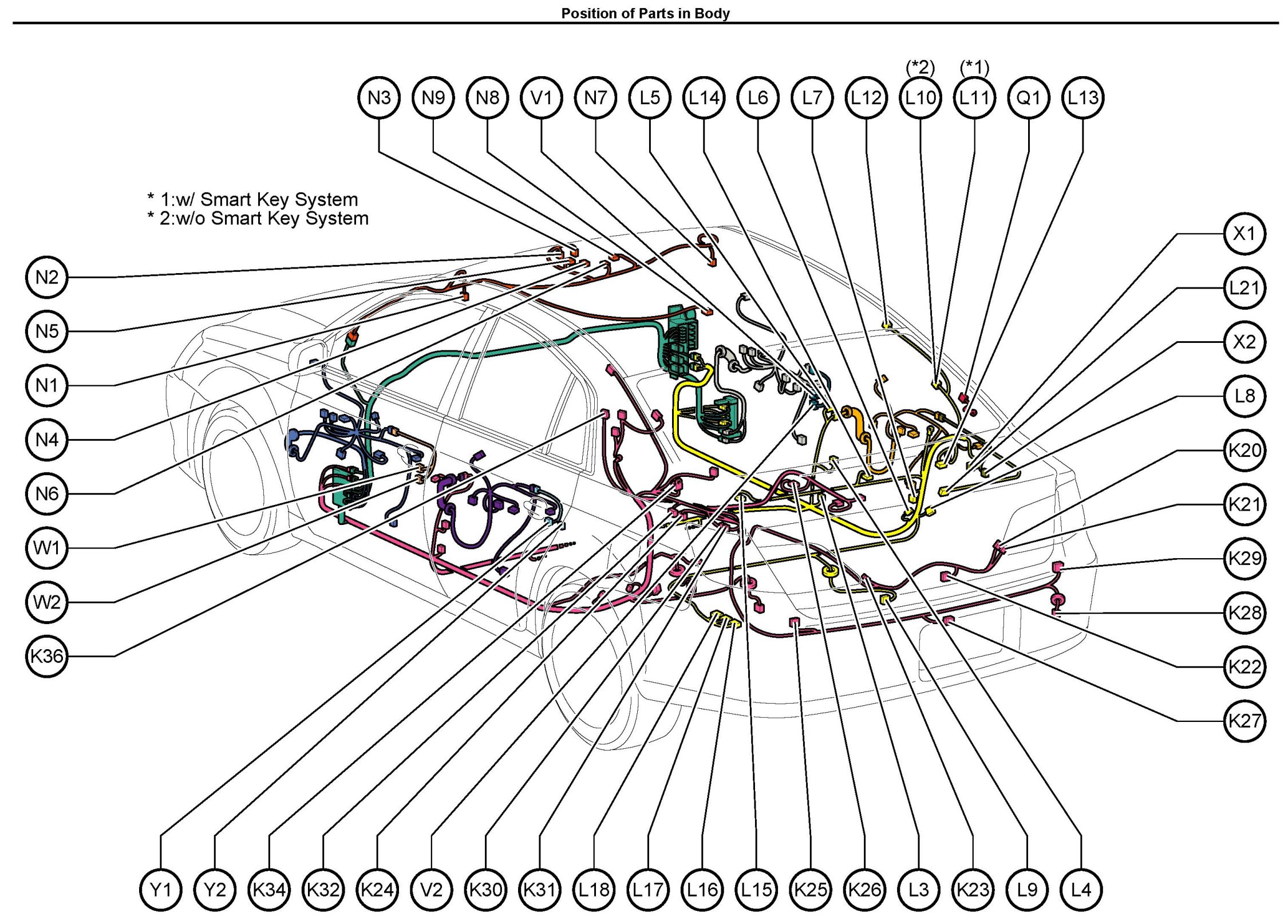

Position Of Parts In Body:

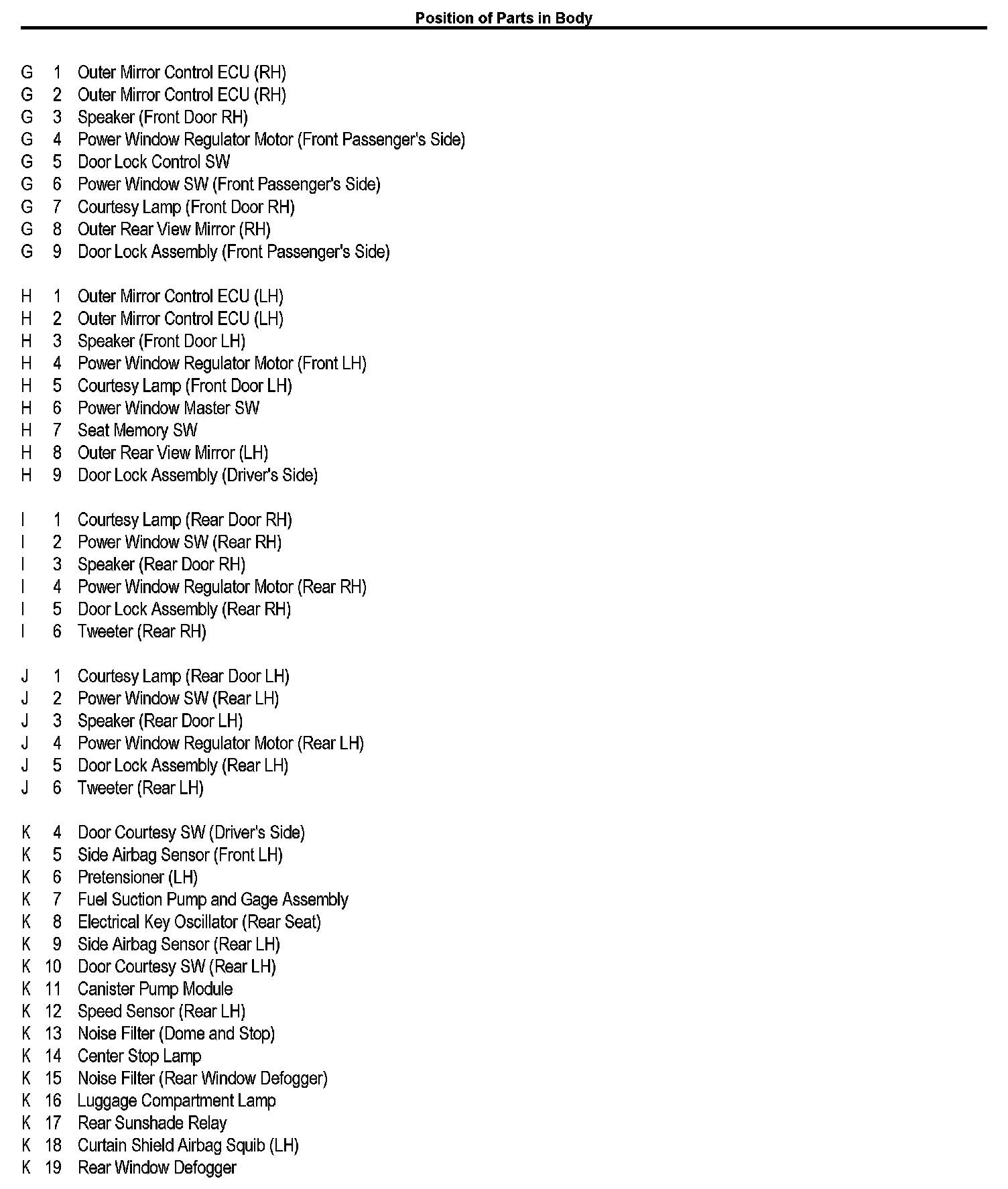

Legend:

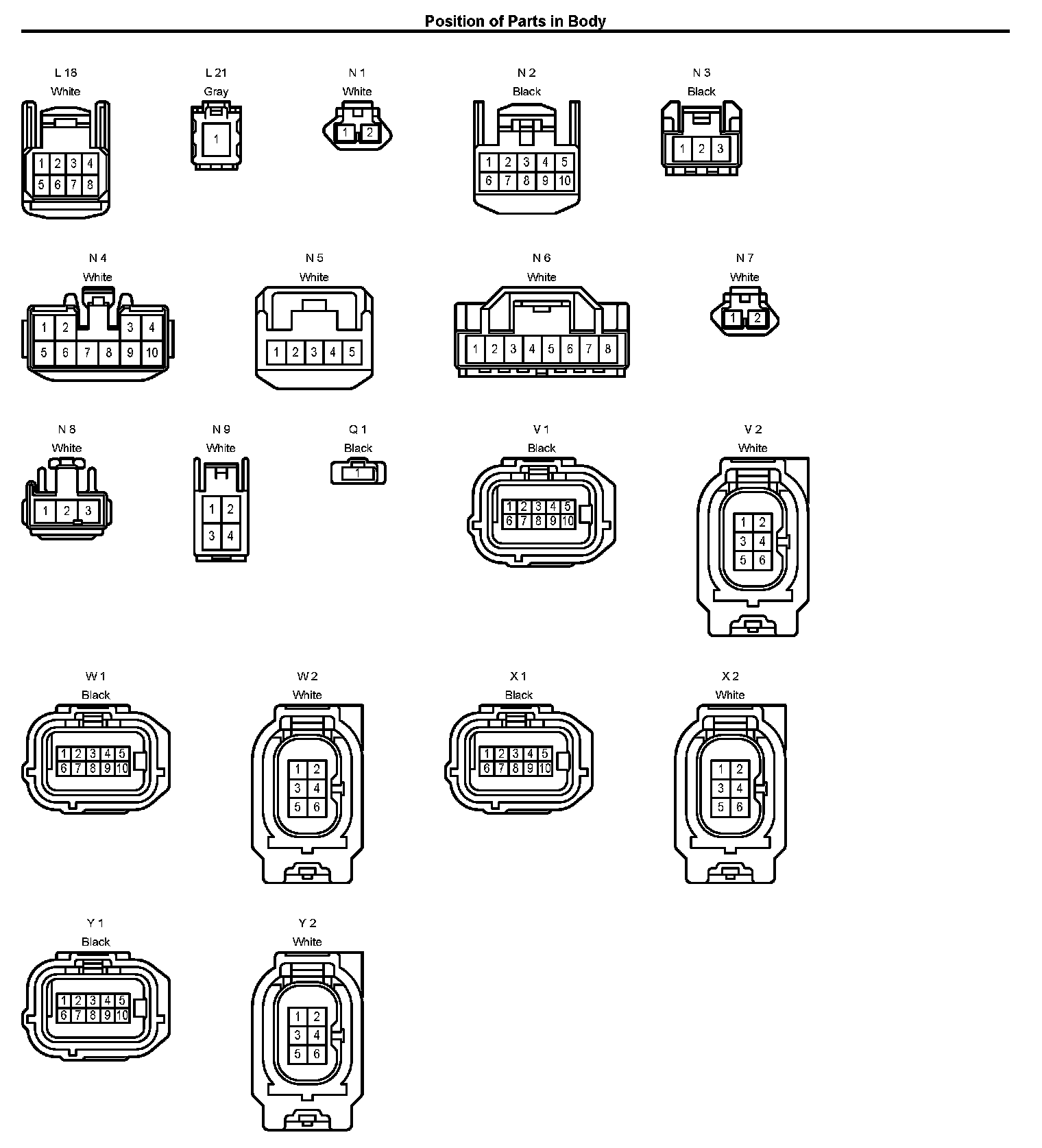

Connector Views:
Connector Views:

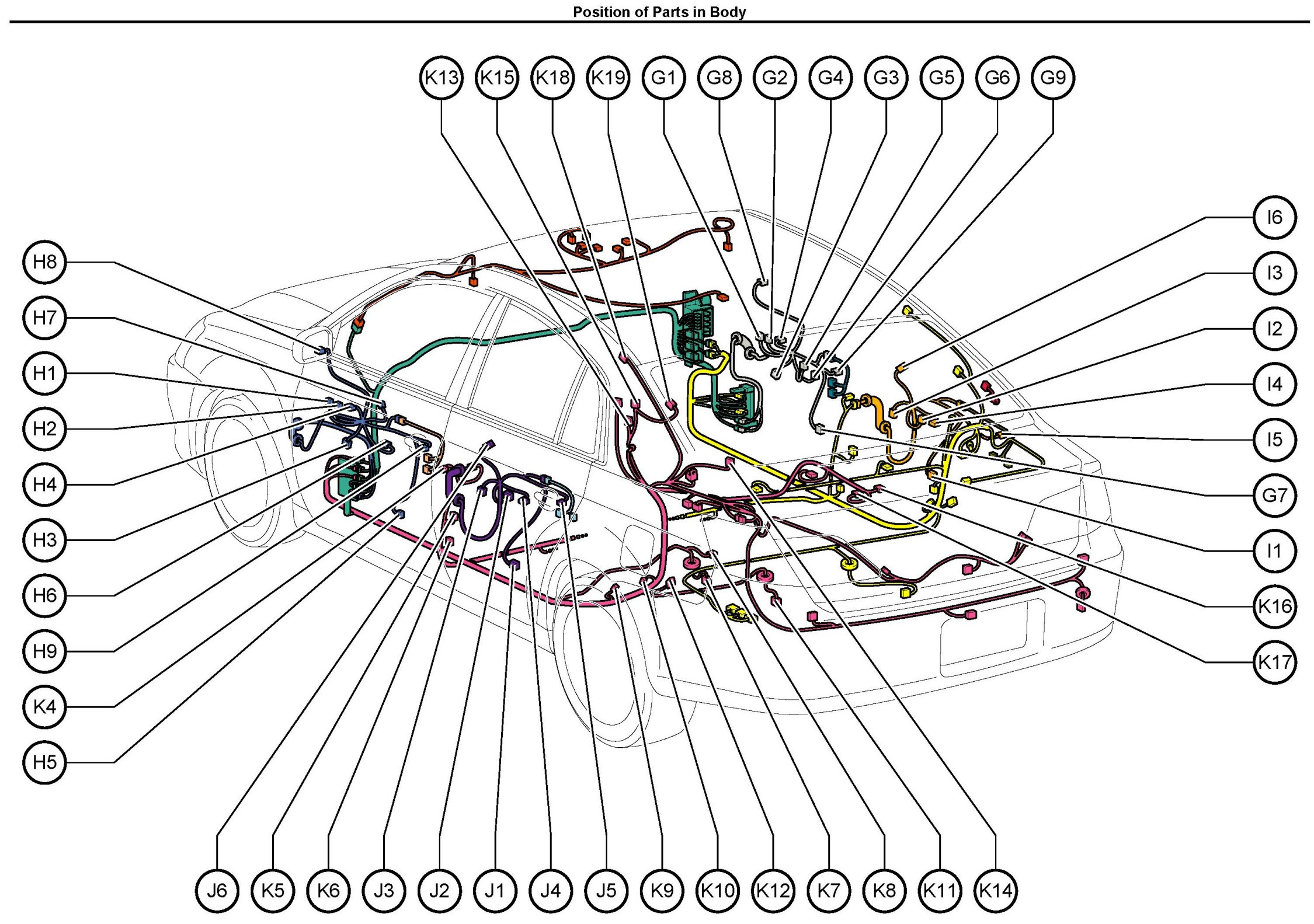

Position Of Parts In Body:

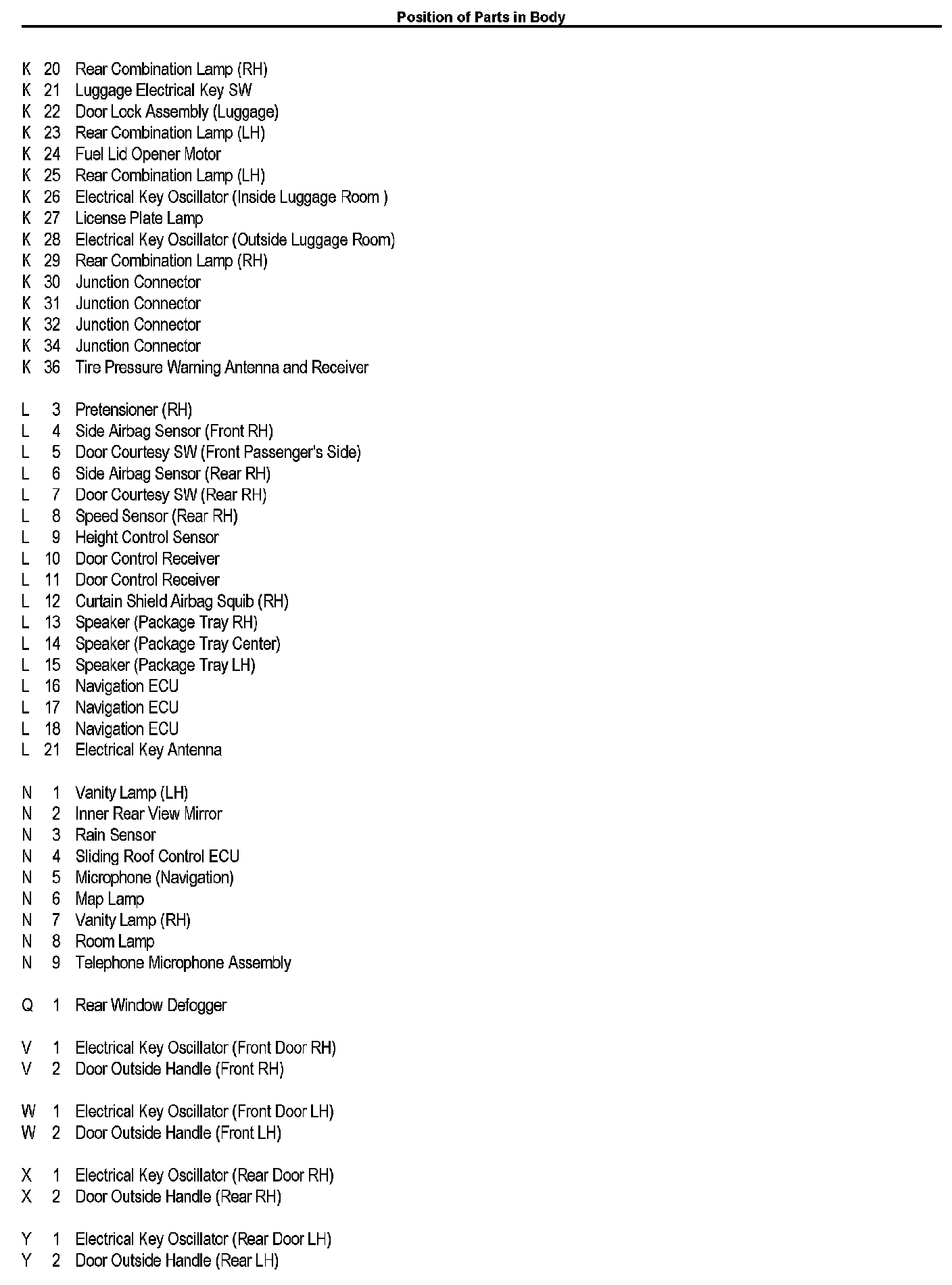

Legend:

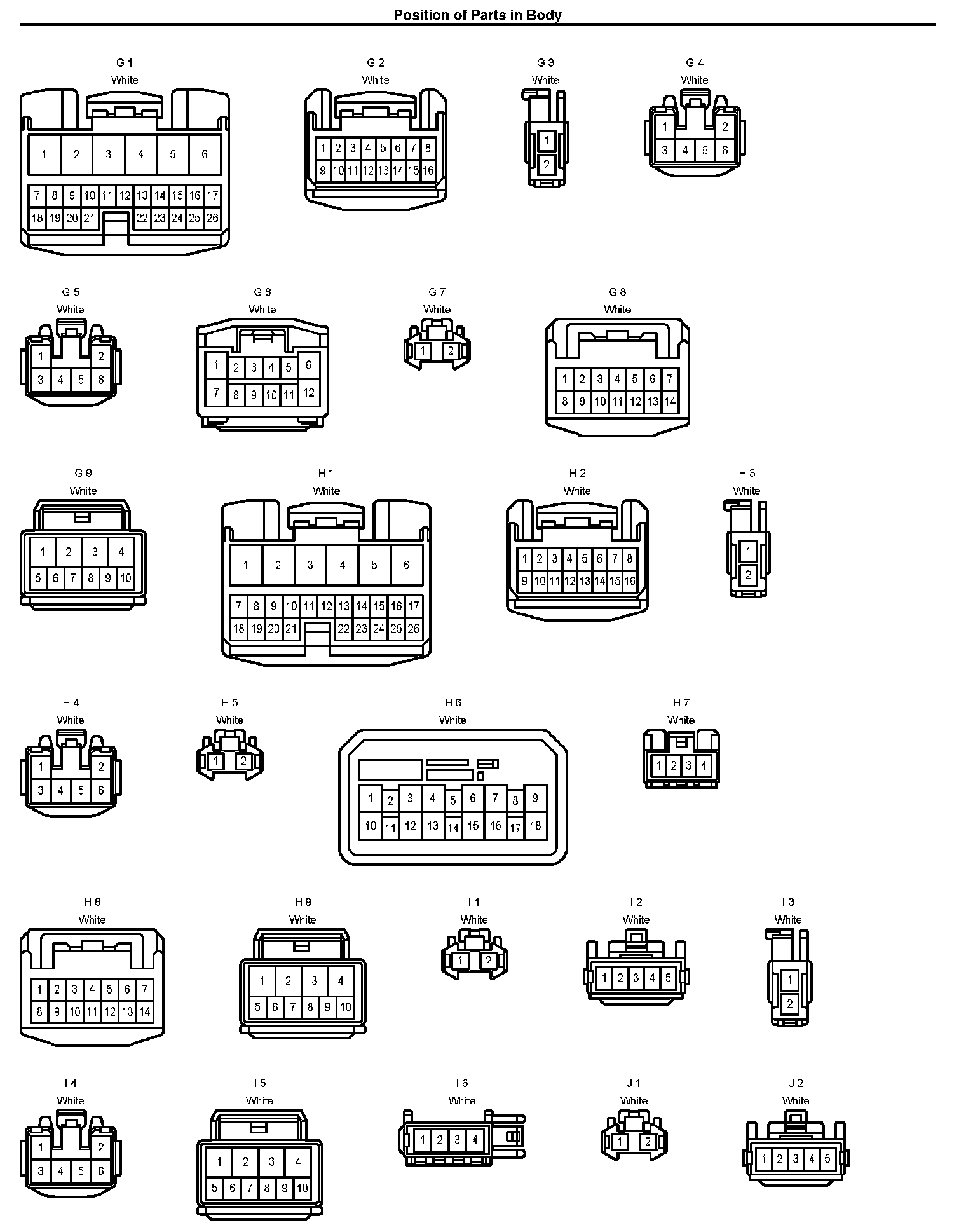

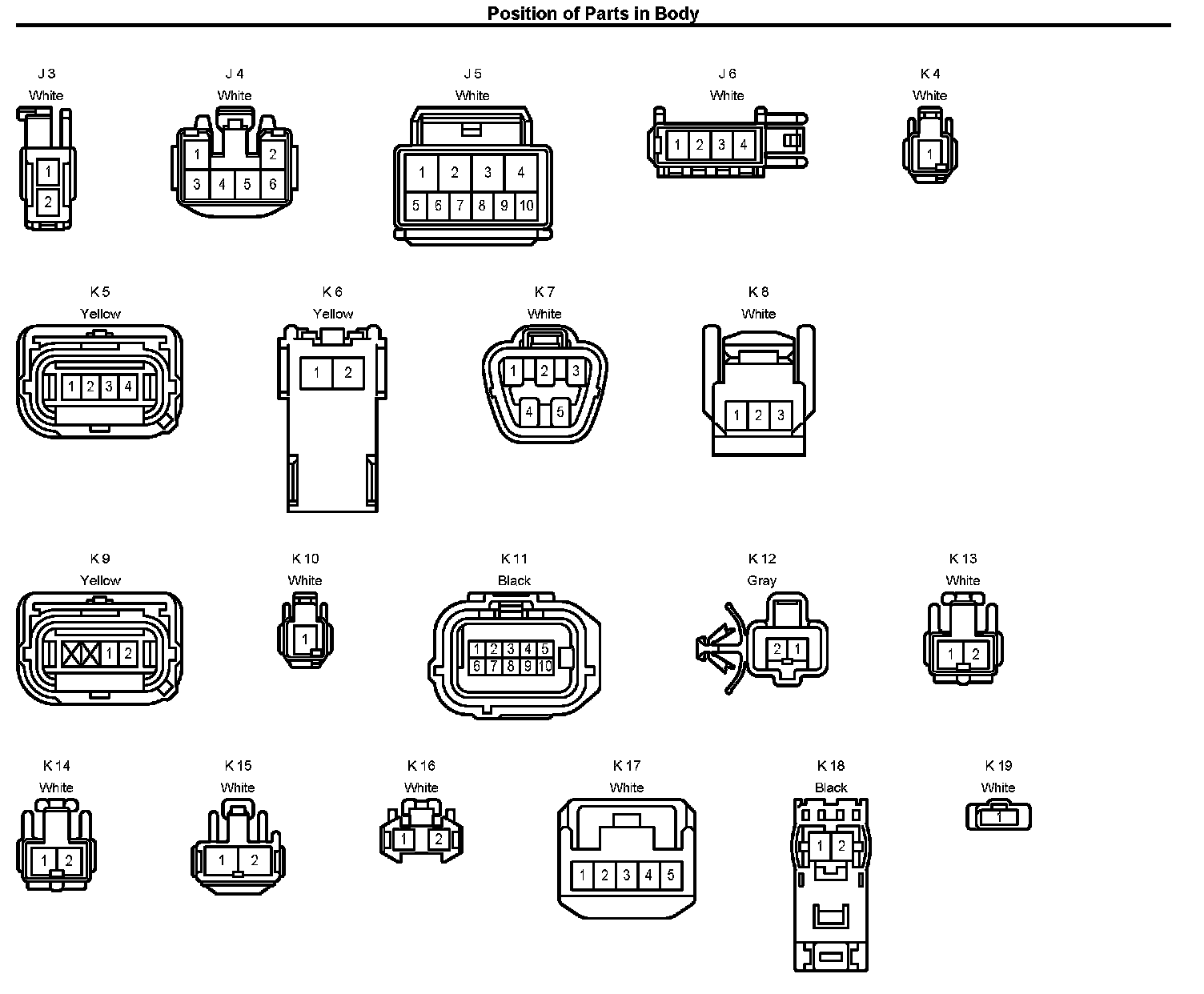

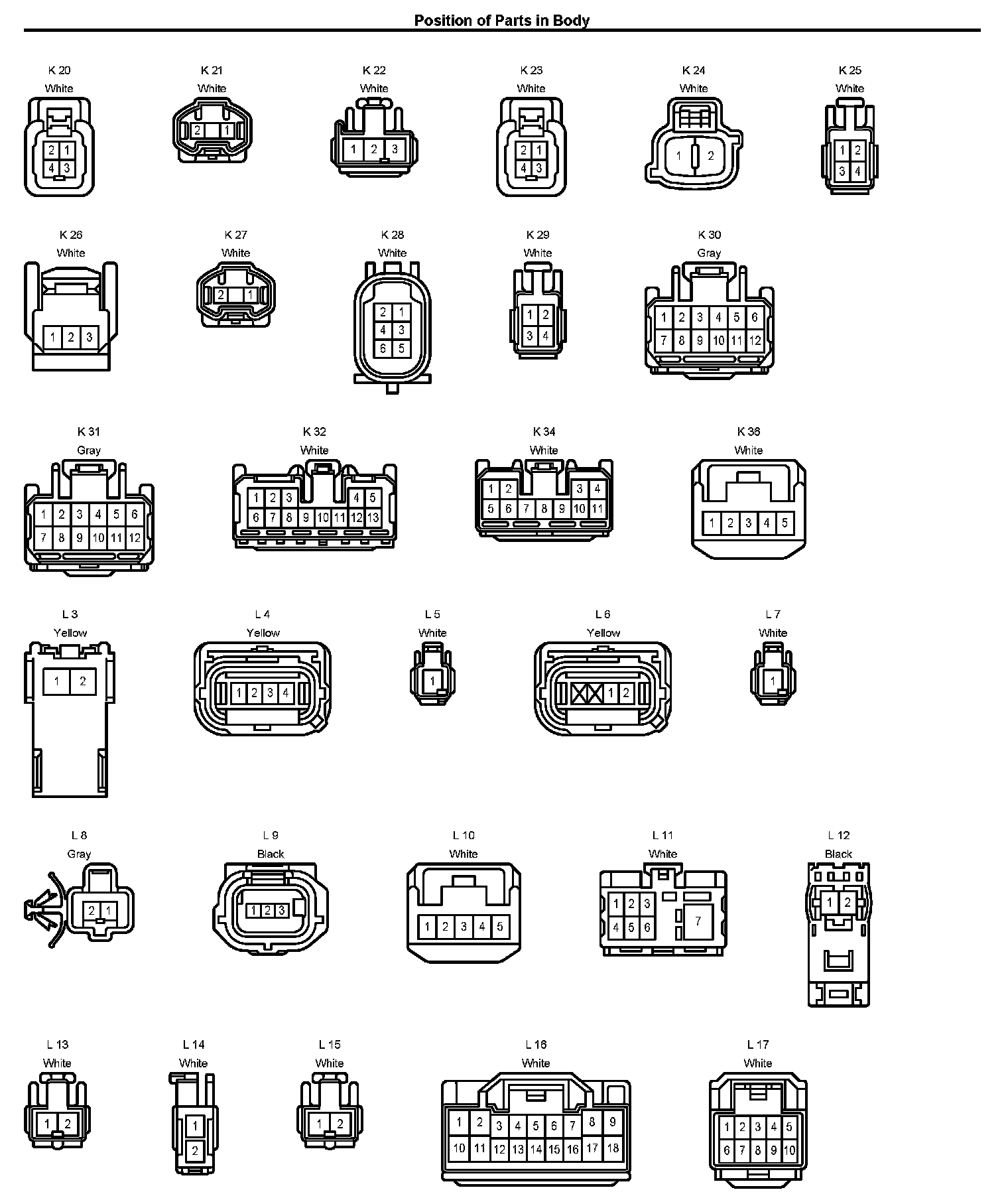

Connector Views:
Connector Views:
