Position of Parts In Instrument Panel

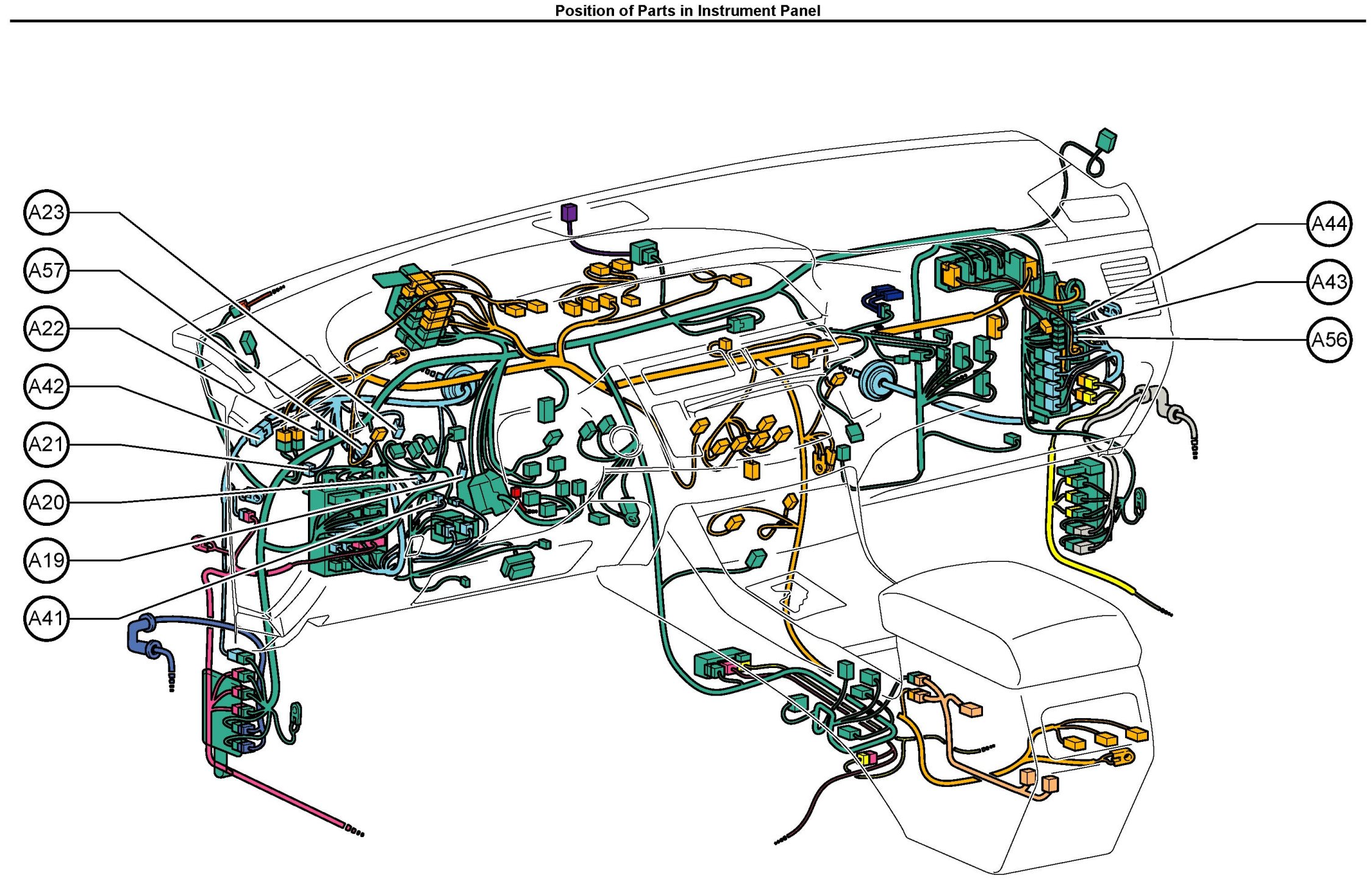

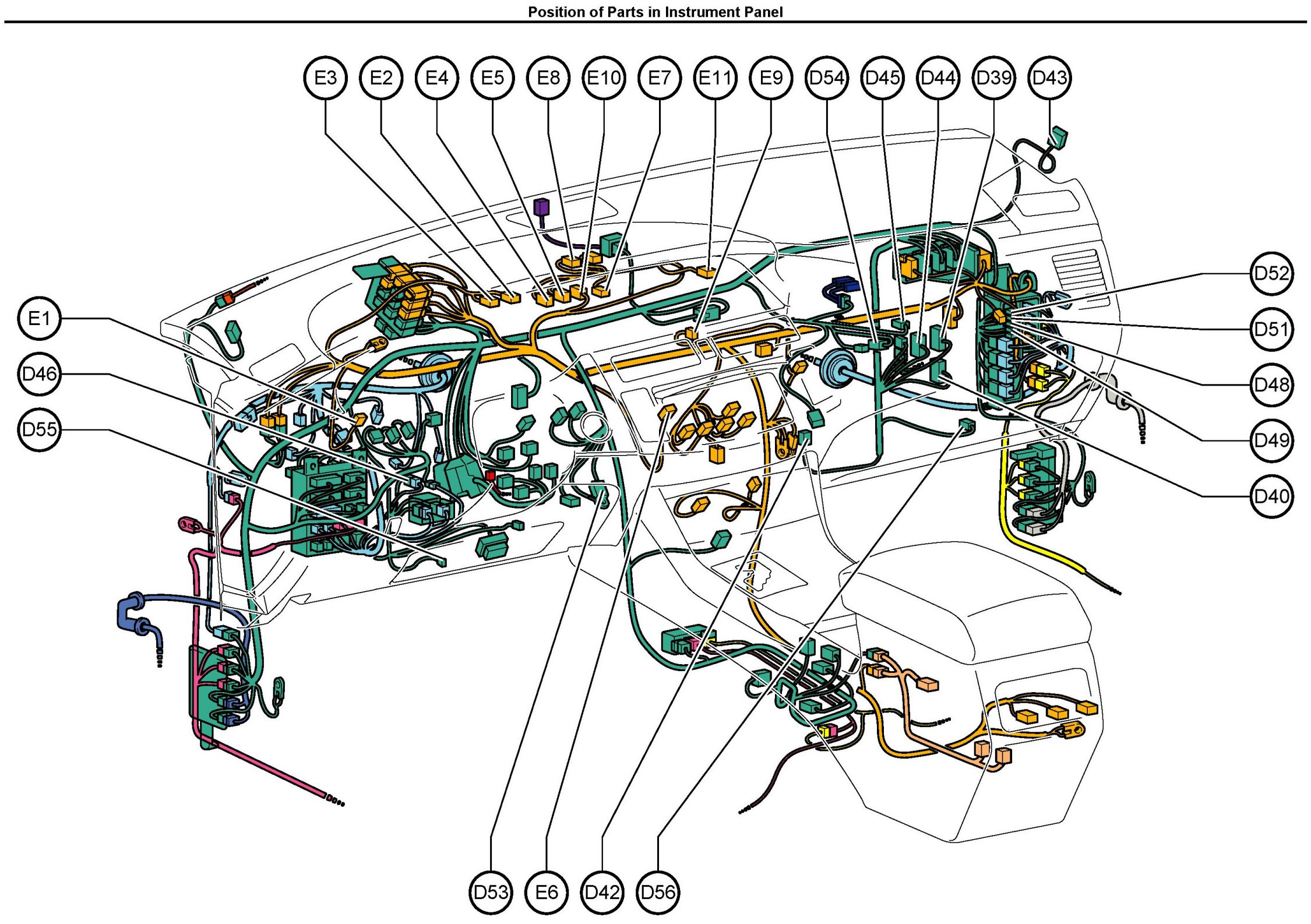

Position Of Parts In Instrument Panel:

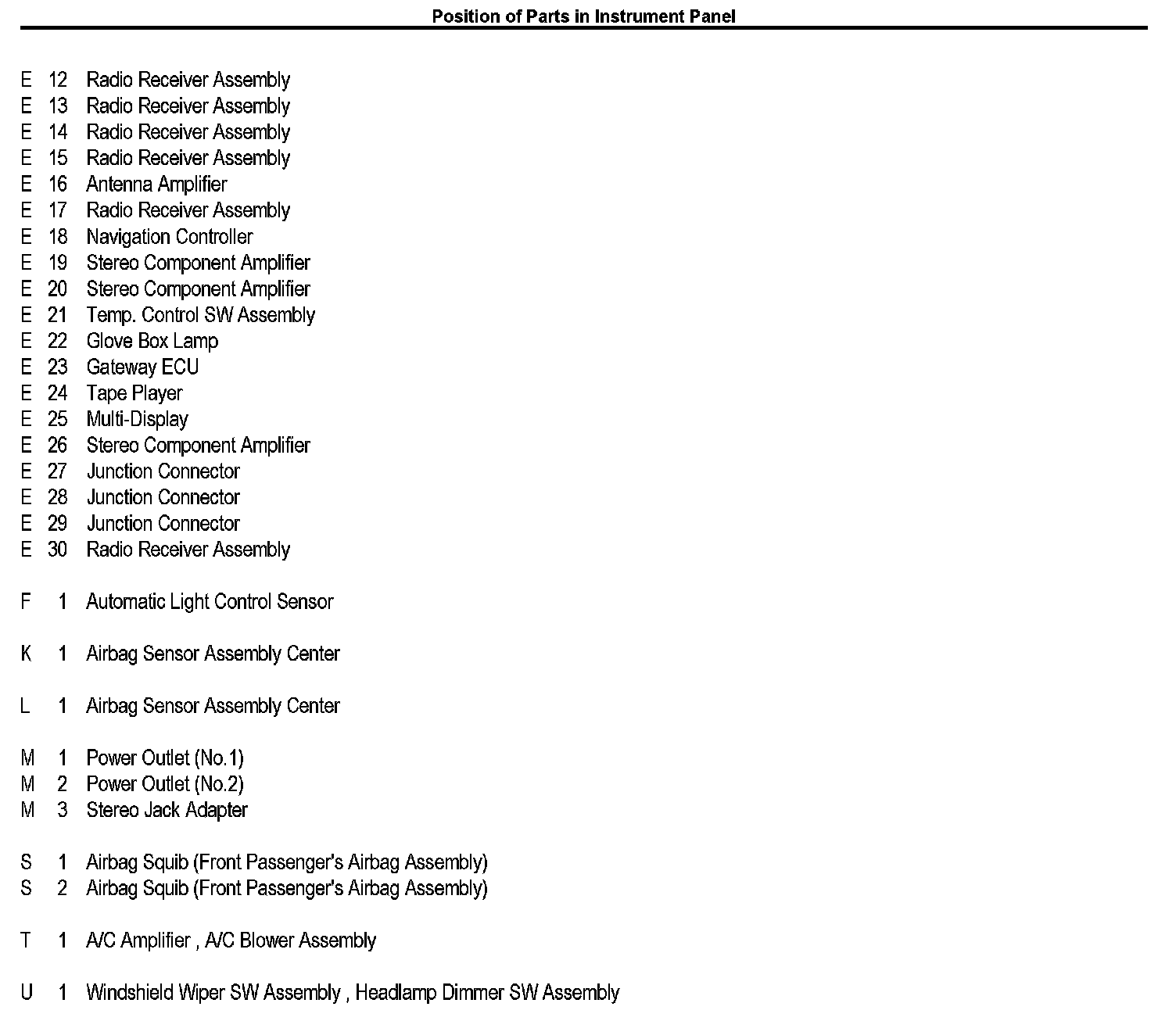

Legend:

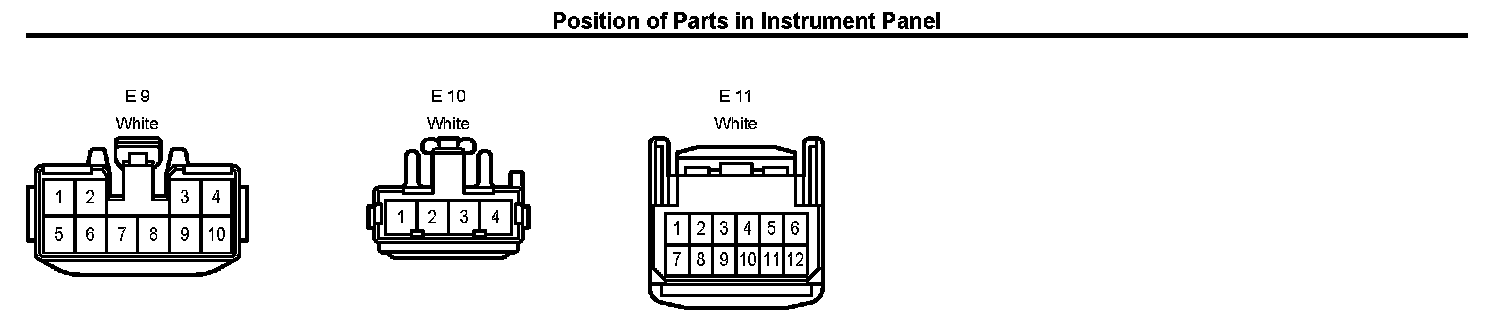

Connector Views:

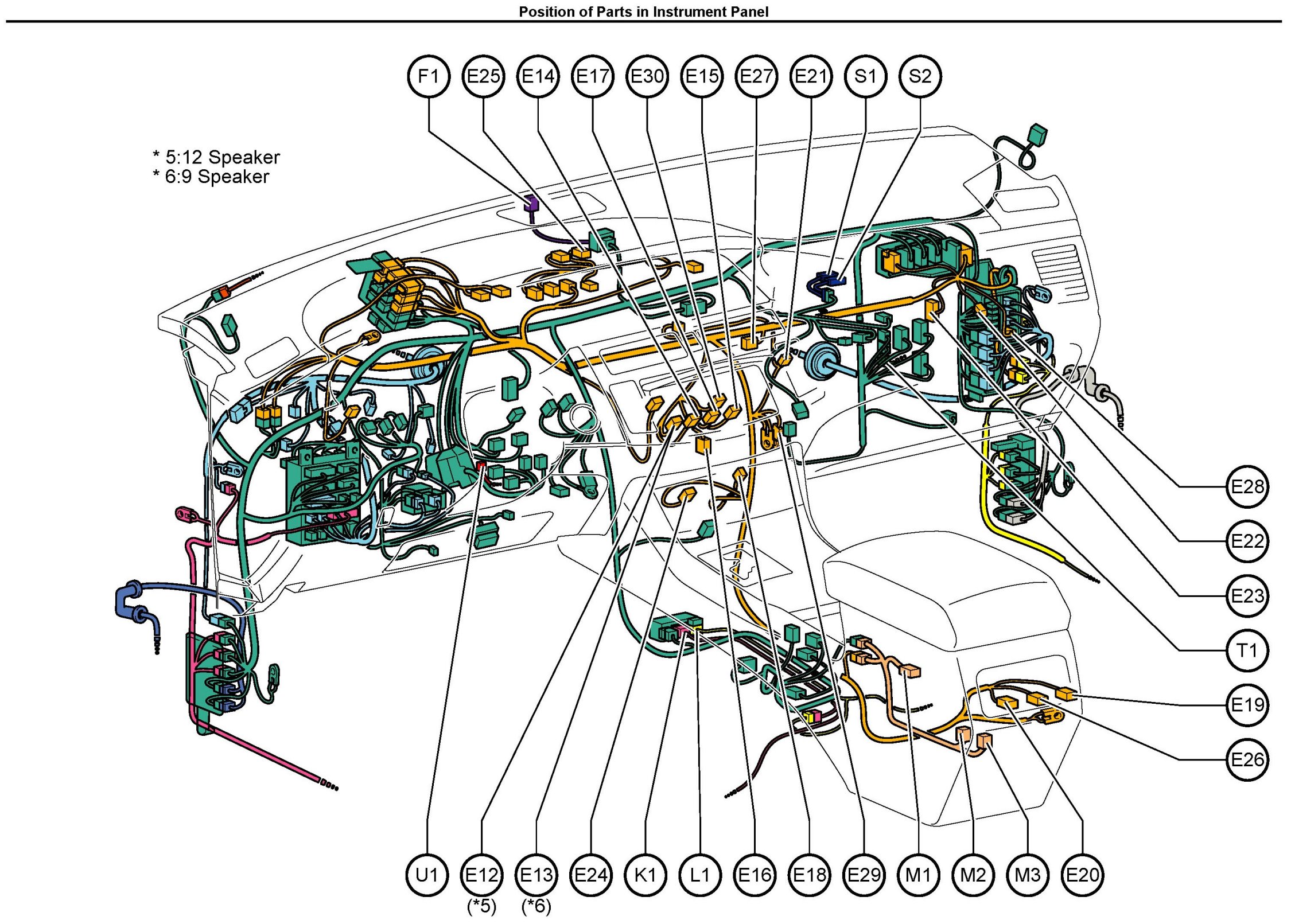

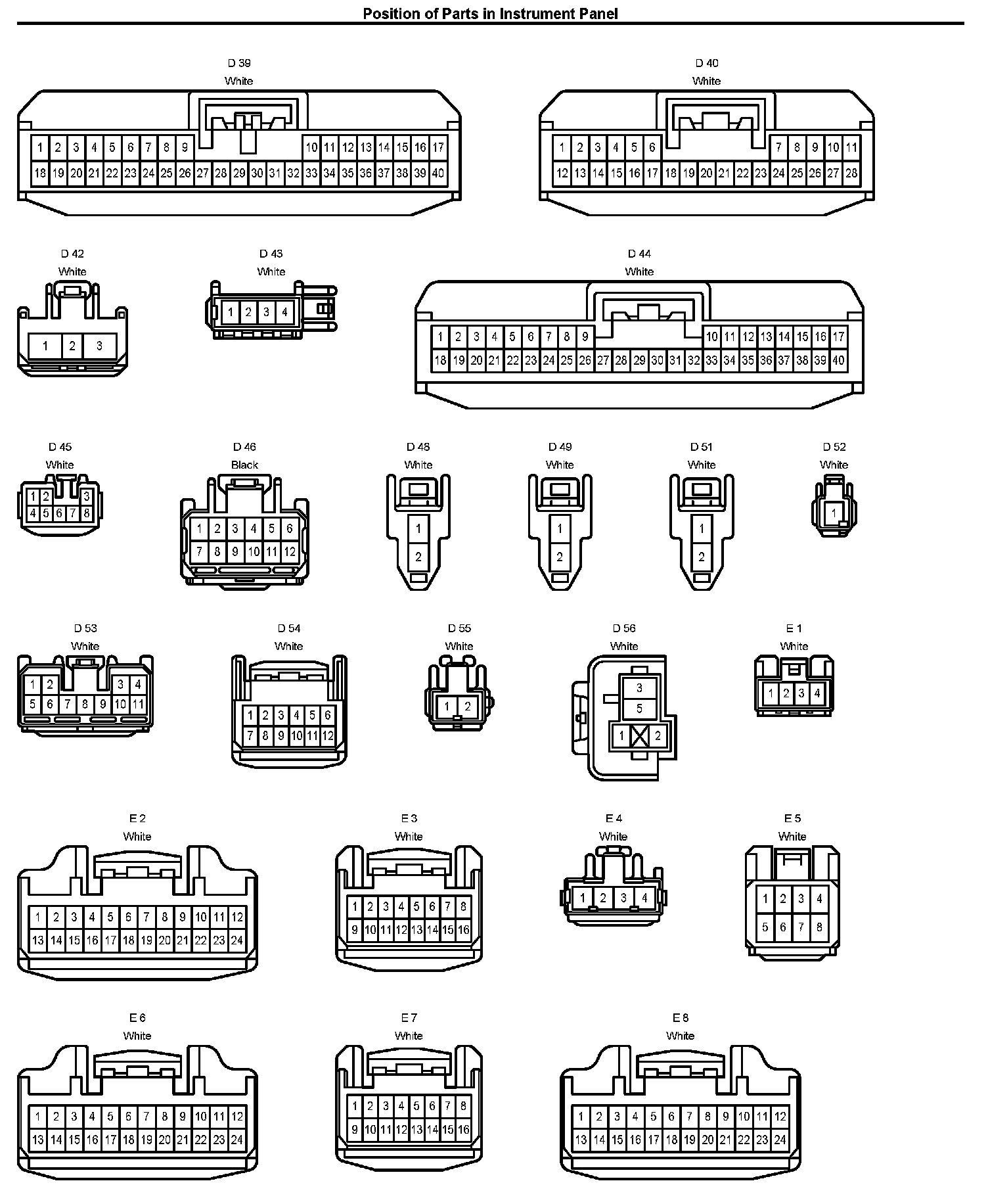

Position Of Parts In Instrument Panel:

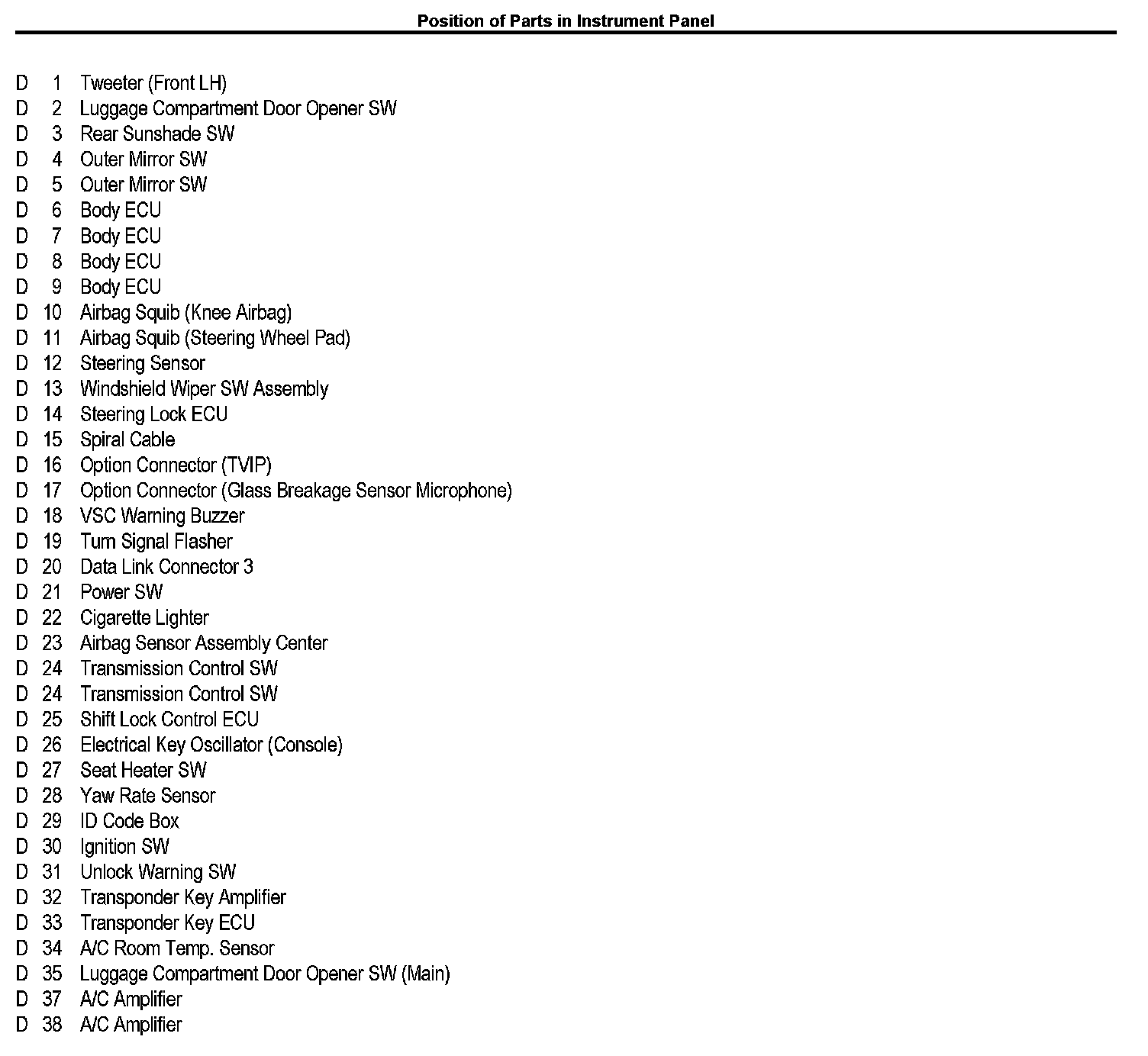

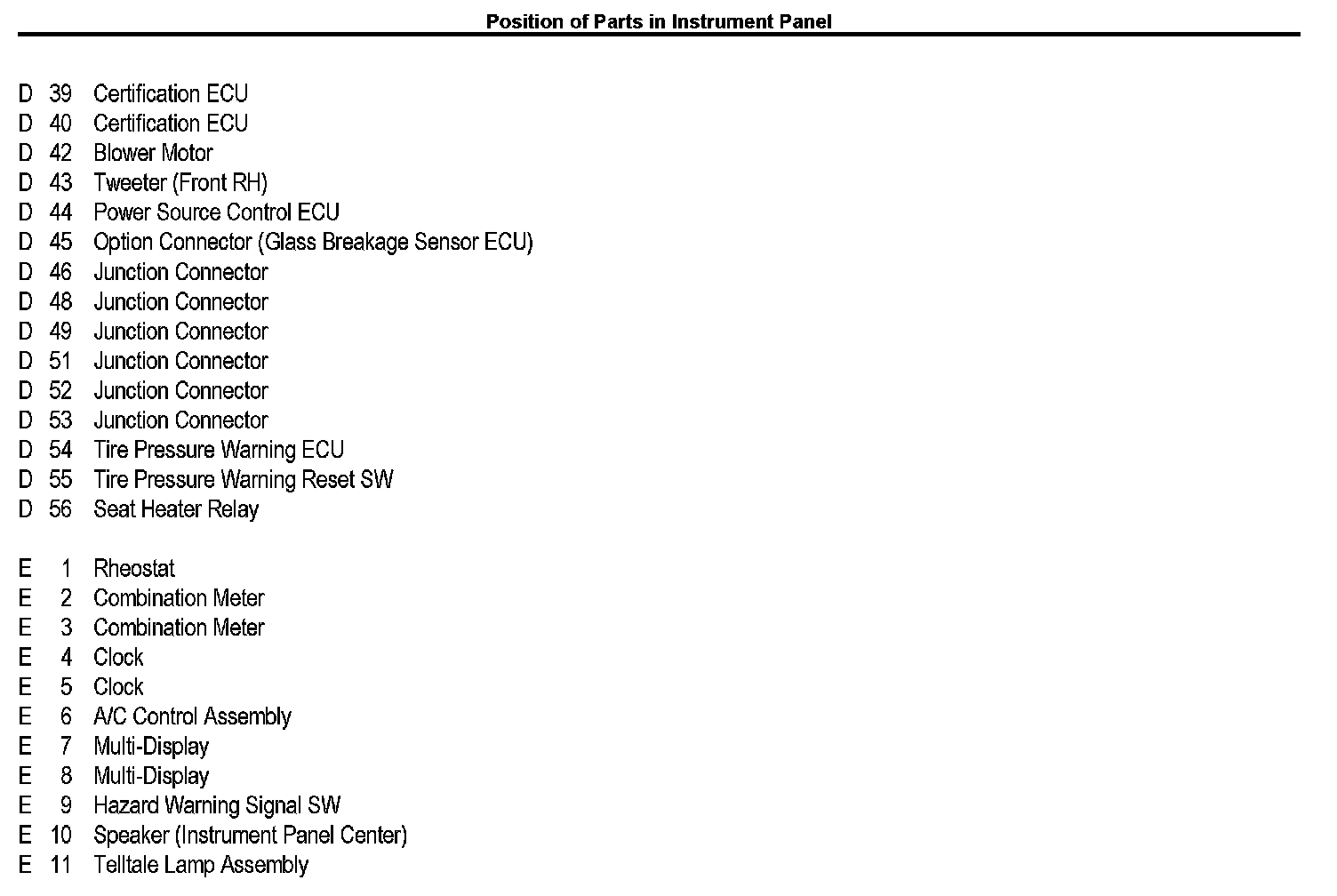

Legend:

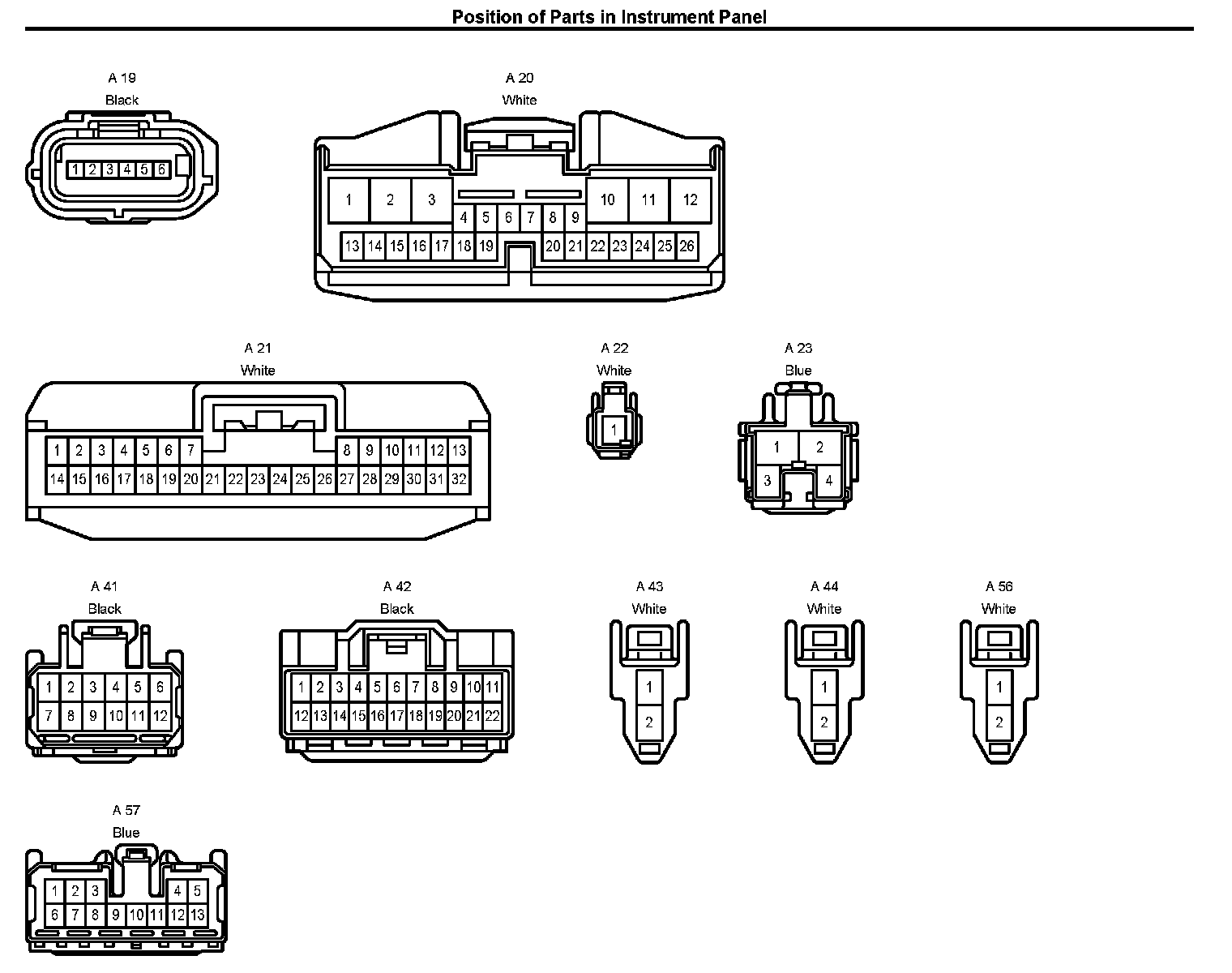

Connector Views:

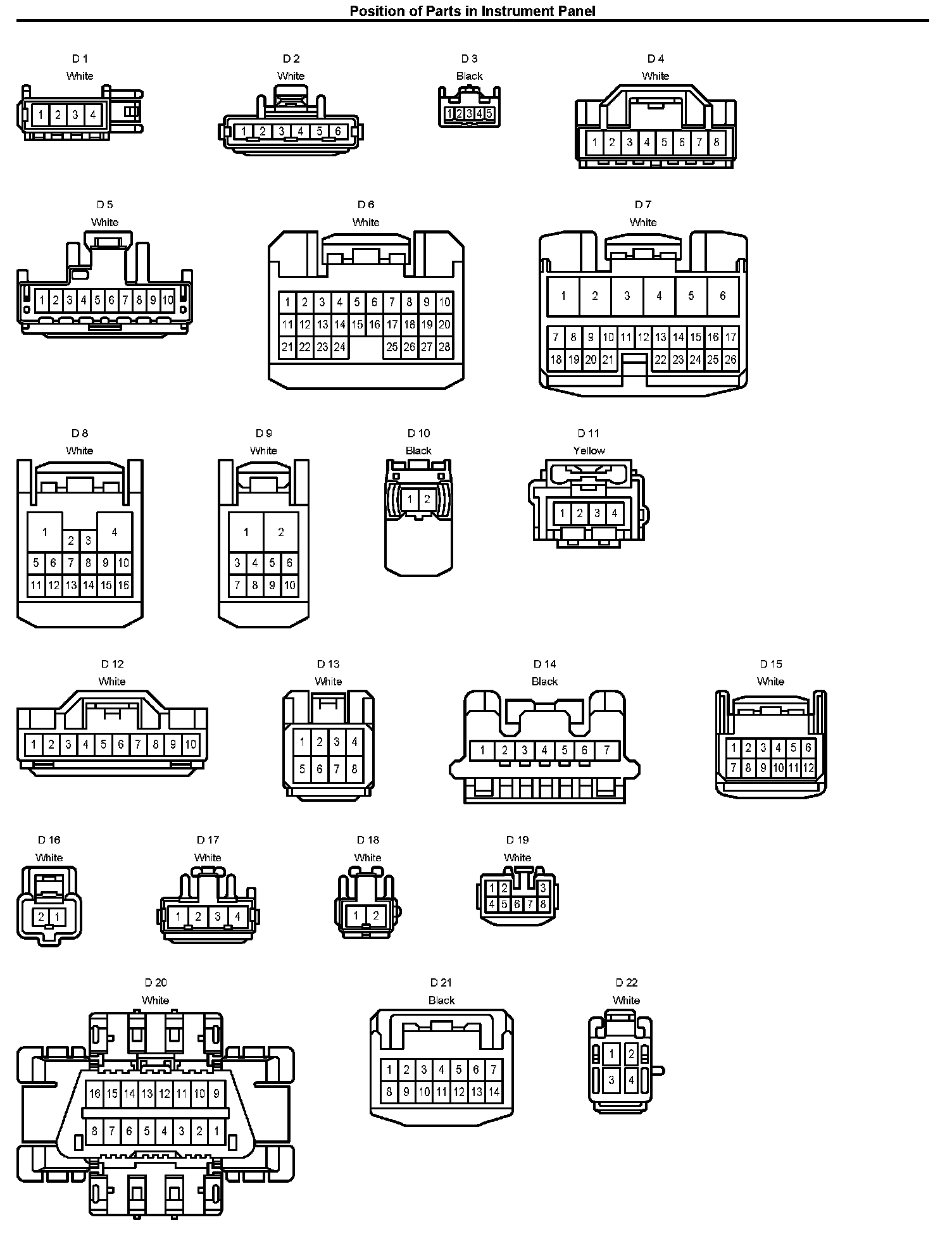

Connector Views:



Position Of Parts In Instrument Panel:

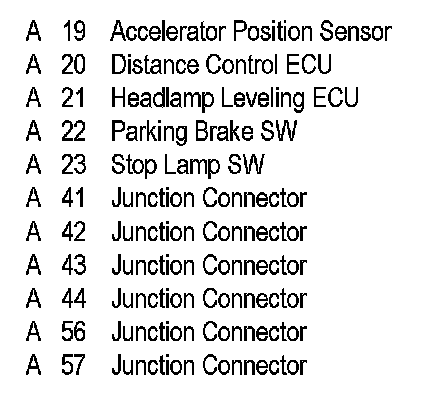

Legend:

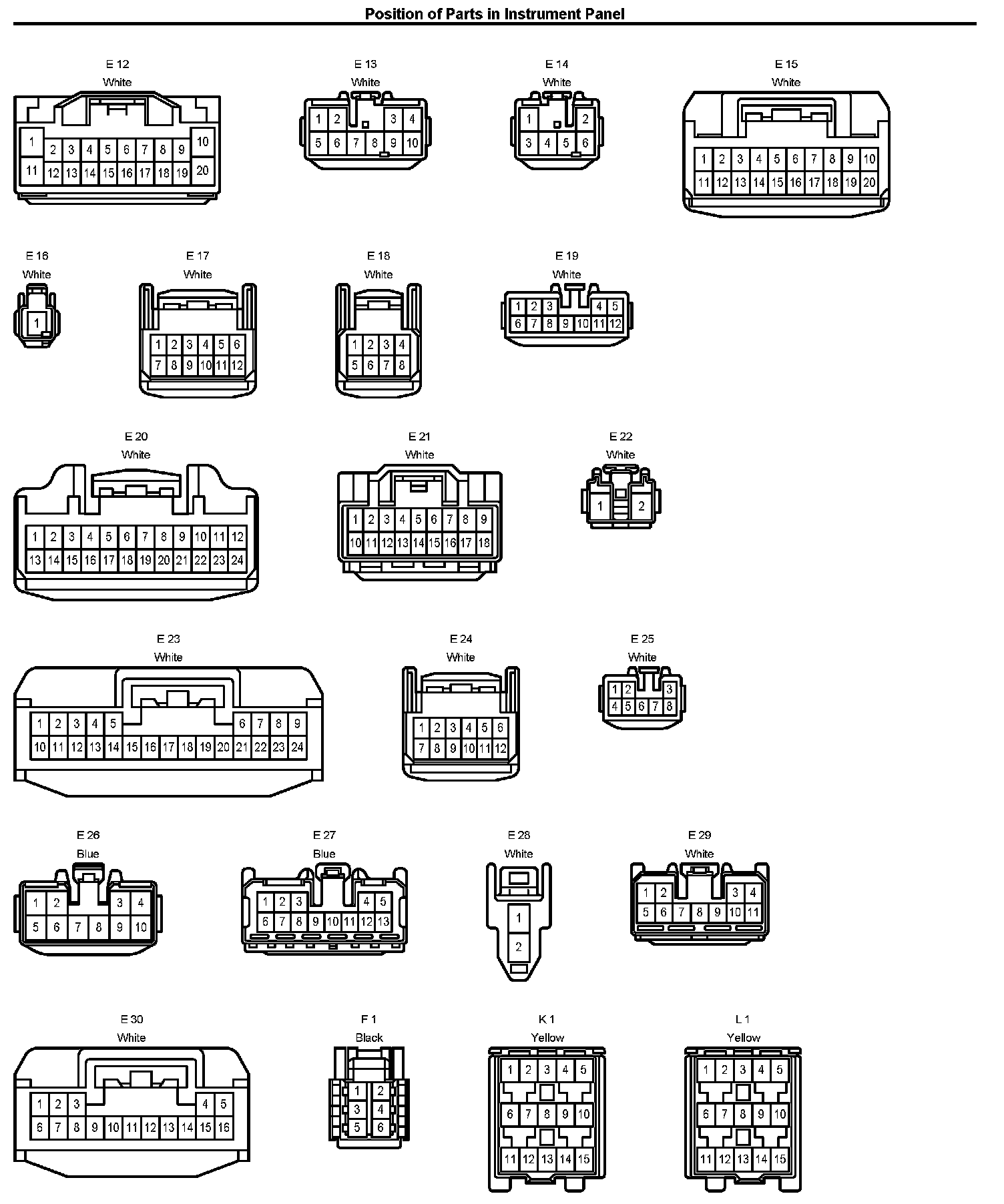

Connector Views:



Connector Views:



Position Of Parts In Instrument Panel:



Legend:

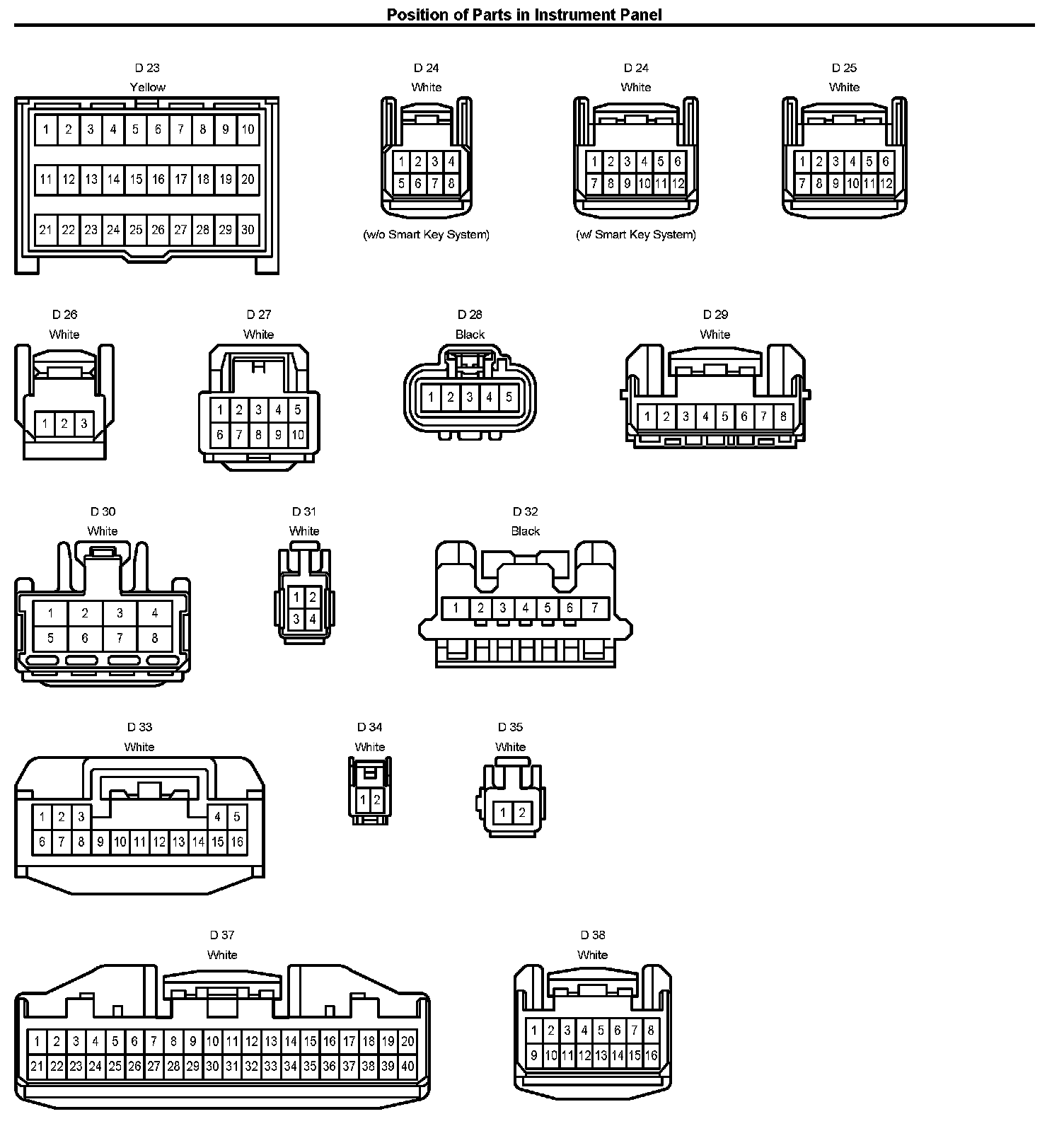

Connector Views:



Connector Views:
