Reassembly

AXLE: FRONT AXLE HUB: REASSEMBLY

REASSEMBLY

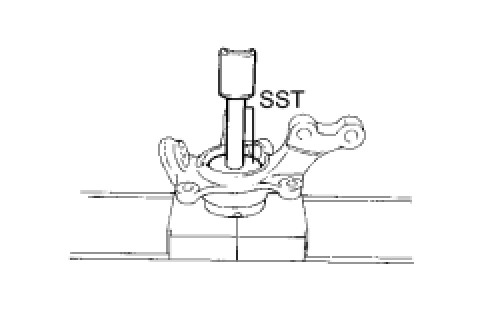

1. INSTALL FRONT AXLE HUB LH BEARING





(a) Using SST and a press, install a new front axle hub LH bearing to the steering knuckle LH.
SST: 09950-60020
09951-00810
SST: 09950-70010
09951-07100
2. INSTALL LOWER BALL JOINT ASSEMBLY FRONT LH Installation
3. INSTALL DISC BRAKE DUST COVER FRONT LH
(a) Place the disc brake dust cover front LH and use a torx wrench (T30) to torque the 4 bolts.
Torque: 8.3 Nm (85 kgf-cm, 73 in-lbf)

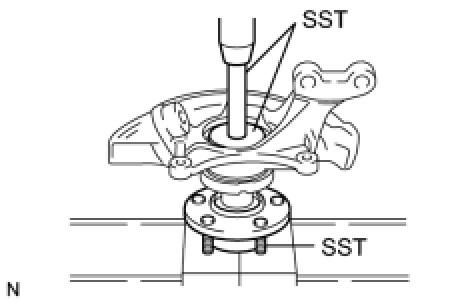

4. INSTALL FRONT AXLE HUB SUB-ASSEMBLY LH





(a) Using SST and a press, install the front axle hub sub-assembly LH.
SST: 09608-32010
SST: 09950-60020
09951-00810
SST: 09950-70010
09951-07100

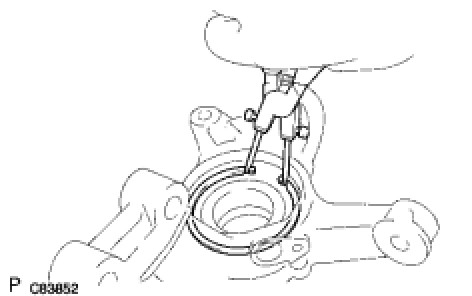

5. INSTALL FRONT AXLE HUB LH HOLE SNAP RING





(a) Using snap ring pliers, install a new front axle hub LH hole snap ring.

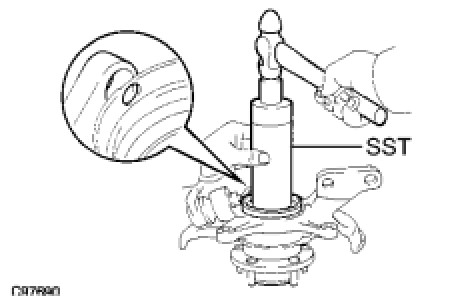

6. INSTALL FRONT WHEEL BEARING DUST DEFLECTOR NO.1 LH





(a) Using SST and a hammer, install a new bearing dust deflector No.1 LH.
SST: 09316-60011
09316-00011
09316-00031
SST: 09608-32010

HINT: Align the hole for the speed sensor in the bearing dust deflector No.1 LH with the steering knuckle.
