Installation

AXLE: FRONT AXLE HUB BOLT: INSTALLATION

INSTALLATION

1. INSTALL FRONT AXLE LH HUB BOLT

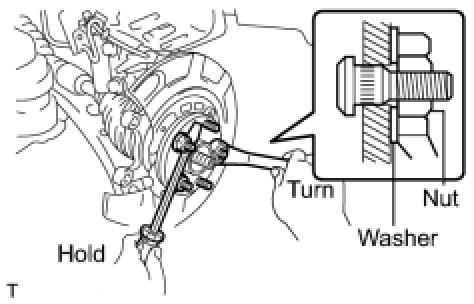

(a) Install a washer and nut to a new front axle LH hub bolt as shown in the illustration.
(b) Using SST and a screwdriver or an equivalent hold the front axle, install a new hub bolt by tightening the nut.
2. INSTALL FRONT DISC
3. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY LH Installation
4. INSTALL FRONT WHEEL
Torque: 103 Nm (1.050 kgf-cm, 76 ft-lbf)
