Yaw Rate Sensor Communication Stop Mode

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: Yaw Rate Sensor Communication Stop Mode

Yaw Rate Sensor Communication Stop Mode

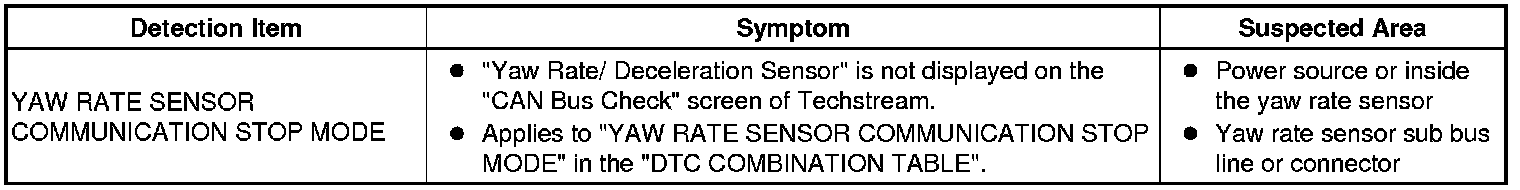

DESCRIPTION

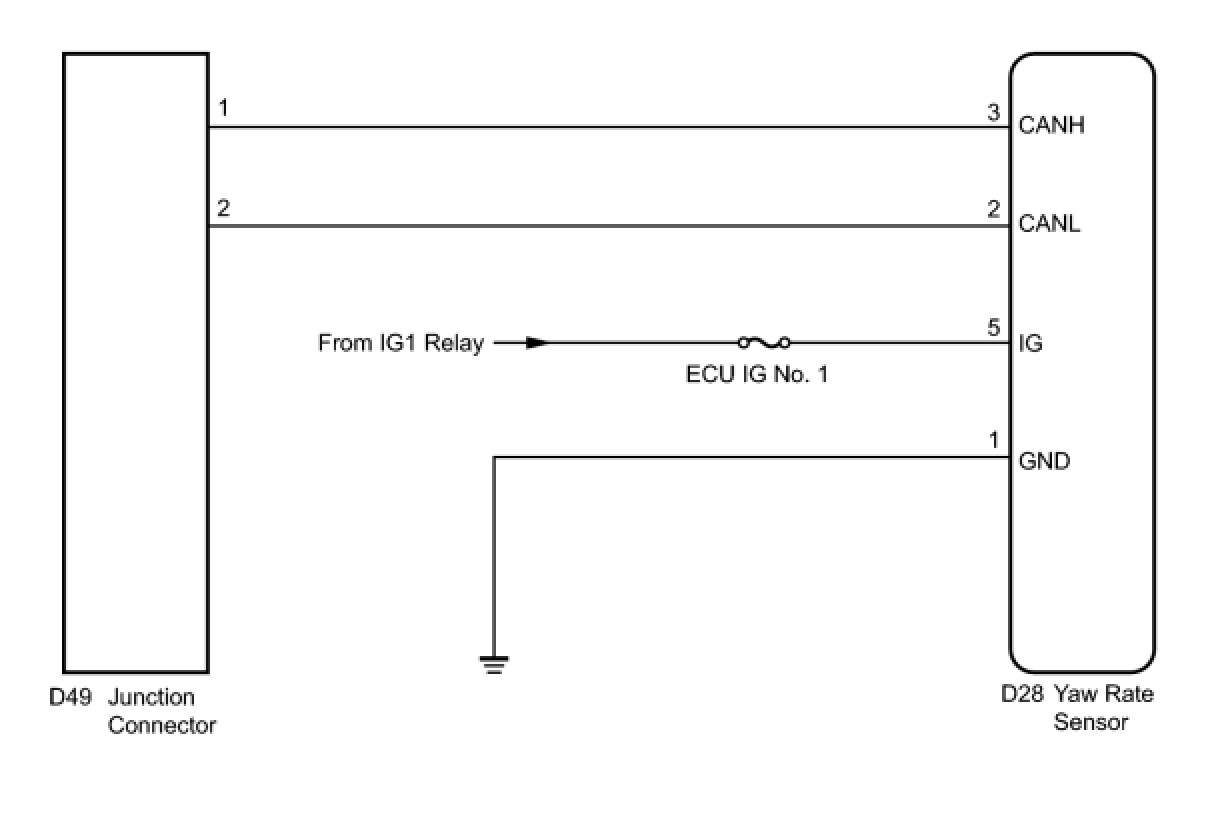

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK CAN BUS WIRE (YAW RATE SENSOR SUB BUS LINE DISCONNECTION)





(a) Turn the ignition switch off.

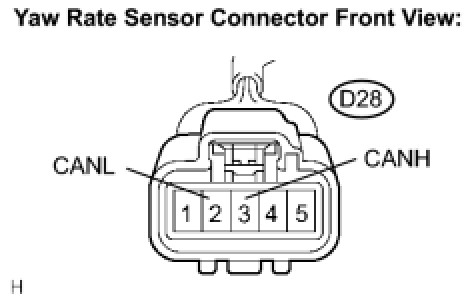

(b) Disconnect the yaw rate sensor connector (D28).
(c) Measure the resistance according to the value(s) in the table below.
Resistance:






NG -- REPAIR OR REPLACE YAW RATE SENSOR SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)
OK -- Continue to next step.

2. CHECK WIRE HARNESS (IG, GND)

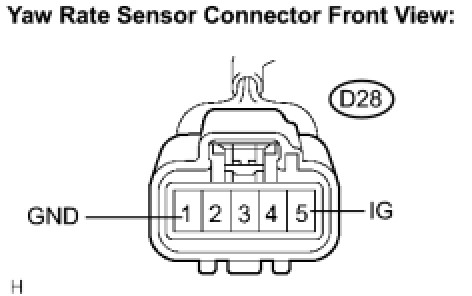

(a) Measure the resistance and voltage according to the value(s) in the table below.

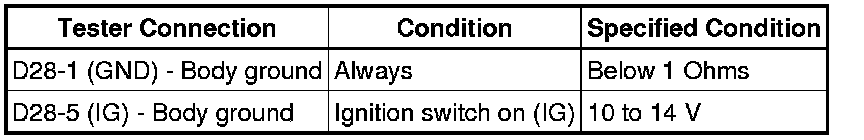

Resistance and voltage:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE YAW RATE SENSOR
