Installation

2GR-FE EMISSION CONTROL: AIR FUEL RATIO SENSOR: INSTALLATION

INSTALLATION

1. INSTALL AIR FUEL RATIO SENSOR

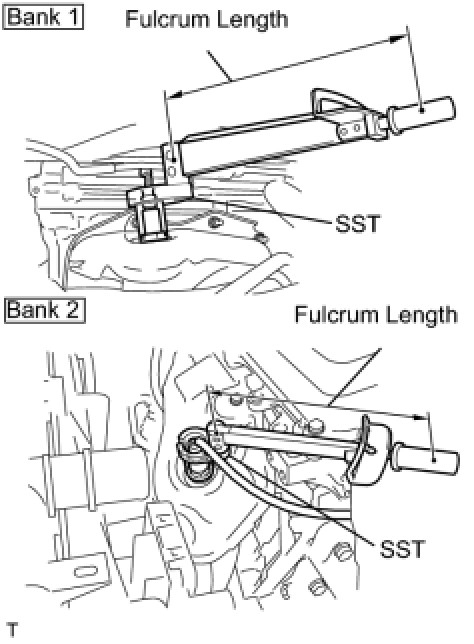

(a) Install the 2 air fuel ratio sensors to the front pipe assembly.
SST: 09224-00010
Torque: 44 Nm (449 kgf-cm, 32 ft-lbf)
Torque: 40 Nm (408 kgf-cm, 30 ft-lbf)

NOTE: Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).

(b) Connect the 2 air fuel ratio sensor connectors.
