Removal

2GR-FE EMISSION CONTROL: CANISTER: REMOVAL

REMOVAL

1. PREVENT GASOLINE FROM SPILLING OUT
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
3. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
4. REMOVE REAR FLOOR SERVICE HOLE COVER Removal
5. SEPARATE FUEL PUMP TUBE SUB-ASSEMBLY Removal
6. DRAIN FUEL
7. REMOVE EXHAUST PIPE ASSEMBLY CENTER
8. DISCONNECT PARKING BRAKE CABLE ASSEMBLY NO.2 Removal
9. DISCONNECT PARKING BRAKE CABLE ASSEMBLY NO.3 Removal
10. REMOVE FUEL TANK ASSEMBLY Removal
11. REMOVE CHARCOAL CANISTER ASSEMBLY

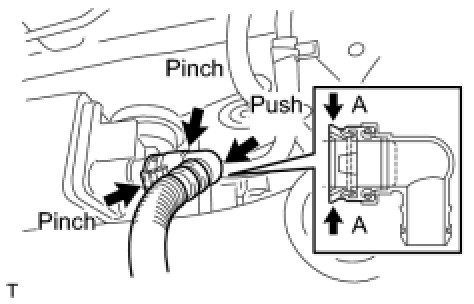

(a) Disconnect the fuel tank vent hose from the charcoal canister.
(1) Push the connector deep inside.
(2) Pinch portion A.
(3) Pull out the connector.





(b) Disconnect the charcoal canister filter sub-assembly from the charcoal canister.
(1) Push the connector deep inside.
(2) Pinch portion A.
(3) Pull out the connector.
(c) Disconnect the vapor pressure sensor connector.
(d) Disconnect the wire harness clamp.
(e) Disconnect the purge line hose from the charcoal canister.





(f) Remove the 2 bolts, clip and charcoal canister.
