Fuel Delivery and Air Induction: Description and Operation

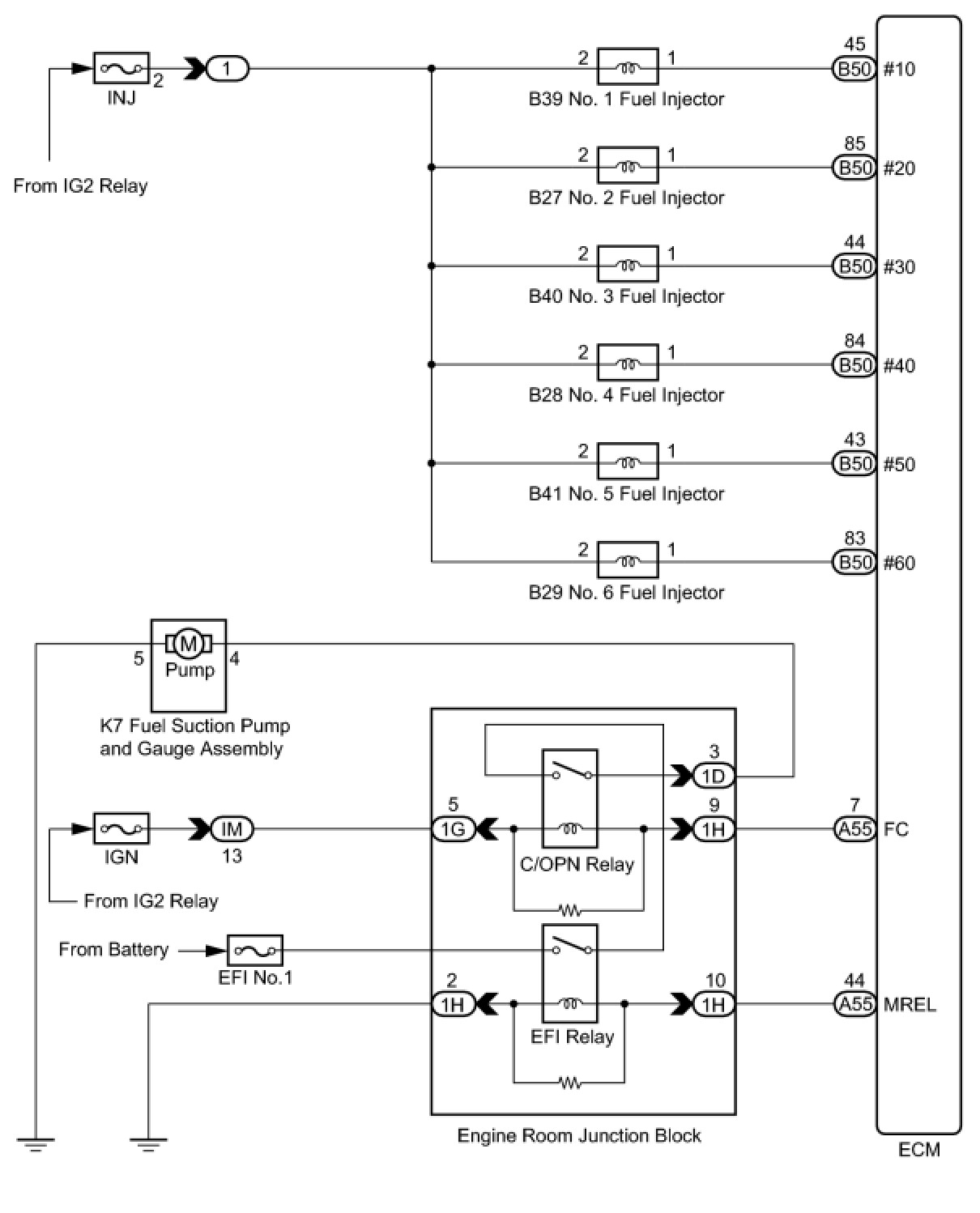

2GR-FE FUEL: FUEL SYSTEM: SYSTEM DIAGRAM
SYSTEM DIAGRAM
