Engine Control System - SFI System

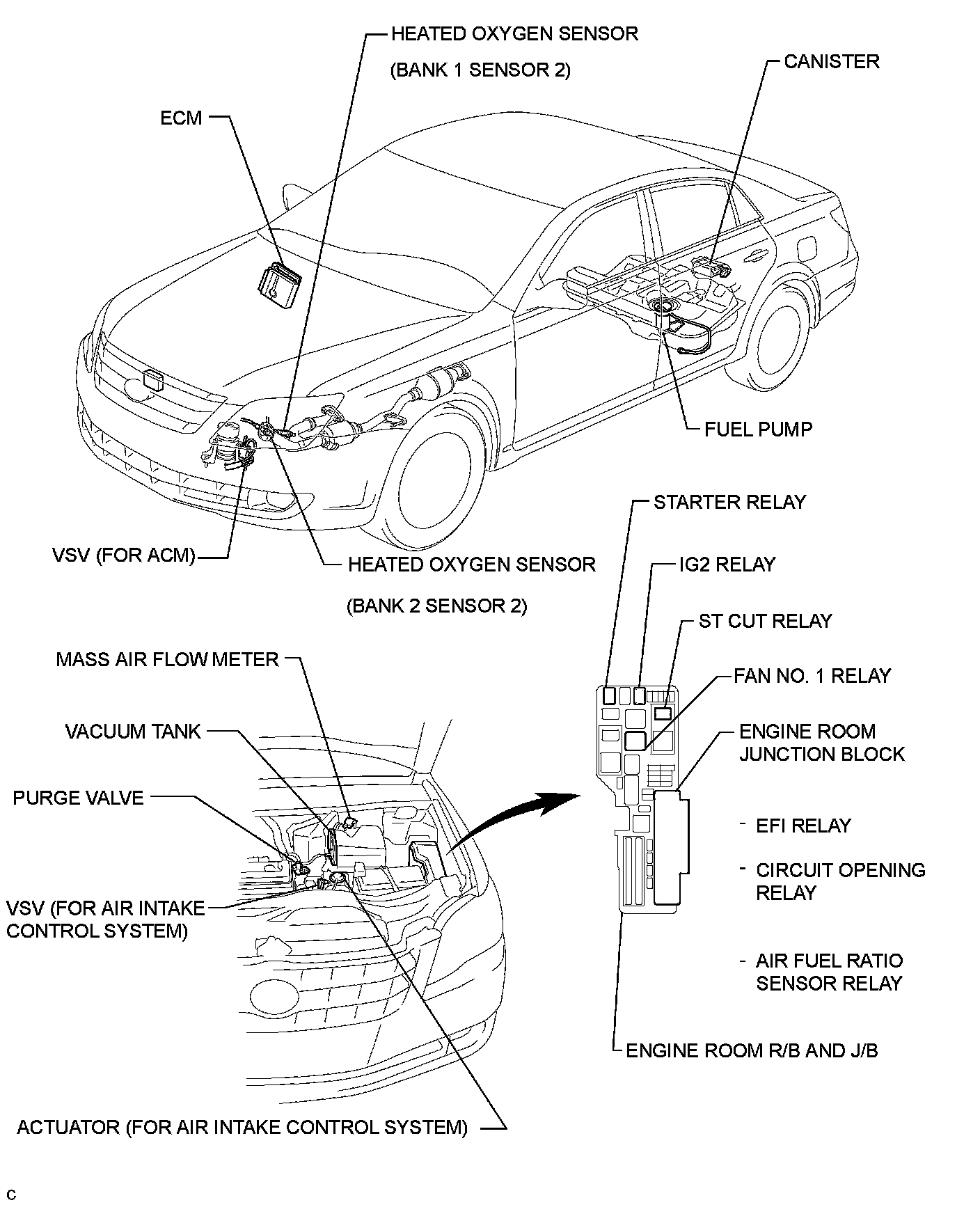

2GR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
