Engine Switch (w/ Smart Key System)

2GR-FE STARTING: ENGINE SWITCH (w/ Smart Key System): INSPECTION

INSPECTION

1. ENGINE SWITCH

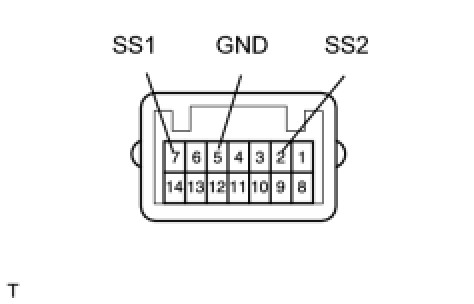

(a) Using an ohmmeter, measure the engine switch resistance.

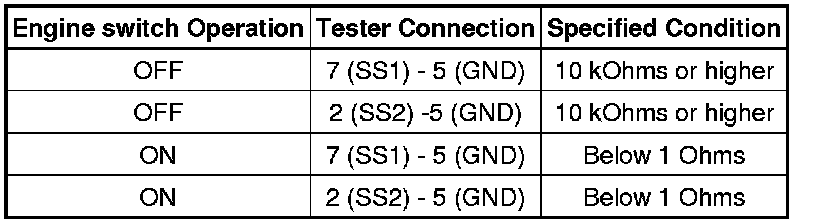

Resistance:





If the result is not as specified, replace the switch assembly.
